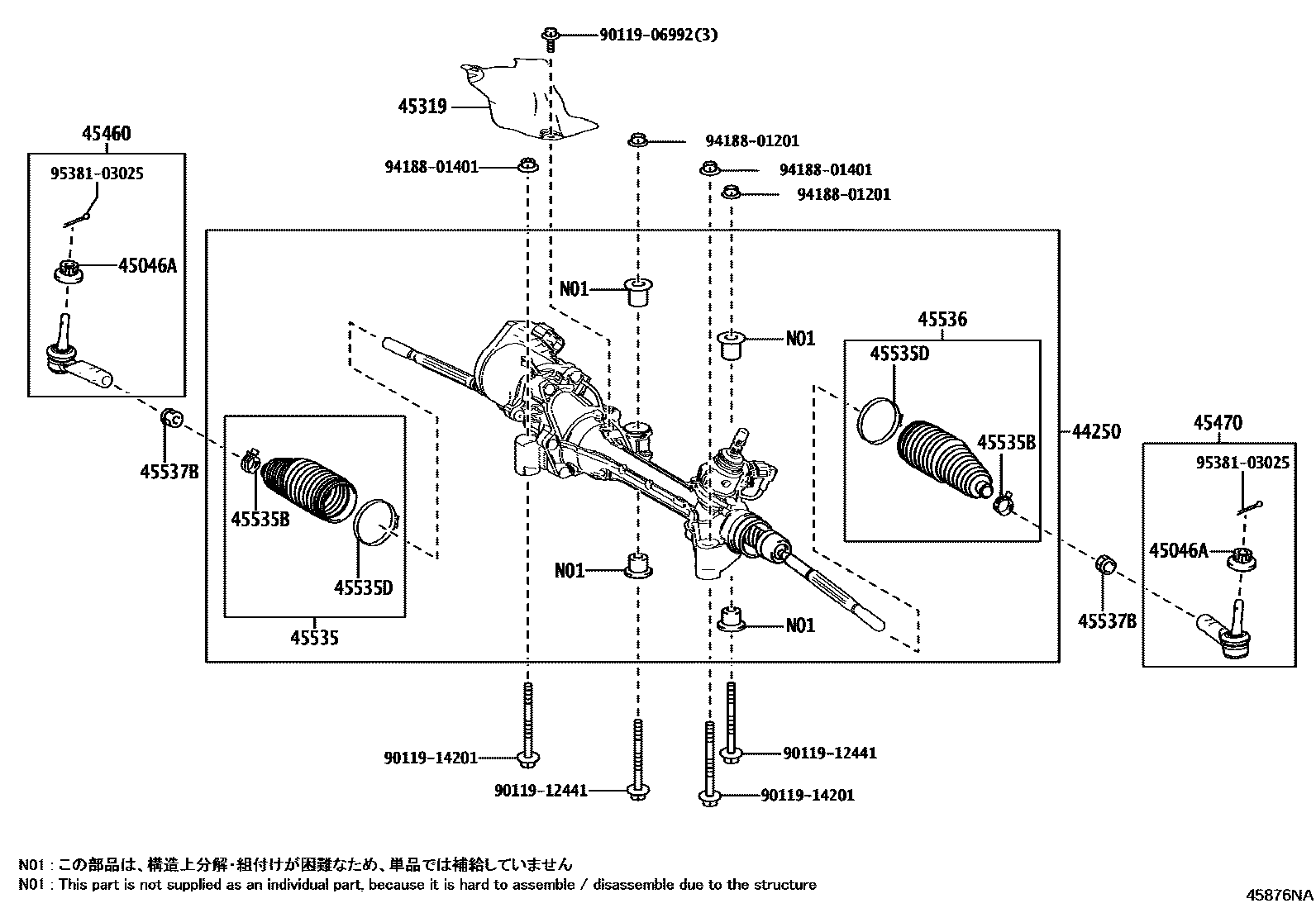

Toyota CROWN — FRONT STEERING GEAR & LINK

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-30350iAZSH38202406

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12015iAZSH38¥190202406

45319INSULATOR, STEERING GEAR HEAT

main45319-42020iAZSH38202406

45460ROD ASSY, TIE, RH

main45460-49095iAZSH38¥2,330202406

45470ROD ASSY, TIE, LH

main45460-49095iAZSH38¥2,330202406

45535BOOT, STEERING RACK, NO.1

main45535-09740iAZSH38202406

45535BCLIP(FOR STEERING RACK BOOT)

main45537-02020iAZSH38202406

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-0T010iAZSH38¥290202406

45536BOOT, STEERING RACK, NO.2

main45535-09740iAZSH38202406

45537BNUT, RACK END LOCK

main90178-16001iAZSH38¥120202406

9011906992

main90119-06992¥60

9011912441

main90119-12441¥360

9011914201

main90119-14201¥430

9418801201

main94188-01201¥160

9418801401

main94188-01401¥190

9538103025

main95381-03025¥130

16 parts on this diagram · 1 diagram in section
