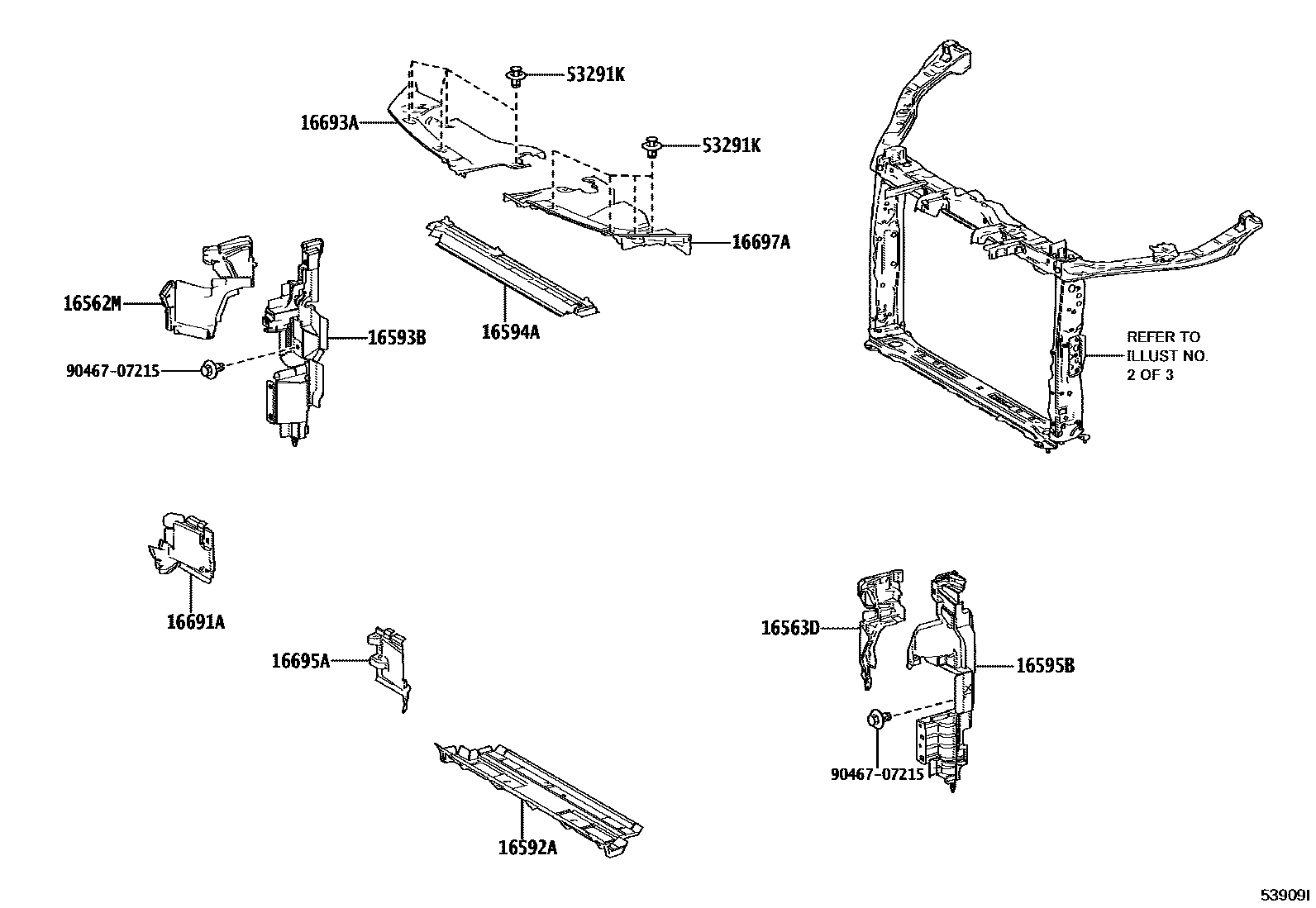

Toyota CROWN — FRONT FENDER APRON & DASH PANEL

0001 1AIR GUIDE 0002 1RADIATOR SUPPORT & FENDER APR0003 1DASH PANEL

16562MSEAL, RADIATOR TO SUPPORT, NO.2

main16562-25080iA25..AZSH38¥1,730202406

16563DSEAL, RADIATOR TO SUPPORT, NO.3

main16563-25060iA25..AZSH38¥1,650202406

16592AGUIDE, RADIATOR AIR, NO.3

main16592-25090iA25..AZSH38¥3,850202406

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-25480iA25..AZSH38202406

16594AGUIDE, RADIATOR AIR, NO.2

main16594-25020iA25..AZSH38¥2,380202406-202501

main16594-25050iA25..AZSH38202501

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-25450iA25..AZSH38202406

16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH

main16691-25220iA25..AZSH38¥1,330202406

16693APLATE, RADIATOR SIDE AIR GUIDE, REAR RH

main16693-25060iA25..AZSH38¥3,940202406

16695APLATE, RADIATOR SIDE AIR GUIDE, FRONT LH

main16695-25230iA25..AZSH38¥1,330202406

16697APLATE, RADIATOR SIDE AIR GUIDE, REAR LH

main16697-25060iA25..AZSH38¥4,480202406

53291KCLIP, RADIATOR COVER PLATE

main90467-10216iAZSH38¥100202406

9046707215

main90467-07215¥80

12 parts on this diagram · 3 diagrams in section
