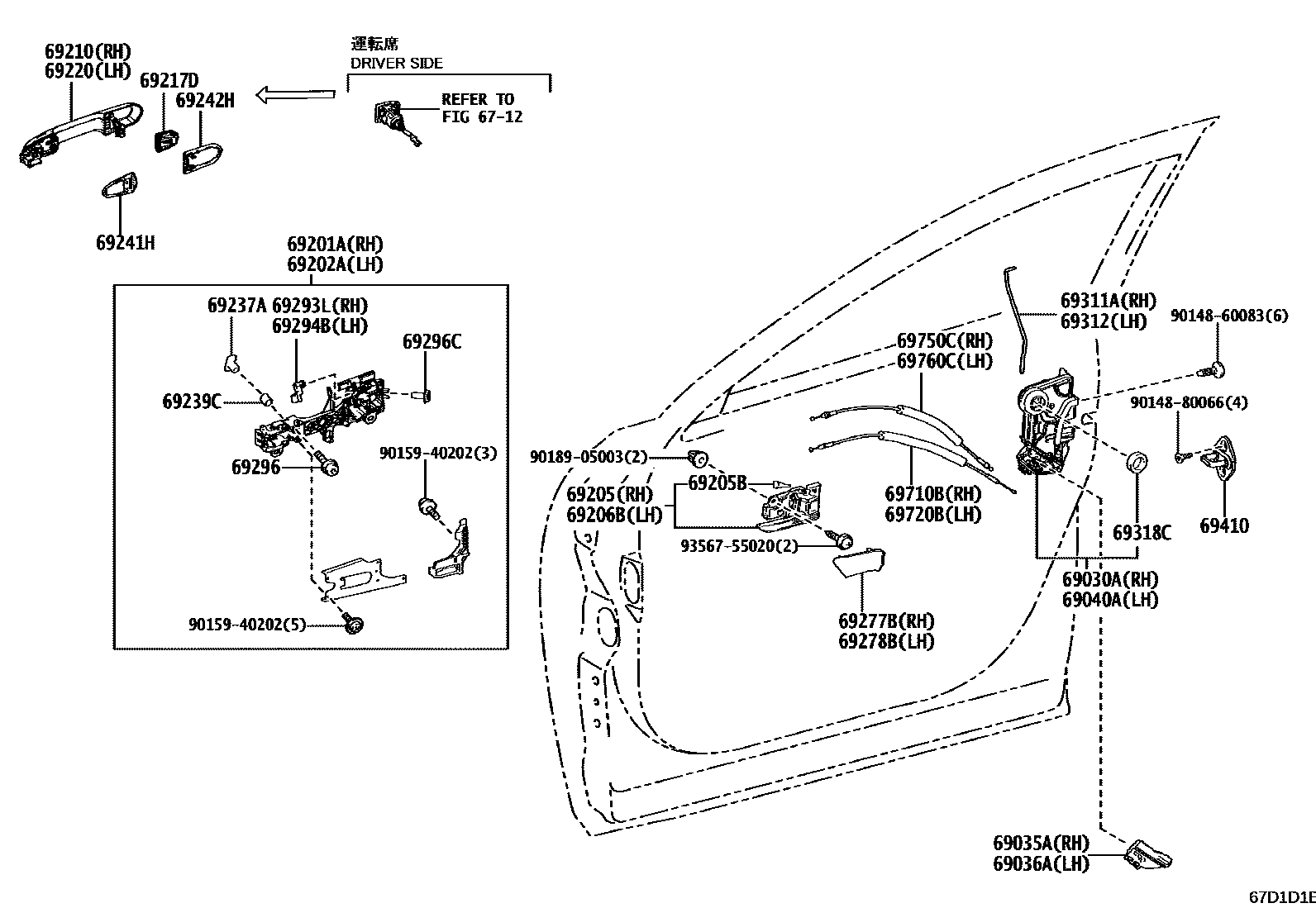

Toyota CROWN — FRONT DOOR LOCK & HANDLE
6712
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM2#,4#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM2#,4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
BLACK,202
PRECIOUS WHITE PEARL,090 ,2XW ,M26
PRECIOUS WHITE PEARL,090
MASSIVE GRAY,1L6 ,2XY ,M22
MASSIVE GRAY,1L6
EMOTIONAL RED 3,2ZR ,3U9 ,M24
EMOTIONAL RED 3,3U9
PRECIOUS BRONZE,2XZ ,4Y6 ,M27
PRECIOUS BRONZE,4Y6
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
BLACK,202
PRECIOUS WHITE PEARL,090 ,2XW ,M26
PRECIOUS WHITE PEARL,090
MASSIVE GRAY,1L6 ,2XY ,M22
MASSIVE GRAY,1L6
EMOTIONAL RED 3,2ZR ,3U9 ,M24
EMOTIONAL RED 3,3U9
PRECIOUS BRONZE,2XZ ,4Y6 ,M27
PRECIOUS BRONZE,4Y6
69237ANUT, FRONT DOOR HANDLE
69239CBUSH, FRONT DOOR HANDLE
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242HPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
BLACK,TRIM2#,4#
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
BLACK,TRIM2#,4#
69293LSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69296SCREW, DOOR INSIDE HANDLE
69296CSCREW, DOOR INSIDE HANDLE
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
9014860083
9014880066
9015940202
9018905003
9356755020
36 parts on this diagram · 1 diagram in section
