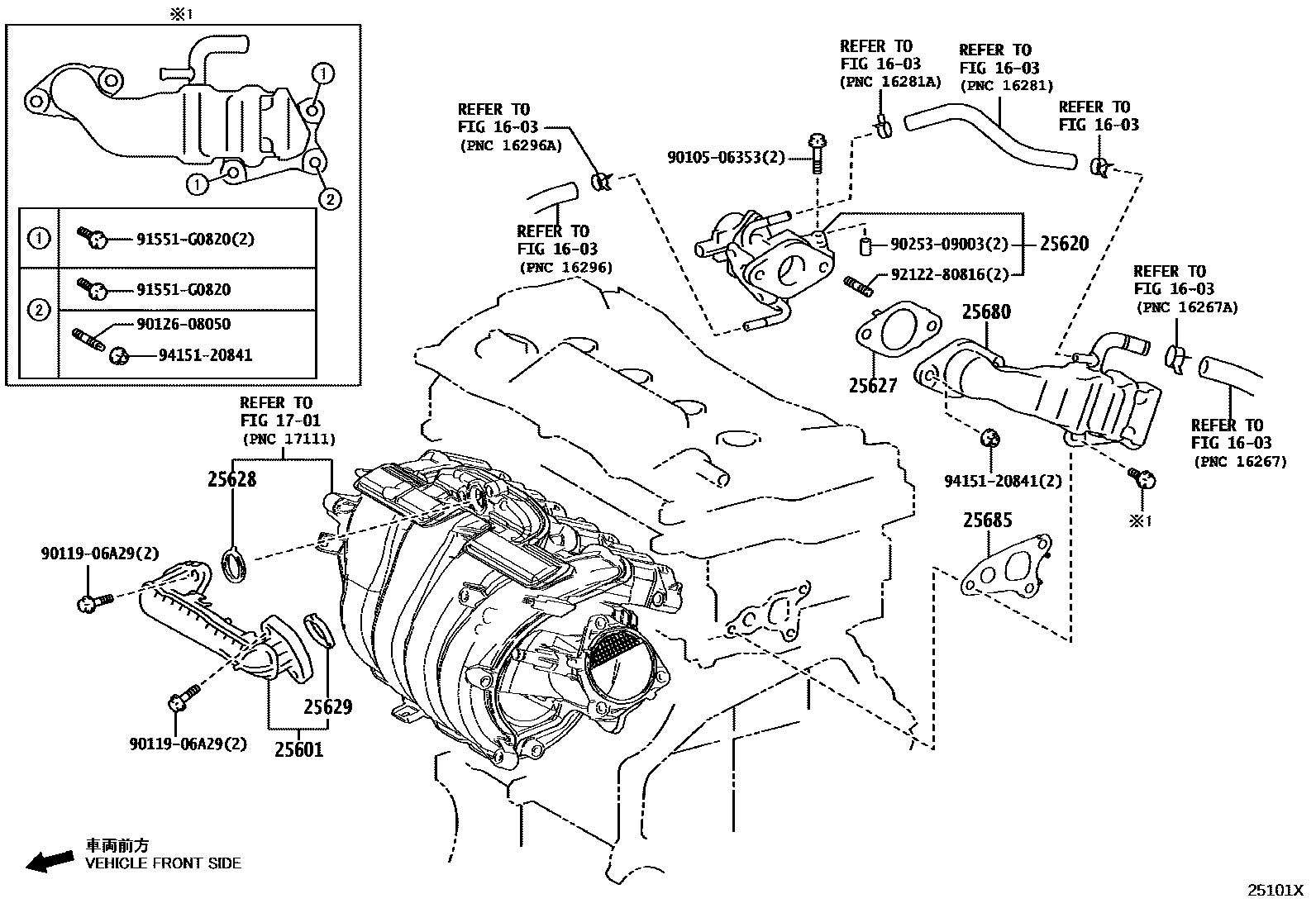

Toyota CROWN — EXHAUST GAS RECIRCULATION SYSTEM

1603

1701

25601PIPE SUB-ASSY, EGR, NO.1

main25601-25030iA25..AZSH38¥3,140202406

25620VALVE ASSY, EGR

main25620-24050iA25..AZSH38¥18,400202406

25627GASKET, EGR VALVE

main25627-24010iA25..AZSH38¥270202406

25628GASKET, EGR INLET

main25628-25010iA25..AZSH38¥340202406

25629GASKET, EGR VALVE ADAPTER

main25629-25010iA25..AZSH38¥340202406

25680COOLER ASSY, EGR

main25680-25060iA25..AZSH38¥16,700202406

25685GASKET, EGR COOLER, NO.1

main25685-25011iA25..AZSH38¥270202406

9010506353

main90105-06353¥60

9011906A29

main90119-06A29¥60

9012608050

main90126-08050¥80

9025309003

main90253-09003¥50

91551G0820

main91551-G0820¥80

9212280816

main92122-80816¥70

9415120841

main94151-20841¥80

16 parts on this diagram · 1 diagram in section
