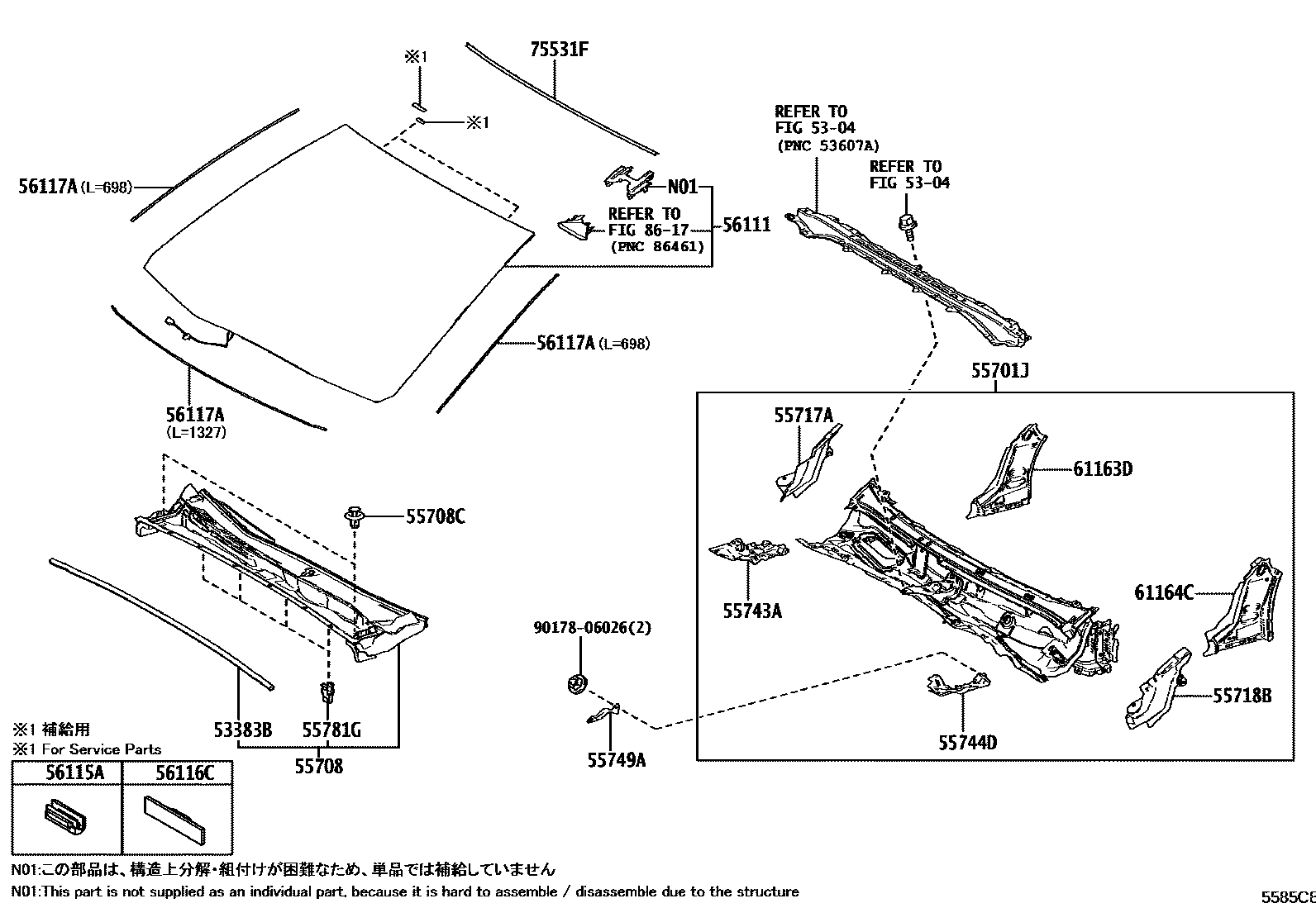

Toyota CROWN — COWL PANEL & WINDSHIELD GLASS

5304

53383BSEAL, HOOD TO COWL TOP

main53383-30290iAZSH38¥640202406

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-30370iAZSH38202406

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-30280iAZSH38202406

55708CCLIP, COWL TOP VENTILATOR LOUVER

main90467-09242iAZSH38¥120202406

55717APANEL, COWL TOP SIDE, INNER RH

main55717-30120iAZSH38¥2,080202406

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-30140iAZSH38¥2,100202406

55743AEXTENSION, COWL TO COWL SIDE, RH

main55743-30140iAZSH38¥1,390202406

55744DEXTENSION, COWL TO COWL SIDE, LH

main55744-30150iAZSH38¥1,470202406

55749ABRACE, COWL TOP INNER TO PILLAR, LH

main55749-30080iAZSH38202406

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-09241iAZSH38¥80202406

56111GLASS, WINDSHIELD

main56101-3F926iAZSH38..M202406

main56101-3F953iAZSH38..G202406

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30110iAZSH38¥130202406

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iAZSH38¥120202406

56117ADAM, WINDOW GLASS ADHESIVE

main56117-64010iAZSH38¥1,480202406

*D,L=1327 OR 698

61163DPILLAR, FRONT BODY, LOWER INNER RH

main61163-30100iAZSH38¥11,800202406

61164CPILLAR, FRONT BODY, LOWER INNER LH

main61164-30100iAZSH38¥11,800202406

75531FMOULDING, WINDSHIELD, OUTSIDE UPPER

main75531-30410iAZSH38¥1,000202406

8617

9017806026

main90178-06026¥80

20 parts on this diagram · 1 diagram in section
