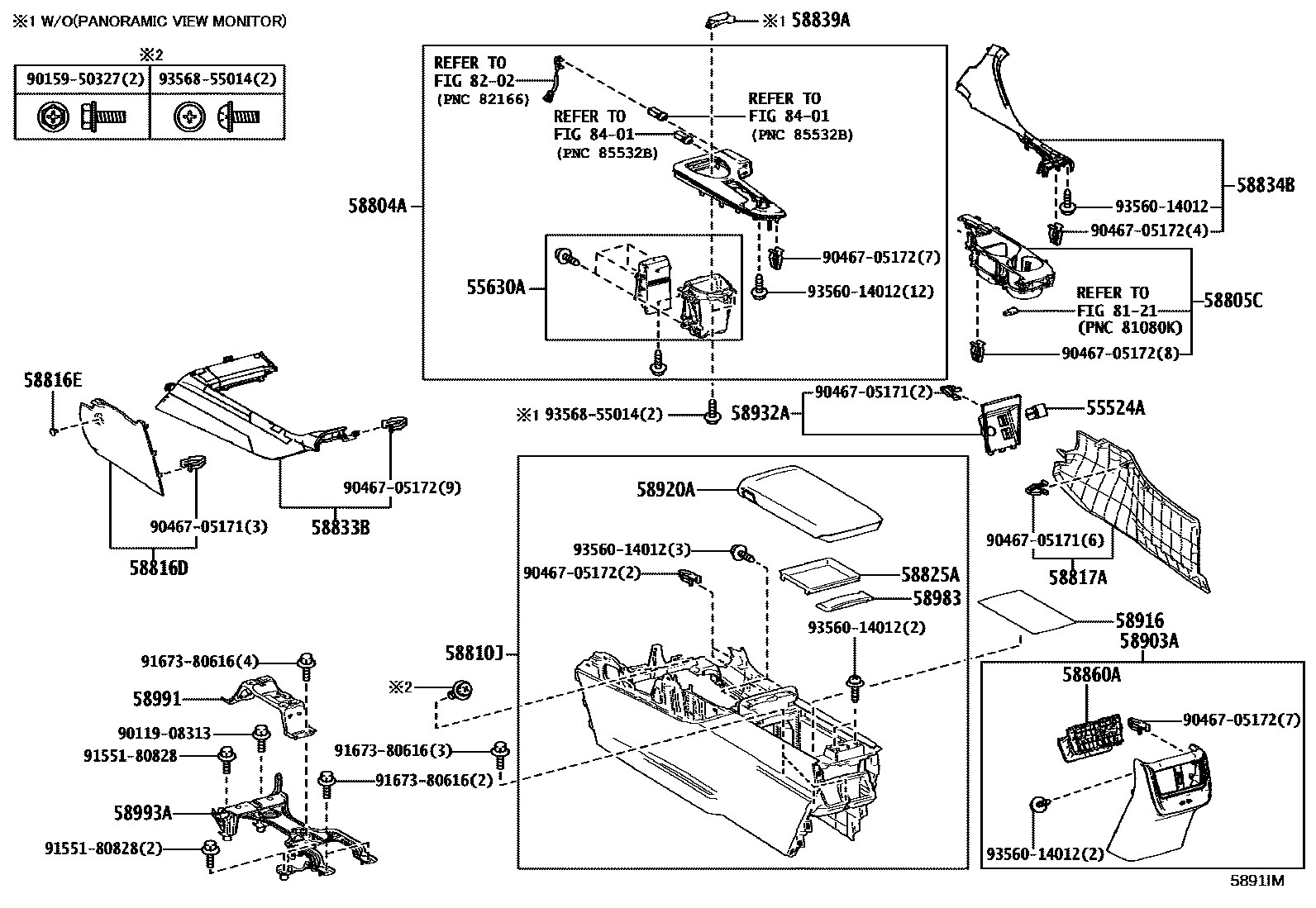

Toyota CROWN — CONSOLE BOX & BRACKET
55524ACOVER, SWITCH BASE HOLE
BLACK
55630AHOLDER, REAR CONSOLE BOX, CUP
58804APANEL SUB-ASSY, CONSOLE, UPPER
58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR
58810JBOX ASSY, CONSOLE
BLACK/ SATIN SILVER,TRIM2#
BLACK/SADDLE TAN,TRIM4#
58816DINSERT, CONSOLE BOX, FRONT NO.1
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#,4#
58816ECLIP, CONSOLE BOX INSERT, FRONT
58817AINSERT, CONSOLE BOX, FRONT NO.2
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#,4#
58825APOCKET, CONSOLE BOX
58833BGARNISH, CONSOLE UPPER PANEL, NO.1
BLACK,TRIM2#
SADDLE TAN,TRIM4#
58834BGARNISH, CONSOLE UPPER PANEL, NO.2
BLACK,TRIM2#
SADDLE TAN,TRIM4#
58839ACOVER, CONSOLE BOX HOLE
58860AREGISTER ASSY, CONSOLE BOX
58903APANEL SUB-ASSY, CONSOLE REAR END
BLACK/DK.GRAY,TRIM0#,2#,4#
BLACK/DK.GRAY,TRIM2#,4#
58916MAT, BOX BOTTOM
58920AARMREST ASSY, REAR CONSOLE
BLACK/SATIN SILVER,TRIM2#
SADDLE TAN/SATIN SILVER,TRIM4#
58932AGARNISH, REAR CONSOLE BOX
58983RETAINER, UPPER CONSOLE
58991BRACKET, CONSOLE BOX MOUNTING, UPPER
58993ABRACKET, CONSOLE BOX MOUNTING, LOWER
8121
8202
8401
9011908313
9015950327
9046705171
9046705172
9155180828
9167380616
9356014012
9356855014
31 parts on this diagram · 1 diagram in section
