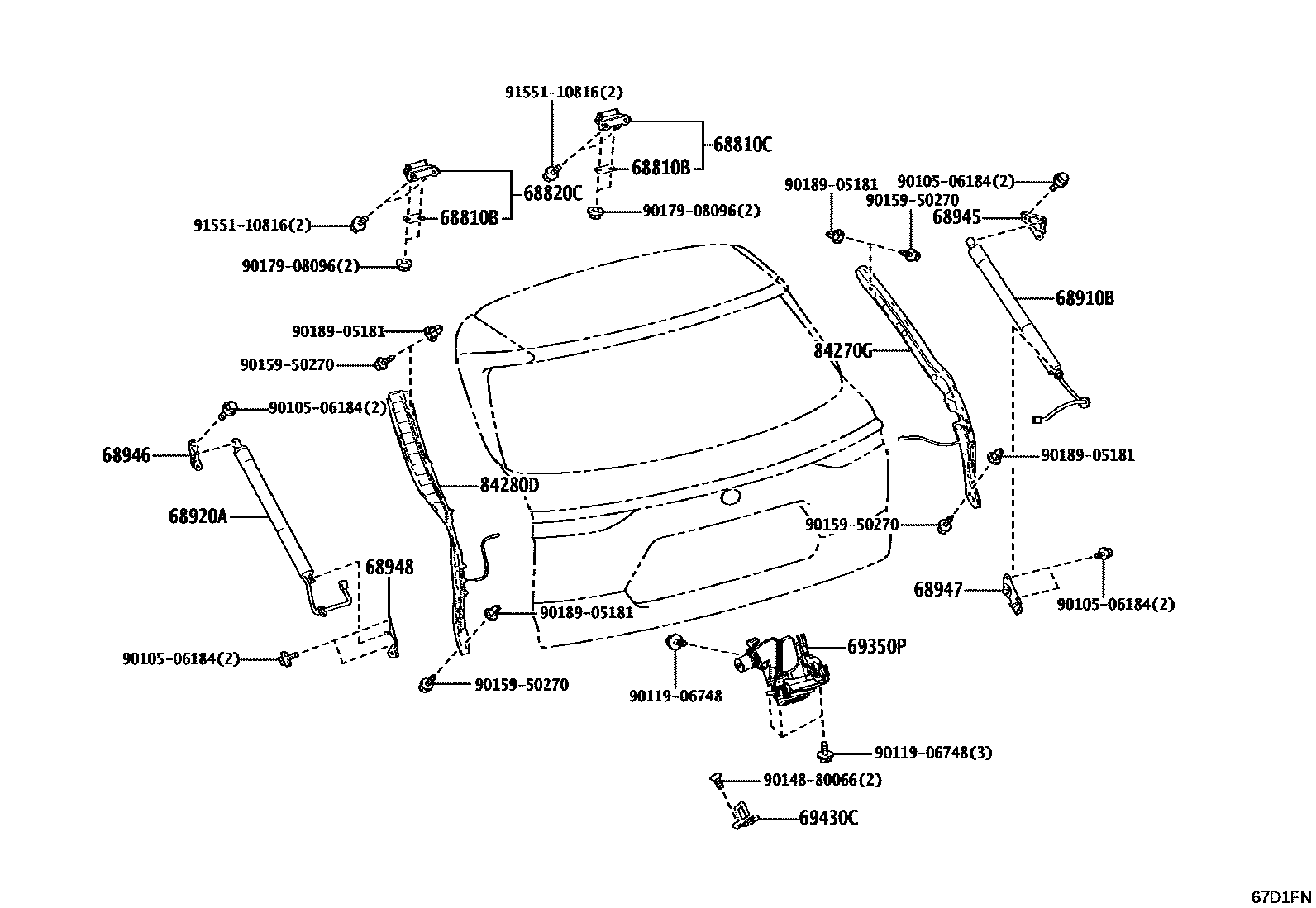

Toyota CROWN — BACK DOOR LOCK & HANDLE

68810BPAD, BACK DOOR HINGE

main68838-48140iAZSH38¥200202406

PAD T=1.0

main68838-48150iAZSH38¥270202406

PAD T=1.5

main68838-48160iAZSH38¥360202406

PAD T=2.0

68810CHINGE ASSY, BACK DOOR, RH

main68810-48220iAZSH38¥2,310202406

68820CHINGE ASSY, BACK DOOR, LH

main68810-48220iAZSH38¥2,310202406

68910BUNIT ASSY, POWER BACK DOOR, RH

main68910-30020iAZSH38¥28,300202406

68920AUNIT ASSY, POWER BACK DOOR, LH

main68920-30020iAZSH38¥28,300202406

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-30030iAZSH38¥660202406

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-30030iAZSH38¥660202406

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-30020iAZSH38¥710202406

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-30020iAZSH38¥710202406

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-30010iAZSH38¥14,900202406

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-48030iAZSH38¥1,120202406

84270GSENSOR ASSY, POWER BACK DOOR, RH

main84270-30030iAZSH38¥14,700202406

84280DSENSOR ASSY, POWER BACK DOOR, LH

main84280-30030iAZSH38¥14,700202406

9010506184

main90105-06184¥70

9011906748

main90119-06748¥110

9014880066

main90148-80066¥60

9015950270

main90159-50270¥70

9017908096

main90179-08096¥110

9018905181

main90189-05181¥70

9155110816

main91551-10816¥80

20 parts on this diagram · 1 diagram in section
