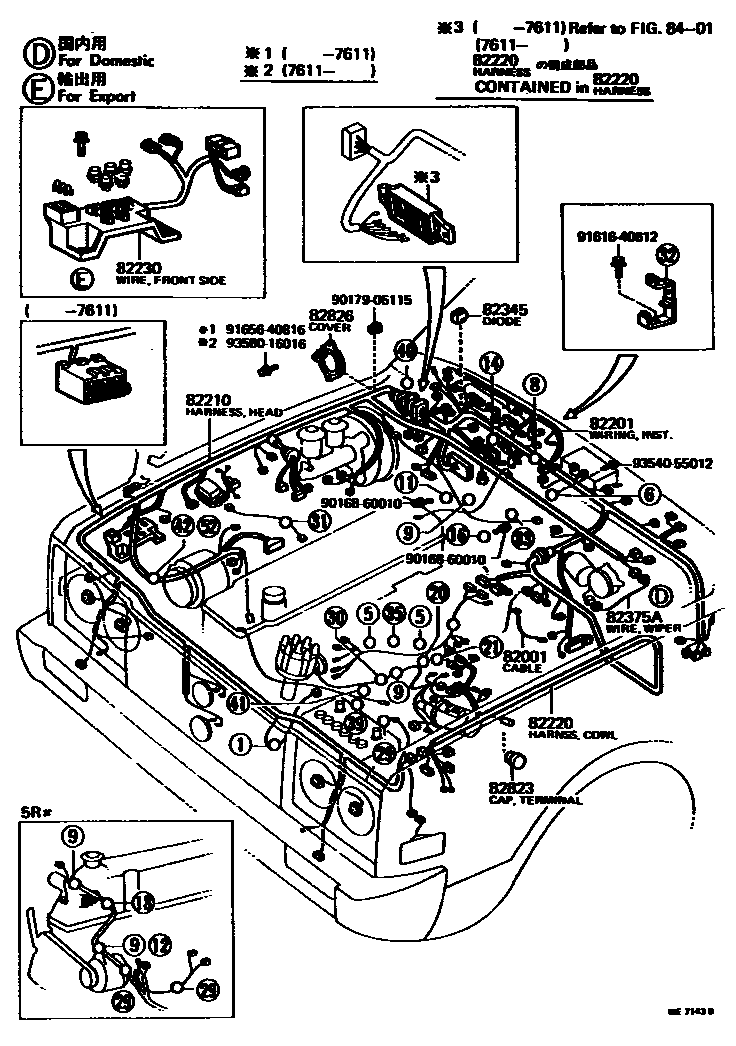

Toyota CROWN — WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

82001CABLE, BOND, NO.1

main82031-22050iMS8#,95197410-197505

L=500,CONDENSER-ENGINE

main82031-22051iMS8#,95197505-197611

L=500,CONDENSER-ENGINE

main82031-30140iMS8#,95,RS80197510-197908

IGNITION COIL-DISTRIBUTOR

main90980-07005iMS8#,95,RS80197609-197702

L=380,TRANSMISSION

main90980-07021iMS85,95,RS80¥1,730197410-197501

L=280,UNDER COVER-TIRE APRON

main90980-07053iMS8#,95,RS80..MTM¥1,110197604-197611

L=350,TRANSMISSION

sub90980-07054

main90980-07061iMS8#,95,RS80¥540197501-197908

L=300,UNDER COVER-TIRE APRON

main90980-07097iMS8#,95,RS80¥680197410-197908

L=270,HOOD-COWL PANEL

sub90980-07282¥530

main90980-07098iMS8#,95,RS80¥660197410-197908

L=270,HOOD HINGE-COWL PANEL

main90980-07104iMS8#,95,RS80¥2,090197510-197908

L=630,HOOD-COWL-ENGINE

main90980-07120iMS8#,95,RS80197702-197908

L=380,TRANSMISSION

82201WIRING SUB-ASSY, INSTRUMENT PANEL

main82201-30010iMS85,88,RS80..BTP,STD197410-197611

W/REAR WINDOW DEFOGGER

main82201-30060iMS85,88,RS80..BTP,STD197410-197611

main82201-30200iMS83,85,95..RHD..(DLX,ROY,SAL)197507-197611

main82201-30201iMS85..LHD..ROY197611-197802

main82201-30202iMS85..ARL197802-197908

RR.DEFOGGER HEATER BOOST VENT.

main82201-30250iMS85..RHD..ROY197611-197802

main82201-30251iMS85..RHD..ROY197802-197908

main82201-30270iRS80..GEN;RS80..4F..EUR;MS85..3FC..BTP..ARL;MS85,88..(BTP,STD)..(EUR,GEN)197611-197802

main82201-30271iRS80..GEN197802-197908

main82201-30280iMS83,88,RS80..EUR197611-197802

W/REAR DEFOGGER

main82201-30281iRS80197802-197908

RR.DEFOGGER HEATER BOOST VENT.

main82201-31060iMS85,88,RS80..BTP,STD197611-197802

W/HEATER OR BOOST VENTILATOR

82210HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1

main82020-30060iMS85,88..RHD..(BTP,STD)197410-197504

main82020-30061iMS85,88..RHD..(BTP,STD)197504-197611

main82020-30063iMS85..3FC..BTP..ARL;MS85,88..RHD..(BTP,STD)..GEN197611-197802

main82020-30064iMS88..RHD197802-197903

main82020-30065iMS88..RHD197903-197908

main82020-30071iMS85..ROY197511-197611

main82020-30073iMS85..RHD..ROY197611-197802

main82020-30074iMS85..RHD..ROY197802-197903

main82020-30075iMS85..RHD..ROY197903-197908

main82020-30100iRS80..RHD197410-197504

main82020-30101iRS80..RHD197504-197508

main82020-30102iRS80..RHD197508-197511

main82020-30103iRS80..RHD197511-197611

main82020-30105iRS80..RHD197611-197802

main82020-30106iRS80..RHD197802-197903

main82020-30107iRS80..RHD197903-197908

main82020-30130iRS80..LHD197410-197504

main82020-30131iRS80..LHD197504-197508

main82020-30132iRS80..LHD197508-197511

main82020-30133iRS80..LHD197511-197611

main82020-30134iRS80..LHD197611-197802

main82020-30135iRS80..LHD197802-197903

main82020-30136iRS80..LHD197903-197908

main82020-30140iMS8#,95..LHD197410-197504

main82020-30141iMS8#,95..LHD197504-197611

main82020-30142iMS85,88..LHD..(BTP,STD)197611-197802

main82020-30143iMS88..LHD197802-197903

main82020-30144iMS88..LHD197903-197908

main82020-30220iMS83,85,95..RHD..(DLX,SAL)197410-197504

main82020-30221iMS83,85,95..RHD..(DLX,SAL)197504-197611

main82020-30222iMS83..RHD..4F..GEN;MS83..RHD..(3FC,3H);MS85,95..RHD..(DLX,SAL)197611-197802

main82020-30223iMS83,85,95..RHD197802-197903

main82020-30224iMS83,85,95..RHD197903-197908

main82020-30380iMS83,85,95..LHD..(DLX,SAL)197611-197802

main82020-30381iMS83,85,95..LHD197802-197903

main82020-30382iMS83,85,95..LHD197903-197908

main82020-30410iMS85..BTP..ARL197611-197802

main82020-30420iMS83,85..(DLX,SAL)..ARL197611-197802

main82020-30421iMS85..ARL197802-197903

main82020-30422iMS85..ARL197903-197908

main82020-30450iMS85..LHD..ROY197702-197802

main82020-30451iMS85..LHD..ROY197802-197903

main82020-30452iMS85..LHD..ROY197903-197908

main82020-30550iMS83,85..RHD..EUR197802-197908

main82020-30560iMS83,85..LHD..EUR197802-197908

main82020-30570iRS80..EUR197802-197908

main82210-31700iMS88..EUR197802-197908

82220HARNESS ASSY, WIRING COWL

main82220-30230iMS85,88..RHD..(BTP,STD)197410-197512

W/REAR WINDOW DEFOGGER

main82220-30231iMS85..3FC..BTP..ARL;MS85,88..RHD..(BTP,STD)..GEN197512-197611

main82220-30232iMS85..3FC..BTP..ARL;MS85,88..RHD..(BTP,STD)..GEN197611-197802

main82220-30233iMS85,88..RHD..(BTP,STD)197802-197908

main82220-30240iMS83,85,95..RHD..DLX..4D197410-197512

main82220-30241iMS83..RHD..4F..GEN;MS83..RHD..(3FC,3H);MS85,95..RHD..DLX..4D197512-197611

main82220-30242iMS83,85..RHD..DLX197611-197802

main82220-30243iMS83,85,95..RHD..DLX197802-197908

main82220-30250iMS85..RHD..SAL197410-197512

main82220-30251iMS85..RHD..4F..SAL..GEN;MS85..RHD..(3FC,3H,3HC)..SAL197512-197611

main82220-30252iMS85..RHD..SAL197611-197802

main82220-30253iMS85..RHD..SAL197802-197908

main82220-30320iMS88197410-197512

main82220-30340iRS80..RHD197410-197512

main82220-30341iRS80..RHD197512-197611

main82220-30342iRS80..RHD197611-197802

main82220-30343iRS80..RHD197802-197908

main82220-30360iMS85..LHD..BTP197410-197504

main82220-30361iMS85..LHD..BTP197504-197611

main82220-30362iMS85..LHD..BTP197611-197802

main82220-30363iMS85..LHD..BTP197802-197908

main82220-30370iMS85,95..LHD..DLX..4D197410-197504

main82220-30371iMS85,95..LHD..DLX..4D197504-197611

main82220-30372iMS85..LHD..DLX197611-197802

main82220-30373iMS85,95..LHD..DLX..4D197802-197908

main82220-30380iMS85..LHD..SAL197410-197504

main82220-30381iMS85..LHD..SAL197504-197611

main82220-30382iMS85..LHD..SAL197611-197802

main82220-30383iMS85..LHD..SAL197802-197908

main82220-30390iRS80..LHD197410-197504

main82220-30391iRS80..LHD197504-197611

main82220-30392iRS80..LHD197611-197802

main82220-30393iRS80..LHD197802-197908

main82220-30540iMS85..ROY197511-197611

main82220-30541iMS85..RHD..ROY197611-197802

main82220-30542iMS85..RHD..ROY197802-197908

main82220-30630iMS85..BTP..ARL197604-197611

main82220-30670iMS85..SAL..ARL197604-197611

main82220-30730iMS95..RHD..2D197611-197802

main82220-30731iMS95..RHD..2D197802-197908

main82220-30740iMS95..LHD..2D197611-197802

main82220-30741iMS95..LHD..2D197802-197908

main82220-30790iMS85..LHD..ROY197702-197802

main82220-30791iMS85..LHD..ROY197802-197908

main82220-31040iMS83..LHD197501-197504

main82220-31041iMS83..LHD197504-197611

main82220-31042iMS83..LHD197611-197802

main82220-31043iMS83..LHD197802-197908

main82220-31050iMS88..LHD197501-197504

main82220-31051iMS88..LHD197504-197611

main82220-31052iMS88..LHD197611-197802

main82220-31053iMS88..LHD197802-197908

main82220-31060iMS88..LHD197501-197504

FOR W/REAR WIPER

main82220-31061iMS88..LHD197504-197611

FOR W/REAR WIPER

main82220-31062iMS88..LHD197611-197802

FOR W/REAR WIPER

main82220-31070iMS83..LHD197501-197504

FOR W/REAR WIPER

main82220-31071iMS83..LHD197504-197611

FOR W/REAR WIPER

main82220-31072iMS83..LHD197611-197802

FOR W/REAR WIPER

main82220-31110iMS83..ARL197604-197611

main82220-3A040iMS85..ARL197802-197908

main82220-3A060iMS85..BTP..ARL197711-197802

main82220-3A070iMS83..ARL197711-197802

main82220-3A080iMS85..SAL..ARL197711-197802

main82220-3A120iMS85..RHD..BTP197809-197908

main82220-3A130iMS85,95..RHD..DLX197809-197908

82230WIRING ASSY, FRONT SIDE

main82230-30040iMS8#,95,RS80..LHD..(BTP,DLX,STD)197611-197802

main82230-30041iMS8#,95,RS80..LHD197802-197903

main82230-30042iMS8#,95,RS80..LHD197903-197908

main82230-30050iMS85..LHD..(ROY,SAL)197611-197802

main82230-30051iMS85..LHD197802-197903

main82230-30052iMS85..LHD197903-197908

main82230-30060iMS8#,RS80..LHD..(BTP,DLX,STD)..EUR197802-197903

main82230-30061iMS8#,RS80..LHD..(BTP,DLX,STD)..EUR197903-197908

main82230-30070iMS85..LHD..SAL..EUR197802-197903

main82230-30071iMS85..LHD..SAL..EUR197903-197908

82345DIODE

main82345-12010iMS8#,95,RS80¥1,290197802-197908

sub82345-12020¥1,190

82375AWIRE, WIPER MOTOR

82823CAP, TERMINAL, NO.1

main82823-22030iMS85..ROY197511-197611

82826COVER, WIRING HARNESS HOLE

main82817-30070iMS8#,95,RS80..RHD197410-197611

main82817-30071iMS8#,95,RS80197611-197908

main82817-30080iMS8#,95,RS80..LHD197410-197611

8401

9016860010

main90168-60010¥170

9017906115

main90179-06115¥120

9161640612

main91616-40612¥120

9165640816

main91656-40816¥140

9354055012

main93540-55012¥60

9358016016

main93580-16016¥240

16 parts on this diagram · 10 diagrams in section
