Toyota CROWN — ROOF SIDE VENTILATOR

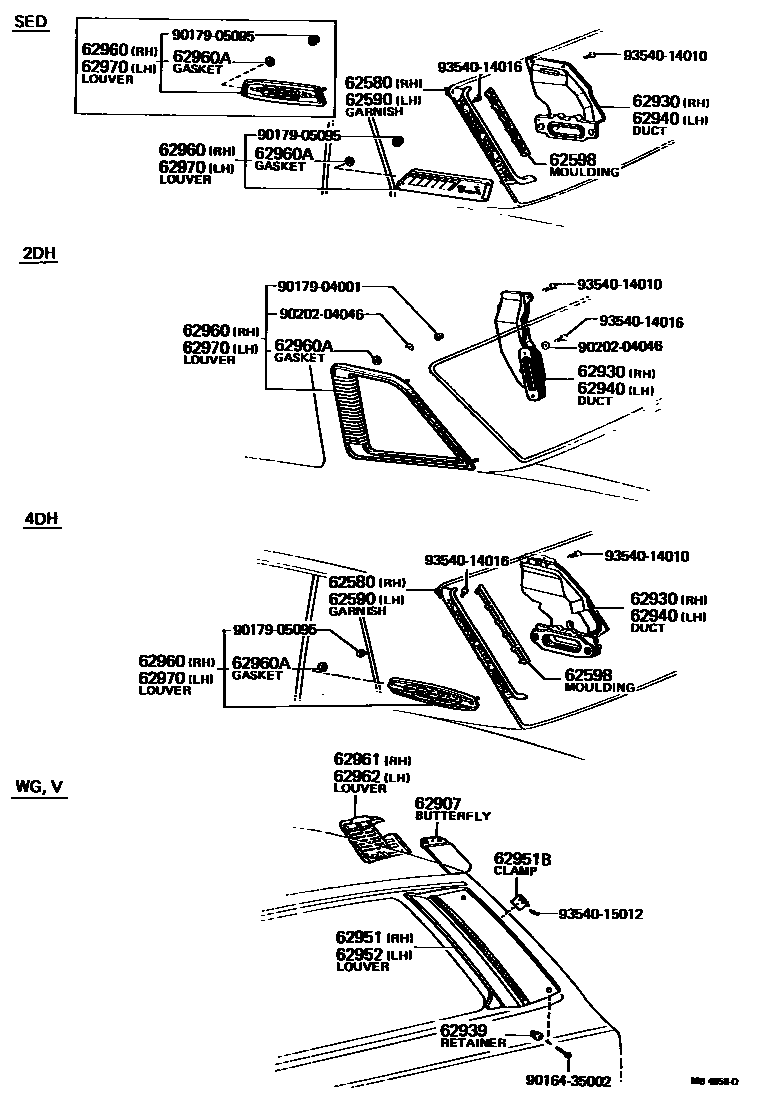

Parts diagram
62580GARNISH ASSY, QUARTER VENTILATION LOUVER, RH
main62821-30040-03i197410-197611
GRAY,GRAY,TRIM1#
sub62821-30040¥9,100
main62821-30040-04i197611-197908
BLUE,BLUE,TRIM8#
sub62821-30040¥9,100
main62821-30040-05i197611-197908
BEIGE,BEIGE,TRIM4#
sub62821-30040¥9,100
main62821-30040-08i197410-197611
IVORY,IVORY,TRIM0#,4#
sub62821-30040¥9,100
main62821-30040-13i197611-197908
GRAY,GRAY,TRIM1#
sub62821-30040¥9,100
main62821-30060-03i197412-197611
GRAY,GRAY,TRIM1#
sub62821-30060¥9,100
main62821-30060-04i197611-197802
BLUE,BLUE,TRIM8#
sub62821-30060¥9,100
main62821-30060-05i197802-197908
BEIGE,BEIGE,TRIM4#
sub62821-30060¥9,100
main62821-30060-08i197412-197611
IVORY,IVORY,TRIM0#,4#
sub62821-30060¥9,100
main62821-30060-13i197611-197802
GRAY,GRAY,TRIM1#
sub62821-30060¥9,100
62590GARNISH ASSY, QUARTER VENTILATION LOUVER, LH
main62822-30040-03i197410-197611
GRAY,GRAY,TRIM1#
sub62822-30040¥9,100
main62822-30040-04i197611-197908
BLUE,BLUE,TRIM8#
sub62822-30040¥9,100
main62822-30040-05i197611-197908
BEIGE,BEIGE,TRIM4#
sub62822-30040¥9,100
main62822-30040-08i197410-197611
IVORY,IVORY,TRIM0#,4#
sub62822-30040¥9,100
main62822-30040-13i197611-197908
GRAY,GRAY,TRIM1#
sub62822-30040¥9,100
main62822-30060-03i197412-197611
GRAY,GRAY,TRIM1#
sub62822-30060¥9,100
main62822-30060-04i197611-197802
BLUE,BLUE,TRIM8#
sub62822-30060¥9,100
main62822-30060-05i197802-197908
BEIGE,BEIGE,TRIM4#
sub62822-30060¥9,100
main62822-30060-08i197412-197611
IVORY,IVORY,TRIM0#,4#
sub62822-30060¥9,100
main62822-30060-13i197611-197802
GRAY,GRAY,TRIM1#
sub62822-30060¥9,100
62598MOULDING, QUARTER VENTILATION LOUVER
main62828-30020-03i197410-197611
GRAY,GRAY,TRIM1#
sub62828-30020¥9,100
main62828-30020-04i197611-197908
BLUE,BLUE,TRIM8#
sub62828-30020¥9,100
main62828-30020-05i197611-197908
BEIGE,BEIGE,TRIM4#
sub62828-30020¥9,100
main62828-30020-08i197410-197611
IVORY,IVORY,TRIM0#,4#
sub62828-30020¥9,100
main62828-30020-13i197611-197908
GRAY,GRAY,TRIM1#
sub62828-30020¥9,100
62907BUTTERFLY SUB-ASSY, VENT
62930DUCT ASSY, ROOF SIDE VENT, RH
main62903-30020i197410-197908
main62903-30030i197410-197908
main62903-30040i197412-197908
62939RETAINER, ROOF SIDE VENT
main62909-91701i197501-197908
62940DUCT ASSY, ROOF SIDE VENT, LH
main62904-30020i197410-197908
main62904-30030i197410-197908
main62904-30040i197412-197908
62951LOUVER, VENT, INNER RH
main62957-91701
62951BCLAMP(FOR ROOF SIDE VENT LOUVER)
main62957-91701i197501-197908
62952LOUVER, VENT, INNER LH
62960LOUVER ASSY, ROOF SIDE VENT, RH
main62905-39015i197802-197908
main62905-39025i197802-197908
main62951-39015i¥3,220197410-197611
sub62951-30050
main62951-39016i197611-197802
main62951-39025i¥6,200197412-197802
main68107-39015i197802-197908
main68153-39015i197410-197802
62960AGASKET(FOR ROOF SIDE VENT LOUVER)
main90430-04143i¥210197410-197908
main90430-11258i197410-197908
62961LOUVER, ROOF SIDE VENT INLET, RH
main62961-91701-03i197611-197908
GRAY,GRAY,TRIM1#
sub62961-91701¥3,580
main62961-91701-04i197611-197908
BLUE,BLUE,TRIM8#
sub62961-91701¥3,580
main62961-91701-08i197501-197611
CREAM,IVORY
sub62961-91701¥3,580
62962LOUVER, ROOF SIDE VENT INLET, LH
main62962-91701-03i197611-197908
GRAY,GRAY,TRIM1#
sub62962-91701¥3,580
main62962-91701-04i197611-197908
BLUE,BLUE,TRIM8#
sub62962-91701¥3,580
main62962-91701-08i197501-197611
CREAM,IVORY
sub62962-91701¥3,580
62970LOUVER ASSY, ROOF SIDE VENT, LH
main62906-39015i197802-197908
main62906-39025i¥6,000197802-197908
main62952-39015i¥3,220197410-197611
sub62952-30050
main62952-39016i197611-197802
main62952-39025i¥6,200197412-197802
main68108-39015i197802-197908
main68154-39015i197410-197802
9016435002
main90164-35002¥180
9017904001
main90179-04001¥180
9017905095
main90179-05095¥240
9020204046
main90202-04046¥230
9354014010
main93540-14010¥100
9354014016
main93540-14016¥120
9354015012
main93540-15012¥70

22 parts on this diagram · 2 diagrams in section
