Toyota CROWN — REAR COMBINATION LAMP

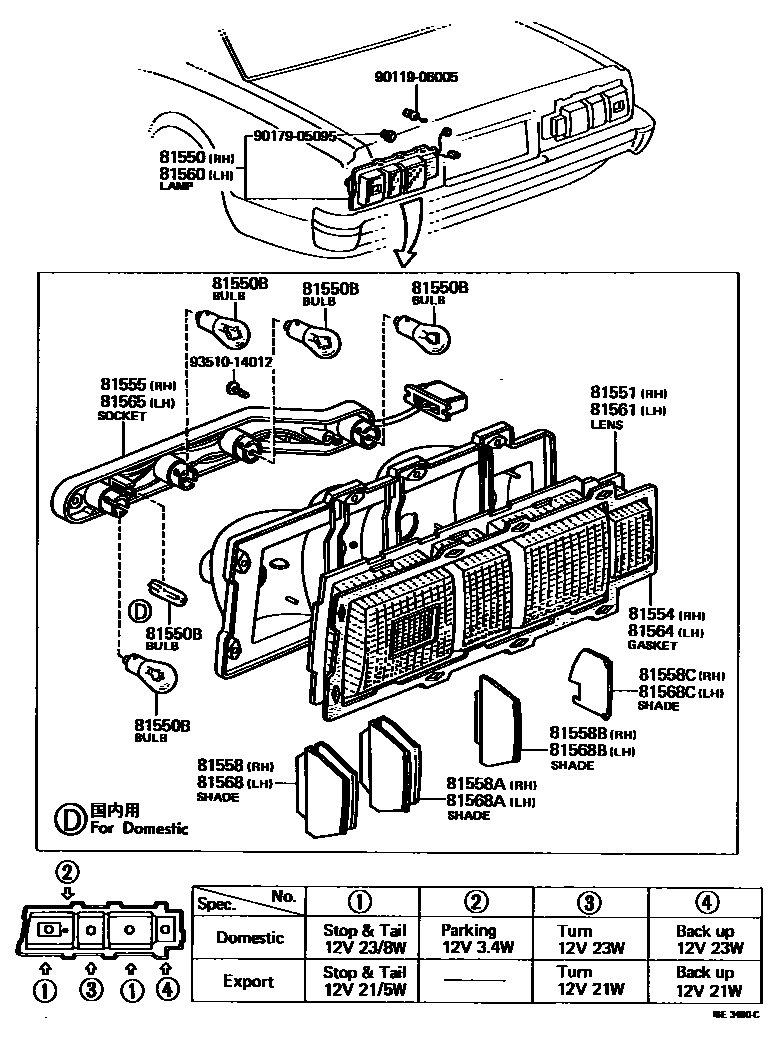

Parts diagram
81550LAMP ASSY, REAR COMBINATION, RH
main81550-30370i¥33,000197410-197611
AMBER-RED-CLEAR
main81550-30390i197410-197611
AMBER-RED-CLEAR
main81550-39445i¥41,400197501-197908
AMBER-RED
81550BBULB(FOR REAR COMBINATION LAMP)
main99132-11210i¥170197410-197908
12V 21W,12V 21W
main99132-11230i197611-197908
12V 23W,12V 23W
main99132-21210i¥190197410-197908
12V 21/5W,12V 21/5W
main99132-21230i197611-197908
12V 23/8W,12V 23/8W
81551LENS, REAR COMBINATION LAMP, RH
main81551-30360i¥7,100197410-197611
AMBER-RED-CLEAR
main81551-30380i¥5,700197410-197611
AMBER-RED
main81551-30400i¥10,000197611-197802
AMBER-RED-CLEAR
main81551-30410i¥6,000197611-197908
AMBER-RED-CLEAR
main81551-30430i¥10,900197802-197908
AMBER-RED-CLEAR
main81551-31120i¥1,930197501-197908
AMBER
main81556-31120i¥2,130197501-197908
RED
main81557-30380i¥770197410-197611
CLEAR
81554GASKET, REAR COMBINATION LAMP BODY, RH
main81552-30360i197410-197802
main81552-30380i197410-197611
FOR STOP,TAIL & TURN
main81552-30410i¥1,860197611-197908
main81552-30430i197802-197908
main81554-31120i197501-197908
main81558-30380i197410-197611
FOR BACK UP
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
main81555-30370i197410-197611
main81555-30390i197410-197611
main81555-30400i197611-197802
main81555-30420i197611-197908
main81555-30440i197802-197908
main81555-31130i197501-197908
81558SHADE, REAR COMBINATION LAMP, NO.1 RH
main81556-30350i197611-197802
main81556-30430i197802-197908
main81559-30360i197410-197611
81558ASHADE, REAR COMBINATION LAMP, NO.2 RH
main81557-30350i197611-197802
main81557-30430i197802-197908
main81559-30360i197410-197611
81558BSHADE, REAR COMBINATION LAMP, NO.3 RH
main81558-30350i197611-197802
main81558-30360i197410-197611
main81558-30430i197802-197908
81558CSHADE, REAR COMBINATION LAMP, NO.4 RH
main81557-30360i197410-197611
main81559-30350i197611-197802
81560LAMP ASSY, REAR COMBINATION, LH
main81560-30360i¥33,000197410-197611
AMBER-RED-CLEAR
main81560-30380i197410-197611
AMBER-RED-CLEAR
main81560-39395i¥41,400197501-197908
AMBER-RED
main81560-39415i197611-197908
AMBER-RED-CLEAR
81561LENS, REAR COMBINATION LAMP, LH
main81561-30330i¥10,000197611-197802
AMBER-RED-CLEAR
main81561-30340i¥6,000197611-197908
AMBER-RED-CLEAR
main81561-30350i¥7,100197410-197611
AMBER-RED-CLEAR
main81561-30370i¥5,700197410-197611
AMBER-RED
main81561-30400i¥10,900197802-197908
AMBER-RED-CLEAR
main81561-31110i¥1,930197501-197908
AMBER
main81566-31110i¥2,130197501-197908
RED
main81567-30370i¥770197410-197611
CLEAR
81564GASKET, REAR COMBINATION LAMP BODY, LH
main81552-30360i197410-197802
main81552-30380i197410-197611
FOR STOP,TAIL & TURN
main81552-30410i¥1,860197611-197908
main81552-30430i197802-197908
main81564-31110i197501-197908
main81568-30370i¥800197410-197611
FOR BACK UP
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
main81555-31130i197501-197908
main81565-30360i197410-197611
main81565-30380i197410-197611
main81565-30390i197611-197908
81568SHADE, REAR COMBINATION LAMP, NO.1 LH
main81559-30360i197410-197611
main81566-30290i197611-197802
main81566-30400i197802-197908
81568ASHADE, REAR COMBINATION LAMP, NO.2 LH
main81559-30360i197410-197611
main81567-30290i197611-197802
main81567-30400i197802-197908
81568BSHADE, REAR COMBINATION LAMP, NO.3 LH
main81558-30430i197802-197908
main81568-30290i197611-197802
main81568-30350i197410-197611
81568CSHADE, REAR COMBINATION LAMP, NO.4 LH
main81567-30350i197410-197611
main81569-30290i197611-197802
9011906005
main90119-06005¥80
9017905095
main90179-05095¥240
9351014012
main93510-14012¥230

20 parts on this diagram · 6 diagrams in section
