Toyota CROWN — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

64271BOARD, ROOM PARTITION, NO.1

main64270-30010iMS85,RS80..BTP,DLX,SAL197410-197611

main64270-30011iMS85,RS80..BTP,DLX,SAL197611-197802

main64270-30012iMS85,95,RS80..BTP,DLX,SAL197802-197908

main64270-30020iMS85..ROY197511-197611

main64270-30021-01iMS85..ROY197611-197802

BLACK,BLACK,TRIM1#,8#

sub64270-30021

main64270-30021-05iMS85..ROY197611-197802

BEIGE,BEIGE,TRIM4#

sub64270-30021

main64270-30022-01iMS85..ROY197802-197908

BLACK,BLACK,TRIM1#,8#

main64270-30022-05iMS85..ROY197802-197908

BEIGE,BEIGE,TRIM4#

main64270-30030iMS95197410-197611

main64270-30031iMS95197611-197802

sub64270-30032

64292CLAMP, JACK HANDLE

main64761-91701iMS83197501-197908

FRONT

main64762-91701iMS83197501-197908

REAR

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-30180-01iMS85,RS80..BTP..GEN;MS85..3FC..BTP..ARL197410-197611

BLACK,TRIM1#

sub64330-30340¥8,200

main64330-30180-03iMS85..3FC..BTP..ARL;MS85,RS80..BTP..(EUR,GEN)197611-197712

GRAY,TRIM1#

sub64330-30340¥8,200

main64330-30180-04iMS85..3FC..BTP..ARL;MS85,RS80..BTP..(EUR,GEN)197611-197712

BLUE,TRIM8#

sub64330-30340¥8,200

main64330-30180-06iMS85,RS80..BTP..GEN;MS85..3FC..BTP..ARL197410-197611

BROWN,TRIM0#,4#

sub64330-30340¥8,200

main64330-30190-01iMS85,RS80..BTP,DLX,SAL197410-197611

FOR SPEAKER,BLACK,BLACK,TRIM1#

sub64330-30350¥13,000

main64330-30190-03iMS85,RS80..BTP,DLX,SAL197611-197712

FOR SPEAKER,GRAY,GRAY,TRIM1#

sub64330-30350¥13,000

main64330-30190-04iMS85,RS80..BTP,DLX,SAL197611-197712

FOR SPEAKER,BLUE,TRIM8#

sub64330-30350¥13,000

main64330-30190-05iMS85,RS80..BTP,DLX,SAL197611-197712

FOR SPEAKER,BEIGE,TRIM4#

sub64330-30350¥13,000

main64330-30190-06iMS85,RS80..BTP,DLX,SAL197410-197611

FOR SPEAKER,BROWN,BROWN,TRIM0#,4#

sub64330-30350¥13,000

main64330-30200-01iMS85..ROY197511-197611

BLACK,BLACK,TRIM1#

main64330-30200-06iMS85..ROY197511-197611

BROWN,BROWN,TRIM0#,4#

main64330-30201-03iMS85..ROY197611-197908

GRAY,GRAY,TRIM1#

sub64330-30330¥20,900

main64330-30201-04iMS85..ROY197611-197908

BLUE,BLUE,TRIM8#

sub64330-30330¥20,900

main64330-30201-05iMS85..ROY197611-197908

BEIGE,BEIGE,TRIM4#

sub64330-30330¥20,900

main64330-30220-01iMS95..4D197412-197611

BLACK,BLACK,TRIM1#

sub64330-30220¥12,100

main64330-30220-03iMS95..4D197611-197802

GRAY,GRAY,TRIM1#

sub64330-30220¥12,100

main64330-30220-04iMS95..4D197611-197802

BLUE,BLUE,TRIM8#

sub64330-30220¥12,100

main64330-30220-05iMS95..4D197802-197908

BEIGE,BEIGE,TRIM4#

sub64330-30220¥12,100

main64330-30220-06iMS95..4D197412-197611

BROWN,BROWN,TRIM4#

sub64330-30220¥12,100

main64330-30240-01iMS95..2D197410-197611

BLACK,BLACK,TRIM1#

main64330-30240-03iMS95..2D197611-197802

GRAY,GRAY,TRIM1#

main64330-30240-04iMS95..2D197611-197802

BLUE,BLUE,TRIM8#

main64330-30240-05iMS95..2D197802-197908

BEIGE,BEIGE,TRIM4#

main64330-30240-06iMS95..2D197410-197611

BROWN,BROWN,TRIM4#

main64330-30250-01iMS85..SAL197501-197604

FOR AUSTRALIA,BLACK,BLACK,TRIM1#

sub64330-30251

main64330-30250-06iMS85..SAL197501-197604

FOR AUSTRALIA,BROWN,BROWN,TRIM0#,4#

sub64330-30251

main64330-30251-01iMS85..SAL..ARL197604-197611

BLACK,BLACK,TRIM1#

main64330-30251-03iMS85..SAL..ARL197611-197908

GRAY,GRAY,TRIM1#

main64330-30251-04iMS85..SAL..(ARL,EUR)197611-197908

BLUE,BLUE,TRIM8#

main64330-30251-05iMS85..SAL..ARL197611-197908

BEIGE,BEIGE,TRIM4#

main64330-30251-06iMS85..SAL..ARL197604-197611

BROWN,BROWN,TRIM0#,4#

main64330-30260-01iMS85..BTP..ARL197604-197611

BLACK,BLACK,TRIM1#

sub64330-30260¥7,500

main64330-30260-03iMS85..BTP..ARL197611-197802

GRAY,GRAY,TRIM1#

sub64330-30260¥7,500

main64330-30260-04iMS85..BTP..ARL197611-197802

BLUE,BLUE,TRIM8#

sub64330-30260¥7,500

main64330-30260-06iMS85..BTP..ARL197604-197611

BROWN,BROWN,TRIM4#

sub64330-30260¥7,500

main64330-30290-03iRS80..EUR197611-197802

FOR W/SEATBELT,W/SPEAKER,GRAY,GRAY,TRIM1#

sub64330-30260¥7,500

main64330-30290-04iRS80..EUR197611-197802

FOR W/SEATBELT,W/SPEAKER,BLUE,BLUE,TRIM8#

sub64330-30260¥7,500

main64330-30300-03iMS85,RS80..EUR197611-197802

FOR W/SEATBELT,W/SPEAKER,GRAY,GRAY,TRIM1#

sub64330-30251

main64330-30300-04iMS85,RS80..EUR197611-197802

FOR W/SEATBELT,W/SPEAKER,BLUE,BLUE,TRIM8#

sub64330-30251

main64330-30300-05iMS85,RS80..EUR197611-197802

FOR W/SEATBELT,W/SPEAKER,BEIGE,BEIGE,TRIM4#

sub64330-30251

main64330-30340-03iMS85,RS80..BTP197712-197908

GRAY,GRAY,TRIM1#

sub64330-30340¥8,200

main64330-30340-04iMS85..3FC..BTP..ARL;MS85,RS80..BTP..(EUR,GEN)197712-197802

BLUE,BLUE,TRIM8#

sub64330-30340¥8,200

main64330-30340-05iMS85,RS80..BTP197802-197908

BEIGE,BEIGE,TRIM4#

sub64330-30340¥8,200

main64330-30350-03iMS85,RS80..BTP,DLX,SAL197802-197908

FOR L/SEATBELT,GRAY,GRAY,TRIM1#

sub64330-30350¥13,000

main64330-30350-03iMS85,RS80..BTP,DLX,SAL197712-197802

FOR SPEAKER,GRAY,GRAY,TRIM1#

sub64330-30350¥13,000

main64330-30350-04iMS85,RS80..BTP,DLX,SAL197712-197802

FOR SPEAKER,BLUE,BLUE,TRIM8#

sub64330-30350¥13,000

main64330-30350-04iMS85,RS80..BTP,DLX,SAL197802-197908

FOR L/SEATBELT,BLUE,BLUE,TRIM8#

sub64330-30350¥13,000

main64330-30350-05iMS85,RS80..BTP,DLX,SAL197712-197802

FOR SEPARATE,BEIGE,BEIGE,TRIM4#

sub64330-30350¥13,000

main64330-30350-05iMS85,RS80..BTP,DLX,SAL197802-197908

FOR L/SEATBELT,BEIGE,BEIGE,TRIM4#

sub64330-30350¥13,000

64330CHOOK(FOR PACKAGE TRAY TRIM PANEL)

main64338-30030iMS85,RS80197410-197501

main64338-30040iMS95197410-197501

64330EPLUG(FOR PACKAGE TRAY TRIM PANEL)

main90950-01198-03iMS85,RS80..ARL,EUR197611-197908

GRAY,GRAY,TRIM1#

sub90950-01198¥370

main90950-01198-04iMS85,RS80..ARL,EUR197611-197908

BLUE,BLUE,TRIM8#

sub90950-01198¥370

main90950-01198-05iMS85,RS80..ARL,EUR197611-197908

BEIGE,BEIGE,TRIM4#

sub90950-01198¥370

64338GARNISH, PACKAGE TRAY PANEL TRIM

main64337-30020-01iMS85,RS80197410-197611

BLACK,BLACK

sub64337-30020¥3,010

main64337-30020-03iMS85,RS80197611-197908

GRAY,GRAY,TRIM1#

sub64337-30020¥3,010

main64337-30020-04iMS85,RS80197611-197908

BLUE,BLUE,TRIM8#

sub64337-30020¥3,010

main64337-30020-05iMS85,RS80197611-197908

BEIGE,BEIGE,TRIM4#

sub64337-30020¥3,010

main64337-30030-03iMS95197410-197611

GRAY,GRAY

main64337-30030-04iMS95197611-197802

BLUE,BLUE

main64337-30030-05iMS95197802-197908

BEIGE,BEIGE,TRIM4#

main64337-30030-08iMS95197410-197611

IVORY,IVORY

main64337-30030-13iMS95197611-197802

GRAY,GRAY

64371RETAINER, PACKAGE TRAY TRIM

main64371-30030iMS85,95,RS80197410-197908

64421TRAY SUB-ASSY, LUGGAGE COMPARTMENT

main64405-30010iMS85,95,RS80..BTP,DLX,SAL197410-197908

64701MAT SUB-ASSY, LUGGAGE COMPARTMENT

main64711-30090iMS85,RS80¥13,000197502-197510

sub64711-30091

main64711-30091iMS85,95,RS80..BTP,DLX,SAL197510-197908

main64711-30100iMS85,RS80¥13,000197410-197502

sub64711-30091

main64711-30112iMS85..ROY197511-197611

main64711-30113iMS85..ROY197611-197908

main64711-30140iMS95¥13,000197410-197510

sub64711-30091

64712COVER, LUGGAGE COMPARTMENT TRIM, RH

main64721-30020iMS85,95..DLX,SAL¥6,700197410-197502

sub64721-30031

main64721-30030iMS85,95..DLX,SAL¥6,700197502-197510

sub64721-30031

main64721-30031iMS85,95..DLX,ROY,SAL197510-197908

64713COVER, LUGGAGE COMPARTMENT TRIM, LH

main64721-30031iMS85,95..DLX,ROY,SAL197510-197908

main64722-30020iMS85,95..DLX,SAL197410-197502

sub64721-30031

main64722-30030iMS85,95..DLX,SAL197502-197510

sub64721-30031

64714COVER, LUGGAGE COMPARTMENT, RH

main64714-30050iMS85,95..(DLX,SAL)..4D¥3,690197410-197502

sub64714-30061

main64714-30060iMS85,95..DLX,SAL¥3,690197502-197510

sub64714-30061

main64714-30061iMS85,95..DLX,ROY,SAL197510-197908

main64714-30070iMS95..2D¥3,690197410-197502

sub64714-30060¥3,690

64715COVER, LUGGAGE COMPARTMENT, LH

main64715-30050iMS85,95..(DLX,SAL)..4D¥3,810197410-197502

sub64715-30061

main64715-30060iMS85,95..DLX,SAL¥3,810197502-197510

sub64715-30061

main64715-30061iMS85,95..DLX,ROY,SAL197510-197908

main64715-30070iMS95..2D¥3,810197410-197502

sub64715-30060¥3,810

64716COVER, LUGGAGE COMPARTMENT, REAR CENTER

main64717-30070iMS85..DLX,ROY,SAL197410-197802

main64717-30071iMS85..DLX,ROY,SAL197802-197908

main64717-30090iMS95197410-197611

main64717-30091iMS95197611-197908

64723MOULDING, LUGGAGE COMPARTMENT TRIM, RH

main64724-30030iMS85,95,RS80197501-197908

64724MOULDING, LUGGAGE COMPARTMENT TRIM, LH

main64724-30030iMS85,95,RS80197501-197908

64725RETAINER, LUGGAGE COMPARTMENT COVER, NO.1

main64725-30060iMS85..DLX,ROY,SAL197410-197908

main64725-30070iMS95¥350197611-197908

sub64725-95800¥700

64756COVER, LUGGAGE COMPARTMENT SIDE

main58704-30010iMS85,95,RS80¥2,190197410-197512

LH.

sub58704-30011

main58704-30011iMS85,95,RS80197512-197908

LH.

main58773-30010iMS85,95,RS80197410-197908

RH.

64770COVER ASSY, SPARE WHEEL

main64770-30050iMS85,95,RS80¥760197410-197908

main64770-91590-03iMS83197611-197908

GRAY,GRAY,TRIM1#

sub64770-91590¥55,700

main64770-91590-04iMS83197611-197908

BLUE,BLUE,TRIM8#

sub64770-91590¥55,700

main64770-91590-06iMS83197501-197611

BROWN,BROWN

sub64770-91590¥55,700

9015940206

main90159-40206¥70

9015950175

main90159-50175¥140

9016040007

main90160-40007

9018304083

main90183-04083¥160

9165540816

main91655-40816¥140

9165640816

main91656-40816¥140

9356015012

main93560-15012¥70

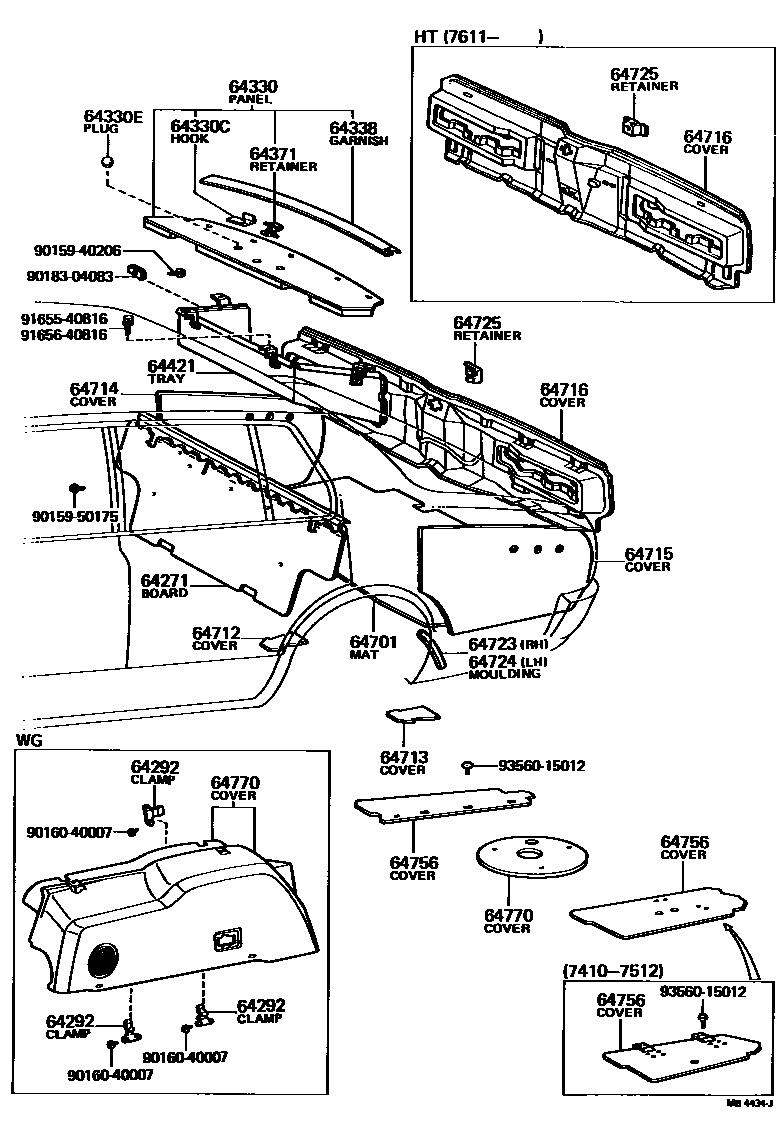

26 parts on this diagram · 1 diagram in section
