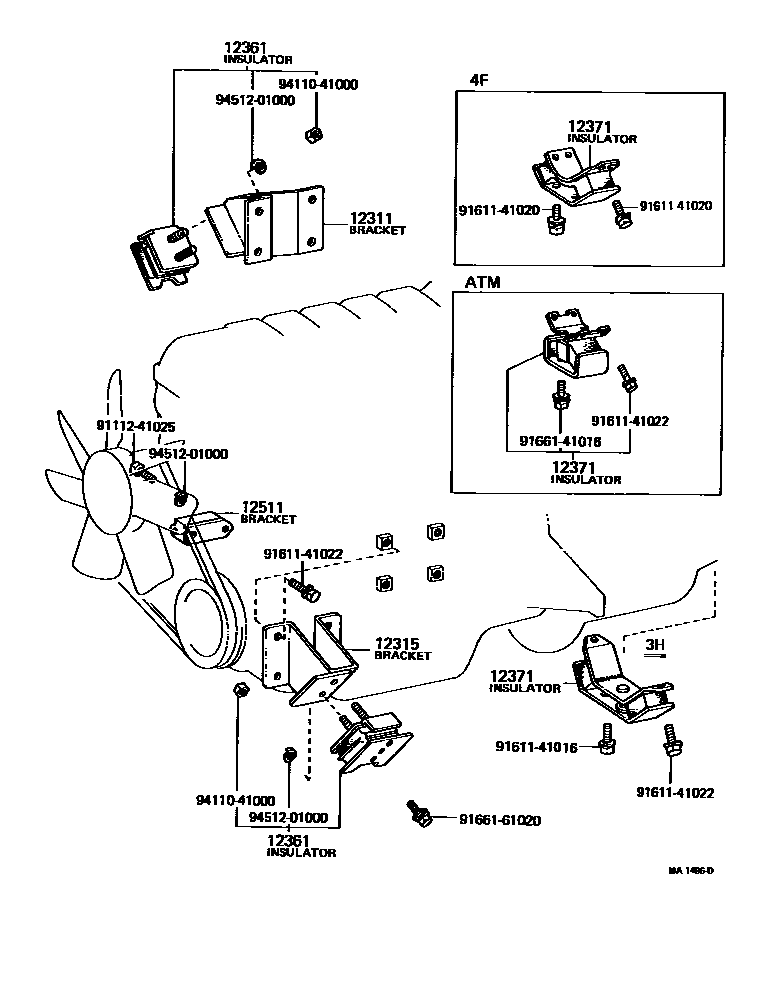

Toyota CROWN — MOUNTING

0001 1 0002 1 0003 1 0005 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-41022i4M..MS8#,95197410-197908

main12311-44010i5R..RS80197410-197908

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-41022i4M..MS8#,95¥1,970197410-197908

sub12315-41060

main12315-44010i5R..RS80197410-197908

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-49016i5R..RS80197410-197908

sub12361-44040¥3,010

sub94115-41200¥300

sub94512-01200¥100

main12361-49026i4M..MS8#,95¥4,270197410-197908

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-34020i4M..MS8#,95..MTM¥2,960197510-197611

main12371-34020i4M..MS8#,95..4F¥2,960197410-197510

main12371-34020i4M..MS8#,95..MTM¥2,960197611-197908

main12371-41020i5R..RS80..3H197410-197510

main12371-45010i5R..RS80..4H¥4,170197410-197809

sub12371-45011¥3,610

main12371-45011i5R..RS80..4H¥3,610197809-197908

main12371-49035i4M..MS83,85,95..ATM¥4,710197410-197611

12511BRACKET, ALTERNATOR, NO.1

main12511-40020i5R..RS80¥3,960197809-197908

main12511-40020i5R..RS80¥3,960197410-197512

main12511-41012i4M..MS8#,95..BTP,DLX,SAL,STD197410-197611

FOR 12V 50A ALTERNATOR

main12511-41012i4M..MS8#,95197611-197908

main12511-41020i4M..MS85..ROY197511-197611

FOR 12V 55A ALTERNATOR

main12511-44020i5R..RS80¥5,200197512-197809

9111241025

main91112-41025¥110

9161141016

main91611-41016¥220

9161141020

main91611-41020¥180

9161141022

main91611-41022¥220

9166141016

main91661-41016¥140

9166161020

main91661-61020¥190

9411041000

main94110-41000¥160

9451201000

main94512-01000¥90

13 parts on this diagram · 4 diagrams in section
