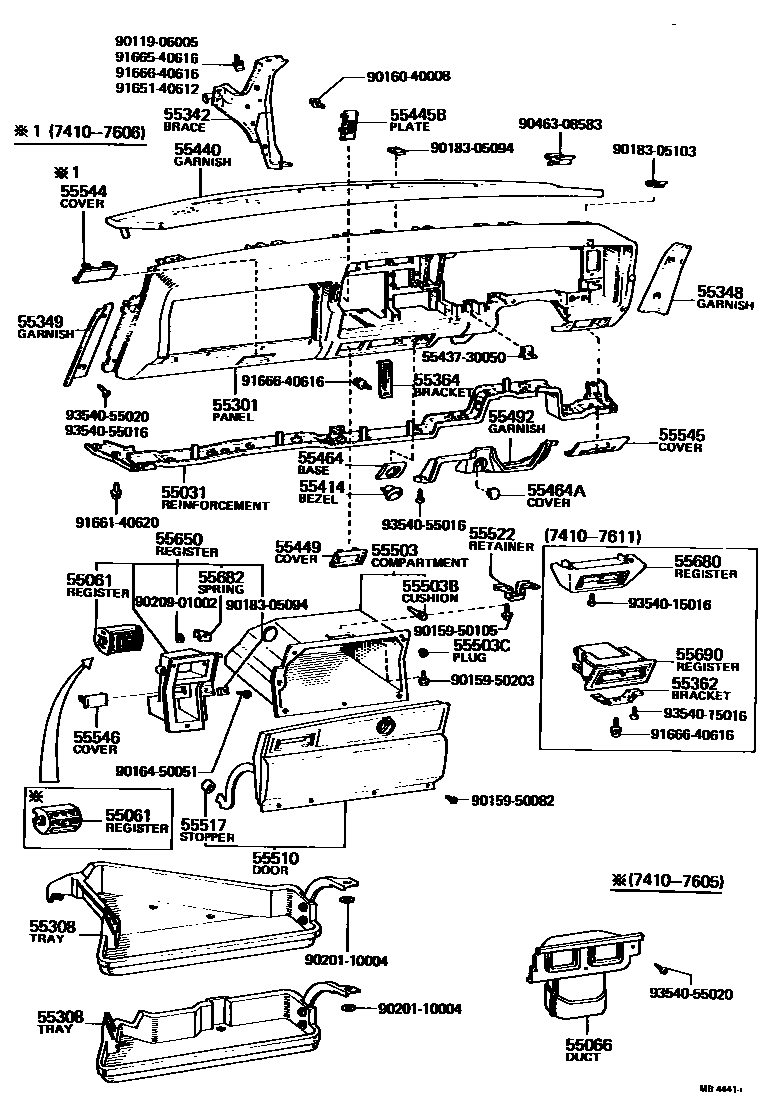

Toyota CROWN — INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

55031REINFORCEMENT, INSTRUMENT PANEL, NO.1

main55305-30060iMS8#,95,RS80..RHD197410-197611

sub55305-30061

main55305-30061iMS8#,95,RS80..RHD197611-197908

main55305-30070iMS8#,95,RS80..LHD197410-197908

55061REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1

main55061-30010iMS8#,95,RS80197410-197605

main55061-30011iMS8#,95,RS80¥1,800197605-197908

55066DUCT SUB-ASSY, AIR OUTLET, CENTER

main55086-30010iMS8#,95,RS80..RHD¥1,970197410-197609

sub55086-30011

main55086-30011iMS8#,95,RS80..RHD197609-197908

main55086-30020iMS8#,95,RS80..LHD¥3,610197410-197609

sub55086-30021

main55086-30021iMS8#,95,RS80..LHD197609-197908

55301PANEL SUB-ASSY, INSTRUMENT

main55301-30110-01iMS8#,95,RS80..RHD197410-197611

BLACK,BLACK,TRIM1#

main55301-30110-06iMS8#,95,RS80..RHD197410-197611

BROWN,BROWN,TRIM0#,4#

main55301-30120-01iMS8#,95,RS80..LHD197410-197611

BLACK,BLACK,TRIM1#

main55301-30120-06iMS8#,95,RS80..LHD197410-197611

BROWN,BROWN,TRIM0#,4#

main55301-30140-01iMS8#,95,RS80..RHD197611-197802

BLACK,BLACK,TRIM1#

main55301-30140-04iMS8#,95,RS80..RHD197611-197802

BLUE,BLUE,TRIM8#

main55301-30140-05iMS8#,95,RS80..RHD197611-197802

BEIGE,BEIGE,TRIM4#

main55301-30150-01iMS8#,95,RS80..LHD197611-197802

BLACK,BLACK,TRIM1#

main55301-30150-04iMS8#,95,RS80..LHD197611-197802

BLUE,BLUE,TRIM8#

main55301-30150-05iMS8#,95,RS80..LHD197611-197802

BEIGE,BEIGE,TRIM4#

main55301-30180-01iMS8#,95,RS80..RHD197802-197908

BLACK,BLACK,TRIM1#

main55301-30180-04iMS8#,95,RS80..RHD197802-197908

BLUE,BLUE,TRIM8#

main55301-30180-05iMS8#,95,RS80..RHD197802-197908

BEIGE,BEIGE,TRIM4#

main55301-30190-01iMS8#,95,RS80..LHD197802-197908

BLACK,BLACK,TRIM1#

main55301-30190-04iMS8#,95,RS80..LHD197802-197908

BLUE,BLUE,TRIM8#

main55301-30190-05iMS8#,95,RS80..LHD197802-197908

BEIGE,BEIGE,TRIM4#

55308TRAY SUB-ASSY, INSTRUMENT PANEL UNDER

main55601-30010-01iMS8#,95,RS80..RHD..(BTP,DLX,SAL,STD)197410-197611

FOR L/COOLER,BLACK,BLACK

sub55601-30010¥8,000

main55601-30010-01iMS8#,95,RS80..RHD..(BTP,DLX,SAL,STD)197611-197908

FOR L/COOLER,BLACK,BLACK,TRIM1#

sub55601-30010¥8,000

main55601-30010-04iMS8#,95,RS80..RHD..(BTP,DLX,SAL,STD)197611-197908

FOR L/COOLER,BLUE,BLUE,TRIM8#

sub55601-30010¥8,000

main55601-30010-05iMS8#,95,RS80..RHD..(BTP,DLX,SAL,STD)197611-197908

FOR L/COOLER,BEIGE,BEIGE,TRIM4#

sub55601-30010¥8,000

main55601-30020-01iMS85..RHD..ROY197611-197908

FOR W/COOLER,BLACK,BLACK,TRIM1#

sub55601-30020¥4,720

main55601-30020-01iMS85..ROY197410-197611

FOR W/COOLER,BLACK,BLACK

sub55601-30020¥4,720

main55601-30020-04iMS85..RHD..ROY197611-197908

FOR W/COOLER,BLUE,BLUE,TRIM8#

sub55601-30020¥4,720

main55601-30020-05iMS85..RHD..ROY197611-197908

FOR W/COOLER,BEIGE,BEIGE,TRIM4#

sub55601-30020¥4,720

main55601-30030-01iMS8#,95,RS80..LHD..(BTP,DLX,SAL,STD)197611-197908

FOR L/COOLER,BLACK,BLACK,TRIM1#

sub55601-30030¥8,000

main55601-30030-01iMS8#,95,RS80..LHD197410-197611

FOR L/COOLER,BLACK,BLACK

sub55601-30030¥8,000

main55601-30030-04iMS8#,95,RS80..LHD..(BTP,DLX,SAL,STD)197611-197908

FOR L/COOLER,BLUE,BLUE,TRIM8#

sub55601-30030¥8,000

main55601-30030-05iMS8#,95,RS80..LHD..(BTP,DLX,SAL,STD)197611-197908

FOR L/COOLER,BEIGE,BEIGE,TRIM4#

sub55601-30030¥8,000

main55601-30040-01iMS85,95,RS80..LHD197410-197802

FOR W/COOLER,BLACK,BLACK,TRIM1#

sub55601-30040¥4,720

main55601-30040-04iMS85,95,RS80..LHD197611-197802

FOR W/COOLER,BLUE,BLUE,TRIM8#

sub55601-30040¥4,720

main55601-30040-05iMS85,95,RS80..LHD197611-197802

FOR W/COOLER,BEIGE,BEIGE,TRIM4#

sub55601-30040¥4,720

55342BRACE, INSTRUMENT PANEL, NO.2

main55306-30030iMS8#,95,RS80..RHD197410-197908

main55306-30040iMS8#,95,RS80..LHD197410-197908

55348GARNISH, INSTRUMENT PANEL SIDE, RH

main55435-30070-01iMS8#,RS80197410-197908

BLACK,BLACK,TRIM1#

sub55435-30070¥1,110

main55435-30070-04iMS8#,RS80197611-197908

BLUE,BLUE,TRIM8#

sub55435-30070¥1,110

main55435-30070-05iMS8#,RS80197611-197908

BEIGE,BEIGE,TRIM4#

sub55435-30070¥1,110

main55435-30070-06iMS8#,RS80197410-197611

BROWN,BROWN,TRIM0#,4#

sub55435-30070¥1,110

main55435-30080-01iMS95197410-197802

BLACK,BLACK,TRIM1#

main55435-30080-04iMS95197611-197802

BLUE,BLUE,TRIM8#

main55435-30080-05iMS95197802-197908

BEIGE,BEIGE,TRIM4#

main55435-30080-06iMS95197410-197611

BROWN,BROWN,TRIM0#,4#

55349GARNISH, INSTRUMENT PANEL SIDE, LH

main55436-30020-01iMS8#,RS80197410-197908

BLACK,BLACK,TRIM1#

sub55436-30020¥1,150

main55436-30020-04iMS8#,RS80197611-197908

BLUE,BLUE,TRIM8#

sub55436-30020¥1,150

main55436-30020-05iMS8#,RS80197611-197908

BEIGE,BEIGE,TRIM4#

sub55436-30020¥1,150

main55436-30020-06iMS8#,RS80197410-197611

BROWN,BROWN,TRIM0#,4#

sub55436-30020¥1,150

main55436-30030-01iMS95197410-197802

BLACK,BLACK,TRIM1#

main55436-30030-04iMS95197611-197802

BLUE,BLUE,TRIM8#

main55436-30030-05iMS95197802-197908

BEIGE,BEIGE,TRIM4#

main55436-30030-06iMS95197410-197611

BROWN,BROWN,TRIM0#,4#

55362BRACKET, INSTRUMENT PANEL LOWER REGISTER MOUNTING

main55364-30050iMS8#,95,RS80197410-197611

55364BRACKET, RADIO TUNER MOUNTING

main55366-30060iMS8#,95,RS80197410-197908

55414BEZEL, CIGAR LIGHTER HOLE

main55496-30010iMS8#,95,RS80197410-197908

55440GARNISH, INSTRUMENT PANEL, CENTER

main55044-30010-01iMS8#,95,RS80..RHD..(BTP,DLX,STD)197410-197611

BLACK,BLACK,TRIM1#

sub55044-30020¥11,800

main55044-30010-06iMS8#,95,RS80..RHD..(BTP,DLX,STD)197410-197611

BROWN,BROWN,TRIM0#,4#

sub55044-30020¥11,800

main55044-30020-01iMS85..ROY,SAL197410-197611

BLACK,BLACK,TRIM1#

sub55044-30070

sub55044-30020¥11,800

main55044-30020-06iMS85..ROY,SAL197410-197611

BROWN,BROWN,TRIM0#,4#

sub55044-30070

sub55044-30020¥11,800

main55044-30030-01iMS8#,95,RS80..LHD..(BTP,DLX,STD)197410-197611

BLACK,BLACK,TRIM1#

sub55044-30020¥11,800

main55044-30030-06iMS8#,95,RS80..LHD..(BTP,DLX,STD)197410-197611

BROWN,BROWN,TRIM0#,4#

sub55044-30020¥11,800

main55044-30040-01iMS8#,95,RS80..RHD..(BTP,DLX,STD)197611-197802

BLACK,BLACK,TRIM1#

sub55044-30070

main55044-30040-04iMS8#,95,RS80..RHD..(BTP,DLX,STD)197611-197802

BLUE,BLUE,TRIM8#

sub55044-30070

main55044-30050-01iMS8#,95,RS80..LHD..(BTP,DLX,STD)197611-197802

BLACK,BLACK,TRIM1#

sub55044-30070

main55044-30050-04iMS8#,95,RS80..LHD..(BTP,DLX,STD)197611-197802

BLUE,BLUE,TRIM8#

sub55044-30070

main55044-30060-01iMS85..ROY,SAL197611-197802

BLACK,BLACK,TRIM1#

sub55044-30070

main55044-30060-04iMS85..ROY,SAL197611-197802

BLUE,BLUE,TRIM8#

sub55044-30070

main55044-30060-05iMS85..ROY,SAL197611-197802

BEIGE,BEIGE,TRIM4#

sub55044-30070

main55044-30070-01iMS8#,95,RS80197802-197908

BLACK,BLACK,TRIM1#

main55044-30070-04iMS8#,95,RS80197802-197908

BLUE,BLUE,TRIM8#

main55044-30070-05iMS8#,95,RS80197802-197908

BEIGE,BEIGE,TRIM4#

55445BPLATE, INSTRUMENT PANEL FINISH

main55049-30010iMS83,85,95..RHD..DLX¥2,290197802-197803

sub55049-30030

main55049-30020iMS85..RHD..(ROY,SAL)¥2,290197802-197803

sub55049-30040

main55049-30030iMS83,85,95..DLX197802-197908

sub55445-30110

main55049-30040iMS85..ROY,SAL197802-197908

sub55445-30110

main55445-30080iMS8#,95,RS80..RHD¥1,330197410-197802

main55445-30090iMS8#,95,RS80..LHD¥1,330197410-197802

main55445-30100iMS85,88,RS80..RHD..(BTP,STD)¥1,420197802-197803

sub55445-30110

main55445-30110iMS85,88,RS80..BTP,STD197802-197908

55449COVER, COOLER SWITCH HOLE

main55538-30020iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197908

main55548-30040iMS8#,95,RS80..BTP,DLX,SAL,STD197802-197908

FOR REAR COOLER SWITCH

main55549-30010iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197802

FOR REAR COOLER SWITCH

55464BASE, CIGARETTE LIGHTER

main55495-30010iMS8#,95,RS80197410-197908

55464ACOVER, CHOKE KNOB HOLE

main55531-30130iMS8#,95,RS80..RHD¥320197410-197606

55492GARNISH OR SAFETY PAD, LOWER, RH

main55432-30040-01iMS8#,95,RS80..RHD197410-197908

BLACK,BLACK,TRIM1#

sub55432-30040¥2,790

main55432-30040-04iMS8#,95,RS80..RHD197611-197908

BLUE,BLUE,TRIM8#

sub55432-30040¥2,790

main55432-30040-05iMS8#,95,RS80..RHD197611-197908

BEIGE,BEIGE,TRIM4#

sub55432-30040¥2,790

main55432-30040-06iMS8#,95,RS80..RHD197410-197611

BROWN,BROWN,TRIM0#,4#

sub55432-30040¥2,790

55503COMPARTMENT SUB-ASSY, GLOVE

main55581-30020iMS8#,95,RS80..RHD197410-197611

sub55581-30070

main55581-30040iMS8#,95,RS80..LHD197410-197611

sub55581-30080

main55581-30070iMS8#,95,RS80..RHD197611-197908

main55581-30080iMS8#,95,RS80..LHD197611-197908

55503BCUSHION(FOR GLOVE COMPARTMENT)

main90541-04003iMS8#,95,RS80197410-197908

55503CPLUG, HOLE(FOR GLOVE COMPARTMENT)

main90950-01093iMS85..3FC..BTP..ARL;MS85,88,RS80..(BTP,STD)..(EUR,GEN)¥200197501-197908

OD=9

sub90950-01409¥190

main90950-01132iMS85,RS80..BTP¥180197410-197501

OD=6

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-30010-01iMS8#,95,RS80..RHD..(BTP,DLX,STD)197410-197611

BLACK,BLACK,TRIM1#

sub55550-30020¥30,200

main55550-30010-04iMS85,88,RS80..RHD..(BTP,STD)197611-197802

BLUE,BLUE,TRIM8#

sub55550-30020¥30,200

main55550-30010-05iMS85,88,RS80..RHD..(BTP,STD)197802-197908

BEIGE,BEIGE,TRIM4#

sub55550-30020¥30,200

main55550-30010-06iMS8#,95,RS80..RHD..(BTP,DLX,STD)197410-197611

BROWN,BROWN,TRIM0#,4#

sub55550-30020¥30,200

main55550-30010-11iMS85,88,RS80..RHD..(BTP,STD)197611-197908

BLACK,BLACK,TRIM1#

sub55550-30020¥30,200

main55550-30020-01iMS85..RHD..(ROY,SAL)197410-197611

BLACK,BLACK,TRIM1#

sub55550-30020¥30,200

main55550-30020-04iMS83,85,95..RHD..(DLX,SAL)197611-197908

BLUE,BLUE,TRIM8#

sub55550-30020¥30,200

main55550-30020-05iMS83,85,95..RHD..DLX197611-197908

BEIGE,BEIGE,TRIM4#

sub55550-30020¥30,200

main55550-30020-06iMS85..RHD..(ROY,SAL)197410-197611

BROWN,BROWN,TRIM0#,4#

sub55550-30020¥30,200

main55550-30020-11iMS83,85,95..RHD..(DLX,SAL)197611-197908

BLACK,BLACK,TRIM1#

sub55550-30020¥30,200

main55550-30030-01iMS8#,95,RS80..LHD..(BTP,DLX,STD)197410-197611

BLACK,BLACK,TRIM1#

sub55550-30040¥30,200

main55550-30030-04iMS85,88,RS80..LHD..(BTP,STD)197611-197802

BLUE,BLUE,TRIM8#

sub55550-30040¥30,200

main55550-30030-05iMS85,88,RS80..LHD..(BTP,STD)197802-197908

BEIGE,BEIGE,TRIM4#

sub55550-30040¥30,200

main55550-30030-06iMS8#,95,RS80..LHD..(BTP,DLX,STD)197410-197611

BROWN,BROWN,TRIM0#,4#

sub55550-30040¥30,200

main55550-30030-11iMS85,88,RS80..LHD..(BTP,STD)197611-197908

BLACK,BLACK,TRIM1#

sub55550-30040¥30,200

main55550-30040-01iMS85..LHD..SAL197410-197611

BLACK,BLACK,TRIM1#

sub55550-30040¥30,200

main55550-30040-04iMS83,85,95..LHD..(DLX,SAL)197611-197908

BLUE,BLUE,TRIM8#

sub55550-30040¥30,200

main55550-30040-05iMS83,85,95..LHD..DLX197611-197908

BEIGE,BEIGE,TRIM4#

sub55550-30040¥30,200

main55550-30040-06iMS85..LHD..SAL197410-197611

BROWN,BROWN,TRIM0#,4#

sub55550-30040¥30,200

main55550-30040-11iMS83,85,95..LHD..(DLX,SAL)197611-197908

BLACK,BLACK,TRIM1#

sub55550-30040¥30,200

main55550-30080-04iMS85..RHD..ROY197611-197802

BLUE,BLUE,TRIM8#

sub55550-30020¥30,200

main55550-30080-05iMS85..RHD..ROY197611-197802

BEIGE,BEIGE,TRIM4#

sub55550-30020¥30,200

main55550-30080-11iMS85..RHD..ROY197611-197802

BLACK,BLACK,TRIM1#

sub55550-30020¥30,200

main55550-30090-01iMS85..LHD..ROY197702-197802

BLACK,BLACK,TRIM1#

main55550-30090-04iMS85..LHD..ROY197702-197802

BLUE,BLUE,TRIM8#

main55550-30090-05iMS85..LHD..ROY197702-197802

BEIGE,BEIGE,TRIM4#

main55550-30100-01iMS85..RHD..SAL197802-197908

BLACK,BLACK,TRIM1#

sub55550-30020¥30,200

main55550-30100-04iMS85..RHD..SAL197802-197908

BLUE,BLUE,TRIM8#

sub55550-30020¥30,200

main55550-30100-05iMS85..RHD..SAL197802-197908

BEIGE,BEIGE,TRIM4#

sub55550-30020¥30,200

main55550-30110-01iMS85..RHD..ROY197802-197908

BLACK,BLACK,TRIM1#

sub55550-30100¥30,200

main55550-30110-04iMS85..RHD..ROY197802-197908

BLUE,BLUE,TRIM8#

sub55550-30100¥30,200

main55550-30110-05iMS85..RHD..ROY197802-197908

BEIGE,BEIGE,TRIM4#

sub55550-30100¥30,200

main55550-30120-01iMS85..LHD..SAL197802-197908

BLACK,BLACK,TRIM1#

sub55550-30040¥30,200

main55550-30120-04iMS85..LHD..SAL197802-197908

BLUE,BLUE,TRIM8#

sub55550-30040¥30,200

main55550-30120-05iMS85..LHD..SAL197802-197908

BEIGE,BEIGE,TRIM4#

sub55550-30040¥30,200

main55550-30130-01iMS85..LHD..ROY197802-197908

BLACK,BLACK,TRIM1#

sub55550-30120¥30,200

main55550-30130-04iMS85..LHD..ROY197802-197908

BLUE,BLUE,TRIM8#

sub55550-30120¥30,200

main55550-30130-05iMS85..LHD..ROY197802-197908

BEIGE,BEIGE,TRIM4#

sub55550-30120¥30,200

55517STOPPER, GLOVE COMPARTMENT DOOR ARM

main55517-14010iMS8#,95,RS80¥230197611-197908

55522RETAINER, GLOVE COMPARTMENT MALE

main55561-30020iMS8#,95,RS80¥1,250197410-197607

sub55561-30021

main55561-30021iMS8#,95,RS80197607-197908

55544COVER, INSTRUMENT PANEL REGISTER HOLE

main55544-30030-01iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197606

BLACK,BLACK,TRIM1#

sub55544-30030¥740

main55544-30030-06iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197606

BROWN,BROWN,TRIM0#,4#

sub55544-30030¥740

55545COVER, FUSE BOX OPENING

main55545-30020-01iMS8#,95,RS80..RHD197410-197602

BLACK,BLACK,TRIM1#

sub55545-30021

main55545-30020-06iMS8#,95,RS80..RHD197410-197602

BROWN,BROWN,TRIM0#,4#

sub55545-30021

main55545-30021-01iMS8#,95,RS80..RHD197602-197802

BLACK,BLACK,TRIM1#

main55545-30021-04iMS8#,95,RS80..RHD197611-197802

BLUE,BLUE,TRIM8#

main55545-30021-05iMS8#,95,RS80..RHD197611-197802

BEIGE,BEIGE,TRIM4#

main55545-30021-06iMS8#,95,RS80..RHD197602-197611

BROWN,BROWN,TRIM0#,4#

main55545-30030-01iMS8#,95,RS80..LHD197410-197602

BLACK,BLACK,TRIM1#

sub55545-30031

main55545-30030-06iMS8#,95,RS80..LHD197410-197602

BROWN,BROWN,TRIM0#,4#

sub55545-30031

main55545-30031-01iMS8#,95,RS80..LHD197602-197802

BLACK,BLACK,TRIM1#

main55545-30031-04iMS8#,95,RS80..LHD197611-197802

BLUE,BLUE,TRIM8#

main55545-30031-05iMS8#,95,RS80..LHD197611-197802

BEIGE,BEIGE,TRIM4#

main55545-30031-06iMS8#,95,RS80..LHD197602-197611

BROWN,BROWN,TRIM0#,4#

main55545-30050-01iMS8#,95,RS80..RHD197802-197908

BLACK,BLACK,TRIM1#

sub55545-30050¥1,790

main55545-30050-04iMS8#,95,RS80..RHD197802-197908

BLUE,BLUE,TRIM8#

sub55545-30050¥1,790

main55545-30050-05iMS8#,95,RS80..RHD197802-197908

BEIGE,BEIGE,TRIM4#

sub55545-30050¥1,790

main55545-30060-01iMS8#,95,RS80..LHD197802-197908

BLACK,BLACK,TRIM1#

sub55545-30060¥1,790

main55545-30060-04iMS8#,95,RS80..LHD197802-197908

BLUE,BLUE,TRIM8#

sub55545-30060¥1,790

main55545-30060-05iMS8#,95,RS80..LHD197802-197908

BEIGE,BEIGE,TRIM4#

sub55545-30060¥1,790

55546COVER, LUGGAGE COMPARTMENT OPENER SWITCH HOLE

main55546-30020iMS83,88197410-197908

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-30010iMS8#,95,RS80..RHD¥5,500197410-197605

sub55650-30011

main55650-30011iMS8#,95,RS80..RHD197605-197908

main55650-30020iMS8#,95,RS80..LHD¥5,500197410-197605

sub55650-30021

main55650-30021iMS8#,95,RS80..LHD197605-197908

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-30010iMS8#,95,RS80197410-197611

55682SPRING, INSTRUMENT PANEL REGISTER SUPPORT

main55682-30020iMS8#,95,RS80¥330197410-197908

FOR INSTRUMENT PANEL

main55682-30030iMS8#,95,RS80197410-197802

FOR REGISTER

55690REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.2

main55690-30010iMS8#,95,RS80197410-197611

5543730050PROTECTOR, INSTRUMENT PANEL EDGE

main55437-30050

9011906005

main90119-06005¥80

9015950082

main90159-50082¥130

9015950105

main90159-50105¥90

9015950203

main90159-50203¥70

9016040008

main90160-40008¥210

9016450051

main90164-50051¥110

9018305094

main90183-05094¥90

9018305103

main90183-05103¥90

9020110004

main90201-10004¥110

9020901002

main90209-01002

9046308583

main90463-08583¥180

9165140612

main91651-40612¥70

9166140620

main91661-40620¥80

9166540616

main91665-40616¥70

9166640616

main91666-40616¥180

9354015016

main93540-15016¥70

9354055016

main93540-55016¥70

9354055020

main93540-55020¥110

49 parts on this diagram · 8 diagrams in section
