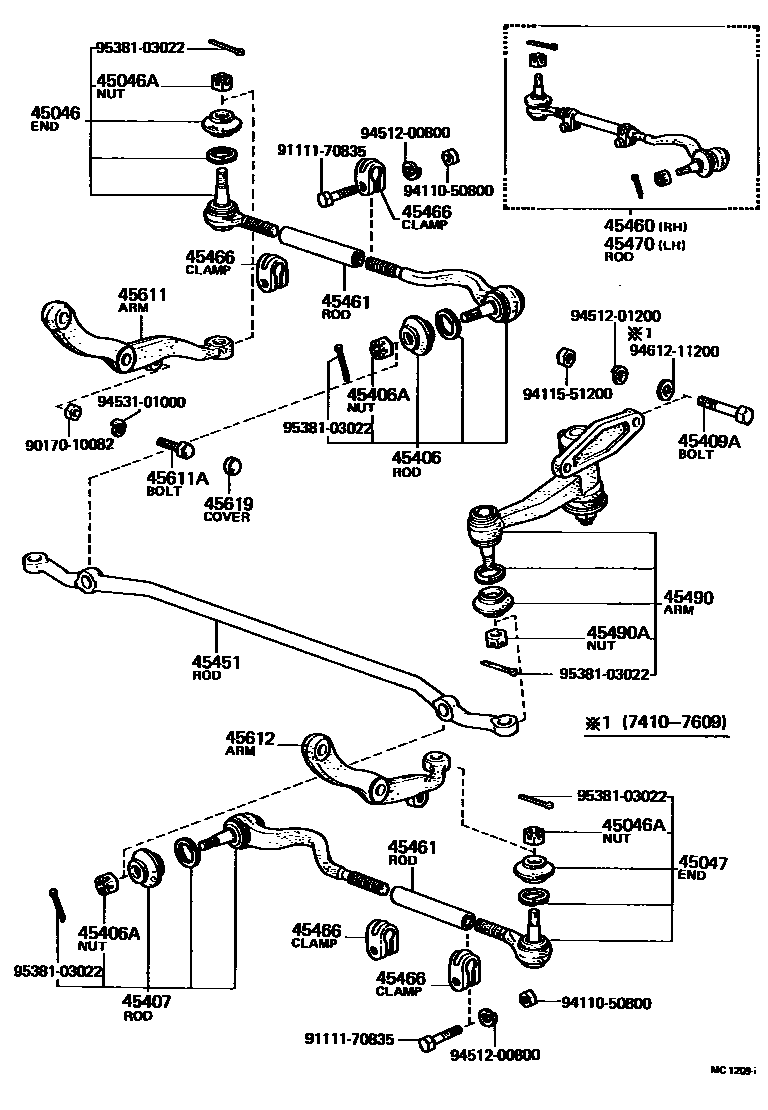

Toyota CROWN — FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-39075iMS8#,95,RS80¥4,640197410-197908

sub45046-39115¥4,020

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-14042iMS8#,95,RS80¥190197410-197908

45047END SUB-ASSY, TIE ROD, LH

main45046-39075iMS8#,95,RS80¥4,640197410-197908

sub45046-39115¥4,020

45406ROD SUB-ASSY, TIE, RH

main45406-39075iMS8#,95,RS80¥5,300197410-197908

45406ANUT, CASTLE(FOR TIE ROD)

main90171-14042iMS8#,95,RS80¥190197410-197908

45407ROD SUB-ASSY, TIE, LH

main45406-39075iMS8#,95,RS80¥5,300197410-197908

45409ABOLT, HEXAGON(FOR IDLER ARM SUPPORT SETTING)

main90101-12478iMS8#,95,RS80197410-197609

L=103

main90105-12003iMS8#,95,RS80¥340197609-197908

L=91.5

main90105-12004iMS8#,95,RS80¥350197609-197908

L=101

45451ROD, STEERING RELAY

main45451-30100iMS8#,95,RS80..RHD..(BTP,DLX,STD)197410-197908

main45451-30110iMS83,85,95,RS80..LHD..(BTP,DLX)¥6,200197410-197908

main45451-30120iMS8#,95..RHD¥9,900197410-197908

FOR POWER STEERING

main45451-30130iMS83,85,95..LHD197410-197908

FOR POWER STEERING

main45451-31010iMS88..RHD197510-197908

main45451-31020iMS88..RHD197510-197908

FOR POWER STEERING

main45451-31030iMS88..LHD197510-197908

main45451-31040iMS88..LHD197510-197908

FOR POWER STEERING

45460ROD ASSY, TIE, RH

main45460-39075iMS8#,95,RS80¥13,000197410-197908

sub45460-39125¥11,200

45461ROD, STEERING TIE

main45465-30010iMS8#,95,RS80¥790197410-197908

45466CLAMP, TIE ROD END

main45466-30020iMS8#,95,RS80¥280197410-197908

45470ROD ASSY, TIE, LH

main45460-39075iMS8#,95,RS80¥13,000197410-197908

sub45460-39125¥11,200

45490ARM ASSY, STEERING IDLER

main45490-39135iMS8#,95..RHD¥11,300197410-197908

FOR POWER STEERING

main45490-39145iMS8#,95,RS80..RHD..(BTP,DLX,STD)¥10,700197410-197908

main45490-39155iMS8#,95,RS80..LHD..(BTP,DLX,STD)¥9,500197410-197908

main45490-39165iMS8#,95..LHD¥7,700197410-197908

FOR POWER STEERING

45490ANUT, CASTLE(FOR IDLER ARM)

main90171-12028iMS8#,95,RS80¥130197410-197908

45611ARM, STEERING KNUCKLE, RH

main45611-30070iMS8#,95,RS80¥7,000197410-197802

sub45611-30080¥6,000

main45611-30080iMS8#,95,RS80¥6,000197802-197908

45611ABOLT, KNUCKLE STOPPER

main90106-10006iMS8#,95,RS80¥190197410-197908

45612ARM, STEERING KNUCKLE, LH

main45612-30070iMS8#,95,RS80¥7,000197410-197802

sub45612-30080¥6,000

main45612-30080iMS8#,95,RS80¥6,000197802-197908

45619COVER, KNUCKLE STOPPER

main45619-14010iMS8#,95,RS80¥540197410-197908

9017010082

main90170-10082¥160

9111170835

main91111-70835¥170

9411050800

main94110-50800¥80

9411551200

main94115-51200¥170

9451200800

main94512-00800¥80

9451201200

main94512-01200¥100

9453101000

main94531-01000¥90

9461211200

main94612-11200¥100

9538103022

main95381-03022¥110

27 parts on this diagram · 1 diagram in section
