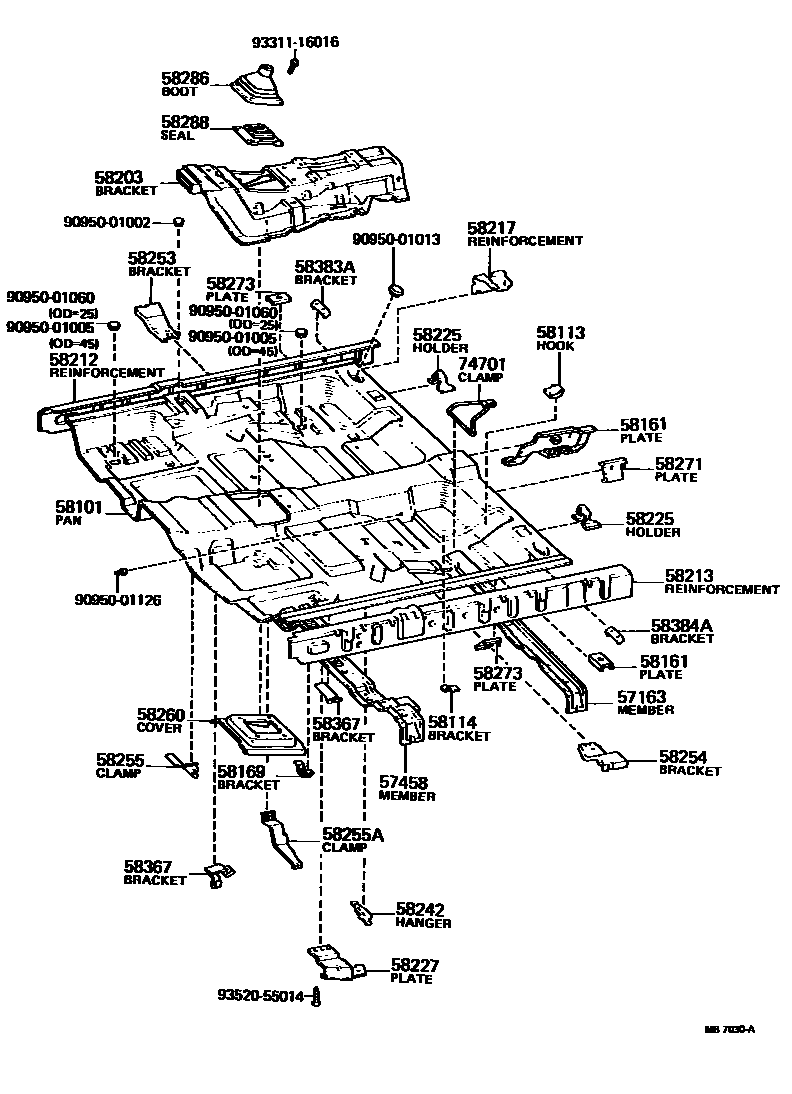

Toyota CROWN — FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1 0003 1 0004 1

57163MEMBER, FRONT FLOOR CROSS, NO.2

main57206-30010iMS8#,95,RS80197511-197711

sub57206-30020

main57206-30020iMS8#,95,RS80197711-197908

main57459-30010iMS8#,95,RS80..BTP,DLX,SAL,STD¥11,500197410-197611

sub57206-30010

57458MEMBER, FRONT FLOOR CROSS, NO.1

main57408-30010iMS8#,95,RS80197410-197903

main57408-30011iMS8#,95,RS80197903-197908

58101PAN SUB-ASSY, FRONT FLOOR

main58111-30100iMS8#,RS80..3H,3HC,4H¥54,400197410-197505

sub58111-30160

sub90950-01011¥170

main58111-30130iMS8#,95,RS80..3FC,4F197410-197505

sub58111-30170

sub90950-01011¥170

main58111-30160iMS8#,RS80..3H,3HC,4H197505-197908

main58111-30170iMS8#,95,RS80..3FC,4F197505-197908

58113HOOK, TOOL BAG BAND

main58113-91701iMS88197501-197908

58114BRACKET, TOOL BAG BAND

main58114-91701iMS88197501-197908

58161PLATE, BELT ANCHOR, REAR

main58161-30070iMS8#,95,RS80197410-197505

main58161-30080iMS8#,95,RS80197505-197908

CENTER

main58274-30010iMS95..2D197606-197908

SIDE

58169BRACKET, FUEL TUBE

main58369-30010iMS85,95,RS80¥400197606-197908

sub58369-30040¥300

58203BRACKET SUB-ASSY, FRONT SEAT

main58204-30020iMS8#,RS80..3H,3HC,4H197410-197908

main58204-30030iMS8#,95,RS80..3FC,4F197410-197908

58212REINFORCEMENT SUB-ASSY, FRONT FLOOR SIDE, RH

main57411-30010iMS8#,95,RS80197410-197908

58213REINFORCEMENT SUB-ASSY, FRONT FLOOR SIDE, LH

main57412-30010iMS8#,95,RS80197410-197908

58217REINFORCEMENT, FRONT FLOOR CROSSMEMBER, NO.2

main57471-91701iMS88197506-197908

main58217-91503iMS88¥4,060197501-197506

sub57471-91701

58225HOLDER, REAR SEAT CUSHION

main58225-30030iMS85,95,RS80..BTP,DLX,SAL197410-197908

58227PLATE, AIR GUIDE, OUTSIDE

main58226-30020iMS8#,95,RS80197410-197908

RH.

main58227-30020iMS8#,95,RS80197410-197908

LH.

58242HANGER, PARKING BRAKE RETURN SPRING

main58249-30010iMS8#,95,RS80197410-197908

58253BRACKET, FRONT SEAT, OUTER REAR RH

main57468-30010iMS8#,95,RS80197410-197908

58254BRACKET, FRONT SEAT, OUTER REAR LH

main57469-30010iMS8#,95,RS80¥1,890197410-197505

sub57469-30020

main57469-30020iMS8#,95,RS80197505-197908

58255CLAMP, PARKING BRAKE CABLE, NO.1

main58255-30020iMS8#,95,RS80..RHD197410-197903

main58255-30021iMS8#,95,RS80..RHD197903-197908

58255ACLAMP, PARKING BRAKE CABLE, NO.2

main58255-30030iMS8#,95,RS80197410-197908

58260COVER ASSY, TRANSMISSION, FRONT

main58281-30010iMS8#,95,RS80..3FC,4F197410-197908

58271PLATE, BELT ANCHOR, FRONT

main58271-30020iMS8#,95,RS80197410-197908

58273PLATE, BELT ANCHOR SIDE

main58161-30020iMS83,88..3FC,4F197604-197908

RH.

main58161-30020iMS85,RS80197410-197501

FOR AUSTRALIA & E.C.E.

main58161-30020iMS85,RS80197501-197604

RH.FOR AUSTRALIA & E.C.E.

main58161-30020iMS83,85..ARL197604-197611

RH.FOR E.C.E.

main58273-30020iMS85,RS80197501-197505

LH.FOR AUSTRALIA & E.C.E.

main58273-30020iMS8#,95,RS80197505-197908

LH.

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58280-30010iMS8#,95,RS80..4F197410-197908

58288SEAL, SHIFT LEVER BOOT

main58288-30010iMS8#,95,RS80..4F197410-197908

58367BRACKET, FUEL TUBE CLAMP

main58367-30050iMS8#,95,RS80197410-197908

FRONT

main58368-30010iMS85..ROY197511-197608

REAR

58383ABRACKET, REAR SEAT SUPPORT, RH

main58401-91501iMS83,88197501-197908

58384ABRACKET, REAR SEAT SUPPORT, LH

main58401-91501iMS83,88197501-197908

74701CLAMP SUB-ASSY, TOOL BAG

main74701-95601iMS88¥1,460197501-197908

sub58705-95701¥1,460

9095001002

main90950-01002¥220

9095001005

main90950-01005¥400

9095001013

main90950-01013¥240

9095001060

main90950-01060¥200

9095001126

main90950-01126¥360

9331116016

main93311-16016¥120

9352055014

main93520-55014

34 parts on this diagram · 4 diagrams in section
