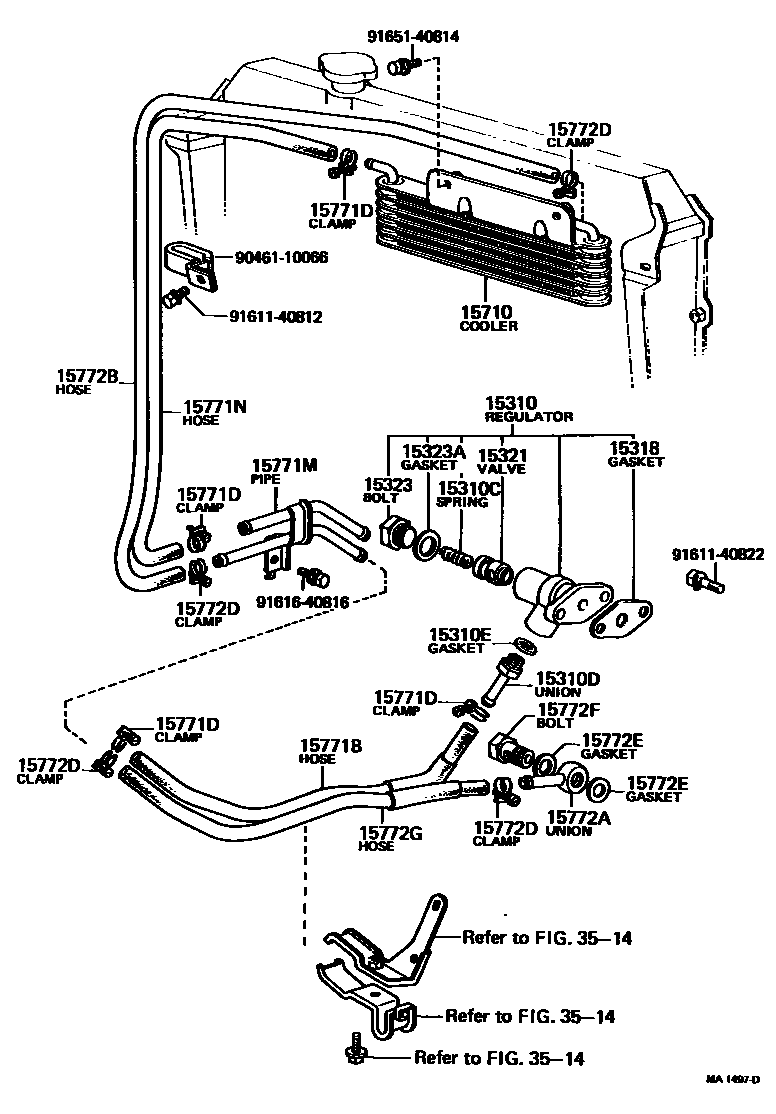

Toyota CROWN — ENGINE OIL COOLER
15310REGULATOR ASSY, OIL PRESSURE
15310CSPRING, OIL PRESSURE REGULATOR
15310DUNION(FOR OIL PRESSURE REGULATOR)
15310EGASKET, OIL PRESSURE REGULATOR UNION
15318GASKET, OIL PRESSURE REGULATOR BODY
15321VALVE, OIL ADJUSTING
15323BOLT, OIL PRESSURE ADJUSTING
15323AGASKET, OIL PRESSURE REGULATOR ADJUSTING BOLT
15710COOLER ASSY, OIL
15771BHOSE, OIL, NO.1(FOR OIL PIPE)
15771DCLAMP, OIL COOLER HOSE
15771NHOSE, OIL, NO.2(FOR OIL PIPE)
15772AUNION(FOR OIL PIPE)
15772BHOSE, OIL, NO.1(FOR OIL PIPE)
15772DCLAMP OR CLIP, OIL COOLER HOSE
15772EGASKET(FOR OIL PIPE)
15772FBOLT, UNION(FOR OIL PIPE)
15772GHOSE, OIL, NO.2 (FOR OIL PIPE)
3514
9046110066
main90461-10066
9161140812
9161140822
9161640816
9165140814
25 parts on this diagram · 3 diagrams in section
