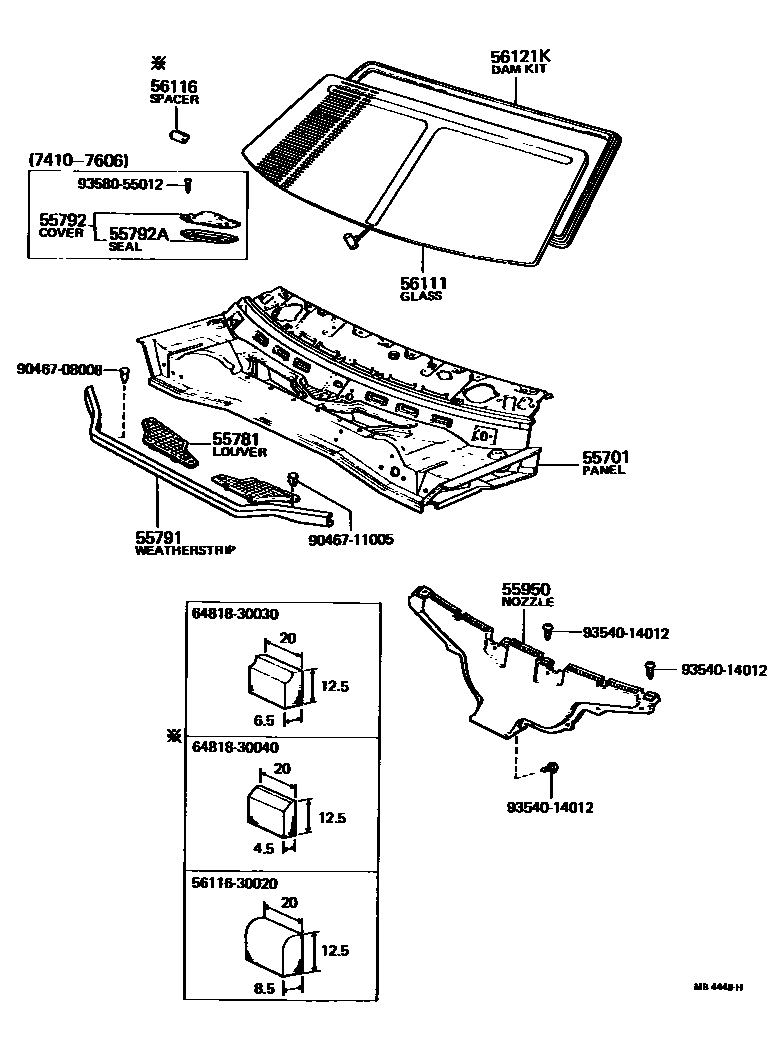

Toyota CROWN — COWL PANEL & WINDSHIELD GLASS

55701PANEL SUB-ASSY, COWL

main55700-30110iMS8#,95,RS80..RHD197410-197611

FOR W/RADIO

main55700-30111iMS8#,95,RS80..RHD..(BTP,DLX,STD)¥62,500197611-197802

sub55700-30160

main55700-30120iMS8#,95,RS80..LHD¥41,100197410-197611

sub55700-30141¥41,100

main55700-30121iMS8#,95,RS80..LHD..(BTP,DLX,STD)197611-197802

sub55700-30170

main55700-30130iMS8#,95,RS80..RHD..(BTP,DLX,SAL,STD)¥62,500197410-197611

sub55700-30131

main55700-30131iMS85..RHD..SAL197611-197802

main55700-30132iMS85..RHD..SAL197802-197902

sub55700-30133

sub90189-04014¥120

main55700-30133iMS85..RHD..SAL197902-197908

main55700-30140iMS8#,95,RS80..LHD¥41,100197410-197611

FOR W/RADIO

sub55700-30142

main55700-30141iMS85..LHD..(ROY,SAL)¥41,100197611-197902

sub55700-30142

sub90189-04014¥120

main55700-30142iMS85..LHD..(ROY,SAL)197902-197908

main55700-30151iMS85..RHD..ROY197611-197802

main55700-30152iMS85..RHD..ROY¥62,500197802-197902

sub55700-30153

sub90189-04014¥120

main55700-30153iMS85..RHD..ROY197902-197908

main55700-30160iMS85,RS80..RHD..BTP197611-197802

FOR W/RADIO

main55700-30161iMS8#,95,RS80..RHD..(BTP,DLX,STD)¥62,500197802-197902

FOR W/RADIO

sub55700-30162

sub90189-04014¥120

main55700-30162iMS8#,95,RS80..RHD..(BTP,DLX,STD)197902-197908

FOR W/RADIO

main55700-30170iMS85,RS80..LHD..BTP197611-197802

FOR W/RADIO

sub55700-30171

sub90189-04014¥120

main55700-30170iRS80..4F..EUR;MS83,88,95..LHD;MS85..3FC..DLX..EUR;MS85,RS80..LHD..(BTP,DLX)..GEN197802-197902

FOR W/RADIO

sub55700-30171

sub90189-04014¥120

main55700-30171iRS80..4F..EUR;MS83,88,95..LHD;MS85..3FC..DLX..EUR;MS85,RS80..LHD..(BTP,DLX)..GEN197902-197908

FOR W/RADIO

55781LOUVER, COWL VENTILATOR

main55781-30050iMS8#,95,RS80197410-197908

RH.

main55782-30010iMS8#,95,RS80197410-197908

LH.

55791WEATHERSTRIP, HOOD TO COWL TOP

main53383-30050iMS8#,95,RS80¥3,890197410-197908

55792COVER, WIPER MOTOR SERVICE HOLE

main55071-30010iMS8#,95,RS80197410-197606

55792ASEAL, WIPER MOTOR SERVICE HOLE

main55795-30020iMS8#,95,RS80197410-197606

55950NOZZLE ASSY, DEFROSTER

main55950-30010iMS8#,95,RS80..RHD197410-197908

main55950-30020iMS8#,95,RS80..LHD197410-197908

56111GLASS, WINDSHIELD

main56111-30320iMS85..3FC..ARL;MS85..4F..SAL..ARL;MS85,RS80..(BTP,DLX,SAL)..(EUR,GEN)¥87,800197611-197802

TN.LM.T=5.7

sub56111-30361¥94,800

main56111-30320iRS80..GEN;RS80..4F..EUR;MS85..BTP,DLX,SAL¥87,800197802-197908

TN.LM.T=5.7

sub56111-30361¥94,800

main56111-30330iMS95..LHD..4F..2D¥95,100197809-197908

TN.LM.T=5.7

main56111-30340iMS83..EUR,GEN¥105,000197611-197908

TN.LM.T=5.7,W/ANTENNA

sub56111-30360¥113,000

main56111-30340iMS83..3FC,3H;MS85..DLX,SAL;MS83..4F..GEN¥105,000197410-197611

TN.LM.T=5.7,W/ANTENNA

sub56111-30360¥113,000

main56111-30350iMS85..ARL;MS85,RS80..BTP¥40,800197810-197908

ZN.TP.T=5.0

sub56111-30380¥102,000

main56111-30350iMS85..3FC..BTP..ARL;MS85,88,RS80..(BTP,STD)..(EUR,GEN)¥40,800197410-197802

ZN.TP.T=5.0

sub56111-30380¥102,000

main56111-30350iRS80..EUR¥40,800197802-197809

ZN.TP.T=5.0

sub56111-30380¥102,000

main56111-30350iRS80¥40,800197809-197810

ZN.TP.T=5.0

sub56111-30380¥102,000

main56111-30350iMS88¥40,800197802-197908

ZN.TP.T=5.0

sub56111-30380¥102,000

main56111-30360iMS85..ROY¥113,000197511-197611

TN.LM.T=5.7,W/ANTENNA

main56111-30360iMS83..LHD..3H¥113,000197808-197908

TN.LM.T=5.7,W/ANTENN,T.S.T.

main56111-30361iMS85..LHD..4F..DLX..GEN¥94,800197809-197908

TN.LM.T=5.7,TOP SHADE TYPE

main56111-30361iMS85..ROY¥94,800197611-197908

TN.LM.T=5.7

main56111-30370iMS95¥105,000197410-197611

TN.LM.T=5.7,W/ANTENNA

main56111-30371iMS95¥87,700197611-197908

TN.LM.T=5.7

sub56111-30330¥95,100

main56111-30380iMS83..ARL¥102,000197611-197802

LM.T=5.7,W/ANTENNA

sub56111-30360¥113,000

main56111-30380iMS85,88,RS80..BTP,STD¥102,000197410-197802

LM.T=5.7,W/ANTENNA

sub56111-30360¥113,000

main56111-30380iRS80..GEN;RS80..4F..EUR;MS85,88..BTP,STD¥102,000197802-197908

LM.T=5.7,W/ANTENNA

sub56111-30360¥113,000

main56111-30380iMS83,85¥102,000197410-197604

LM.T=5.7,W/ANTENNA,FOR ARL.

sub56111-30360¥113,000

main56111-30380iMS83,85..ARL¥102,000197604-197611

LM.T=5.7,W/ANTENNA

sub56111-30360¥113,000

main56111-30390iRS80..EUR¥76,900197802-197809

LM.T=5.7

main56111-30390iMS85..ARL¥76,900197611-197908

LM.T=5.7

main56111-30390iMS85,RS80..BTP¥76,900197809-197908

LM.T=5.7

56116SPACER, WINDSHIELD GLASS

main56116-30020iMS83,88¥250197802-197908

sub56116-24010¥230

main64818-30030iMS95197410-197908

main64818-30030iMS8#,RS80197410-197802

RH.

main64818-30030iMS85,RS80197802-197908

RH.

main64818-30040iMS8#,RS80197410-197802

LH.

main64818-30040iMS85,RS80197802-197908

LH.

56121KDAM KIT, WINDSHIELD GLASS

main04562-30020iMS8#,95,RS80¥2,170197410-197908

sub04562-30030¥2,680

5611630020SPACER, WINDSHIELD GLASS

main56116-30020¥250

6481830030SPACER, BACK WINDOW GLASS

main64818-30030

6481830040SPACER, BACK WINDOW GLASS

main64818-30040

9046708008

main90467-08008¥170

9046711005

main90467-11005¥180

9354014012

main93540-14012¥120

9358055012

main93580-55012¥120

16 parts on this diagram · 1 diagram in section
