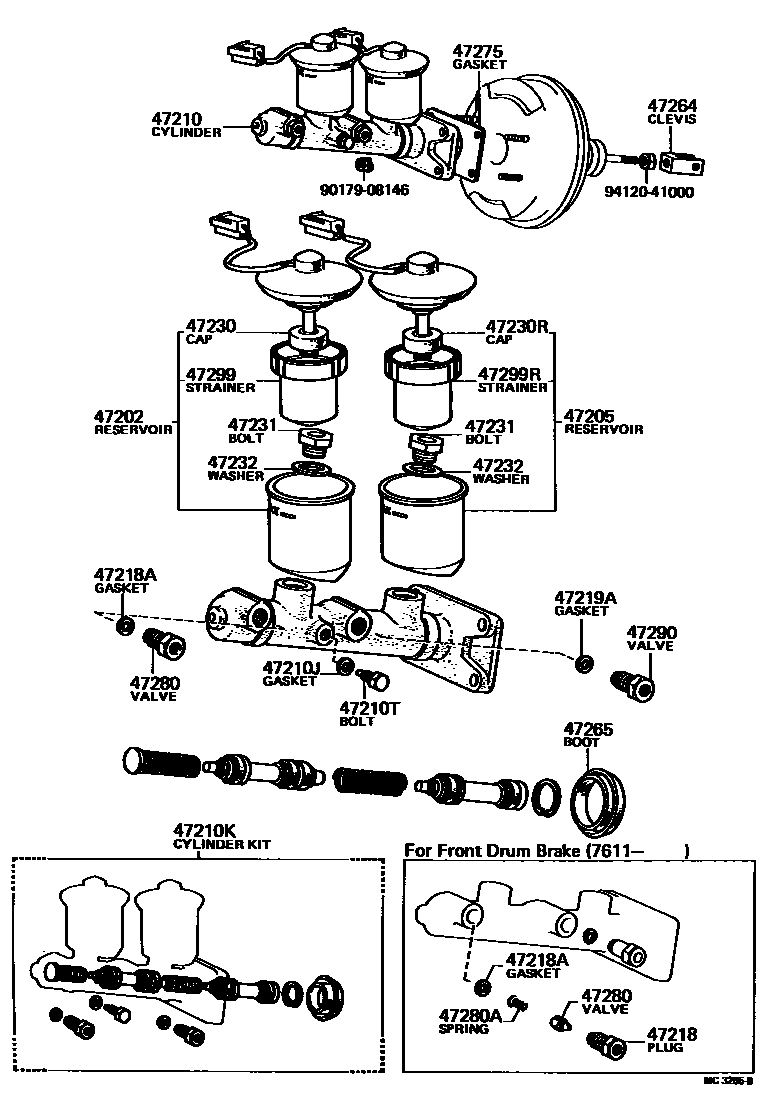

Toyota CROWN — BRAKE MASTER CYLINDER

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-30030iMS8#,95,RS80¥15,400197410-197611

main47202-30040iMS8#,95,RS80..BTP,DLX,SAL,STD197611-197908

main47202-30050iMS85..RHD..ROY197611-197802

47205RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE)

main47202-30030iMS8#,95,RS80¥15,400197410-197611

main47202-30040iMS85..LHD..ROY197611-197908

main47202-30050iMS85..RHD..ROY197611-197802

47210CYLINDER ASSY, MASTER, W/O BOOSTER

main47201-30060iMS8#,95,RS80..BTP,DLX,SAL,STD¥41,600197410-197611

FOR FRONT DISC BRAKE

main47201-30070iRS80¥41,600197410-197506

FOR FRONT DRUM BRAKE

sub47201-30072

main47201-30072iRS80197506-197611

FOR FRONT DRUM BRAKE

main47201-30080iMS85..ROY197511-197611

FOR FRONT & REAR DISC BRAKE

main47201-30090iMS8#,95,RS80..BTP,DLX,SAL,STD197611-197802

FOR FRONT DISC BRAKE,ID=23.81

main47201-30100iMS85..LHD..ROY197702-197802

ID=22.22

sub47207-30020

sub84460-20051¥5,400

main47201-30110iMS85..RHD..ROY¥41,600197611-197802

ID=22.22

sub47207-30020

sub84460-20010¥4,910

main47201-30120iMS83,85..ARL197611-197802

ID=22.22

main47201-30130iRS80..GEN¥41,600197611-197908

FOR FRONT DRUM BRAKE,ID=22.22

main47201-30140iMS8#,95,RS80..BTP,DLX,SAL,STD¥41,600197802-197908

FOR FRONT DISC BRAKE

main47201-30150iMS85..ROY¥41,600197802-197908

ID=22.22

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iMS8#,95,RS80¥100197410-197908

47210KCYLINDER KIT, BRAKE MASTER

main04493-30020iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197802

FOR FRONT DISC BRAKE

main04493-30031iRS80197410-197611

FOR FRONT DRUM BRAKE

main04493-30031iMS83,85..ARL197611-197802

main04493-30040iMS85..ROY197511-197611

FOR FRONT & REAR DISC BRAKE

main04493-30051iMS85..ROY197611-197802

main04493-30060iRS80..GEN197611-197908

FOR FRONT DRUM BRAKE

main04493-30070iMS8#,95,RS80..BTP,DLX,SAL,STD197802-197908

FOR FRONT DISC BRAKE

main04493-30080iMS85..ROY197802-197908

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iMS8#,95,RS80¥60197607-197908

main90109-06011iMS8#,95,RS80197410-197607

47218PLUG, MASTER CYLINDER FLUID OUTLET

main47218-30030iRS80..GEN¥750197611-197908

47218AGASKET(FOR FLUID OUTLET PLUG)

main90430-09253iMS8#,95,RS80¥110197410-197611

main90430-09253iMS8#,95,RS80..BTP,DLX,SAL,STD¥110197611-197908

FOR FRONT DISC BRAKE

main90430-11001iRS80..GEN¥110197611-197908

FOR FRONT DRUM BRAKE

47219AGASKET(FOR FLUID OUTLET PLUG REAR SIDE)

main90430-09253iMS8#,95,RS80¥110197410-197908

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main84460-20010iMS8#,95,RS80¥4,910197410-197802

main84460-20050iMS8#,95,RS80..BTP,DLX,SAL,STD¥4,270197611-197712

sub84460-20051¥5,400

main84460-20051iMS85..LHD..ROY¥5,400197712-197908

sub84460-12011¥5,100

47230RCAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE)

main84460-20010iMS8#,95,RS80¥4,910197410-197802

main84460-20050iMS8#,95,RS80..BTP,DLX,SAL,STD¥4,270197611-197712

sub84460-20051¥5,400

main84460-20051iMS85..LHD..ROY¥5,400197712-197908

sub84460-12011¥5,100

47231BOLT, BRAKE MASTER CYLINDER RESERVOIR SET

main47231-30010iMS8#,95,RS80¥280197410-197908

47232WASHER, BRAKE RESERVOIR SET BOLT

main47232-30010iMS8#,95,RS80¥220197410-197908

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-30020iMS8#,95,RS80197410-197908

47265BOOT, MASTER CYLINDER

main47265-20050iMS8#,95,RS80¥300197410-197908

47275GASKET, BRAKE MASTER CYLINDER

main47275-22010iMS8#,95,RS80¥250197410-197908

47280VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK

main47280-30030iMS8#,95,RS80¥860197410-197611

sub47280-14010¥800

main47280-30030iMS8#,95,RS80¥860197611-197908

FOR FRONT DISC BRAKE

sub47280-14010¥800

main47281-30020iRS80..GEN¥180197611-197908

FOR FRONT DRUM BRAKE

47280ASPRING, COMPRESSION

main90504-05001iRS80..GEN¥230197611-197908

47290VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE)

main47280-30030iMS8#,95,RS80¥860197410-197908

sub47280-14010¥800

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20010iMS8#,95,RS80¥620197410-197908

47299RSTRAINER, MASTER CYLINDER RESERVOIR, REAR

main47299-20010iMS8#,95,RS80¥620197410-197908

9017908146

main90179-08146¥180

9412041000

main94120-41000¥80

23 parts on this diagram · 1 diagram in section
