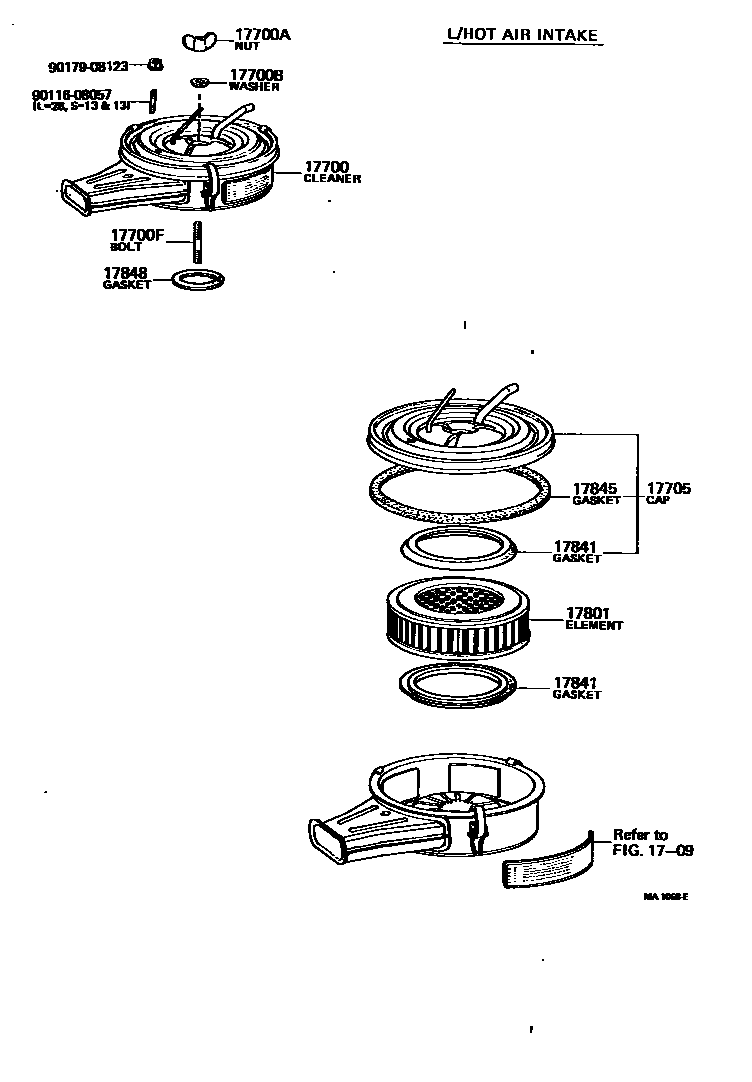

Toyota CROWN — AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1 0008 1

1709

17700CLEANER ASSY, AIR

main17700-41143i4M..MS8#,95..RHD197410-197611

L/HOT AIR INTAKE

main17700-41212i4M..MS8#,95..GEN197410-197611

W/HOT AIR INTAKE

main17700-42083i4M..MS8#,95..LHD197410-197611

L/HOT AIR INTAKE

main17700-44191i5R..RS80¥21,900197410-197802

sub17700-44192¥21,900

main17700-44192i5R..RS80¥21,900197802-197908

sub17700-44450¥20,900

sub91661-40820¥130

main17700-44250i5R..RS80..LHD..4F¥25,300197802-197908

MIDDLE EAST SPEC.

sub17700-44460

sub91661-40820¥130

main17700-44250i5R..RS80..LHD..4F¥25,300197504-197802

IRAQ TAXI SPEC.

sub17700-44460

sub91661-40820¥130

main17700-45100i4M..MS83,85..ARL197604-197609

main17700-45120i4M..MS8#,95..GEN¥25,700197611-197612

L/HOT AIR INTAKE

sub17700-45121

sub90175-06026

sub90210-09026¥220

main17700-45121i4M..MS8#,95..GEN197612-197802

L/HOT AIR INTAKE

main17700-45130i4M..MS8#,95..EUR,GEN¥52,500197611-197612

W/HOT AIR INTAKE

sub17700-45131

sub90175-06026

sub90210-09026¥220

main17700-45131i4M..MS8#,95..EUR,GEN197612-197802

W/HOT AIR INTAKE

main17700-45150i4M..MS83,85..ARL197609-197611

main17700-45160i4M..MS83,85..ARL197611-197612

sub17700-45161

sub90175-06026

sub90210-09026¥220

main17700-45161i4M..MS83,85..ARL197612-197802

main17700-45180i4M..MS85..ARL197802-197808

sub17700-45220

sub11293-45050

main17700-45190i4M..MS8#,95..EUR,GEN197802-197808

W/HOT AIR INTAKE

sub17700-45191

sub11293-45050

sub17739-45021

main17700-45191i4M..MS8#,95..EUR,GEN197808-197903

W/HOT AIR INTAKE

main17700-45192i4M..MS8#,95..EUR,GEN197903-197908

W/HOT AIR INTAKE

main17700-45200i4M..MS8#,95..GEN197802-197808

L/HOT AIR INTAKE

sub17700-45201

sub11293-45050

main17700-45201i4M..MS8#,95..GEN197808-197903

L/HOT AIR INTAKE

main17700-45202i4M..MS8#,95..GEN197903-197908

L/HOT AIR INTAKE

main17700-45220i4M..MS85..ARL197808-197903

main17700-45221i4M..MS85..ARL197903-197908

17700ANUT, WING(FOR AIR CLEANER)

main90175-06003i4M..MS8#,95197709-197908

main90175-06026i4M..MS8#,95197612-197709

main94271-00600i4M..MS8#,95¥90197410-197806

17700BWASHER, SEAL(FOR AIR CLEANER)

main90210-06023i5R..RS80¥240197410-197806

main90210-09026i4M..MS8#,95¥220197612-197709

17700FBOLT, STUD(FOR AIR CLEANER SETTING)

main90116-06143i5R..RS80¥210197410-197908

L=62,S=12&25

main90116-06147i4M..MS8#,95..LHD¥180197410-197611

L=70,S=13&30

sub90116-06230¥200

main90116-06147i4M..MS8#,95..RHD..(BTP,DLX,SAL,STD)¥180197410-197611

W/HOT AIR INTAKE,L=70,S=13&30

sub90116-06230¥200

main90116-06148i4M..MS85,88,95..RHD;4M..MS83..RHD..4F..GEN;4M..MS83..RHD..(3FC,3H)¥200197410-197611

L/HOT AIR INTAKE,L=60,S=13&30

main90116-06222i4M..MS8#,95¥230197604-197908

L=80,S=12&28

17705CAP SUB-ASSY, AIR CLEANER

main17705-41021i4M..MS85,88,95..RHD;4M..MS83..RHD..4F..GEN;4M..MS83..RHD..(3FC,3H)197410-197611

L/HOT AIR INTAKE

main17705-41090i4M..MS8#,95197609-197612

sub17705-41120

sub90175-06026

sub90210-09026¥220

main17705-41120i4M..MS8#,95197612-197908

main17705-44020i5R..RS80197410-197908

sub17705-44032

main17705-45020i4M..MS83,85..ARL197604-197609

sub17705-41090

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-33030i5R..RS80¥1,580197410-197802

sub17801-34060¥1,580

main17801-34060i5R..RS80¥1,580197802-197908

main17801-41050i4M..MS8#,95¥2,000197410-197606

sub17801-41090¥2,000

main17801-41090i4M..MS8#,95¥2,000197606-197908

main17801-44060i5R..RS80..LHD..4F197504-197802

IRAQ TAXI SPEC.

main17801-44060i5R..RS80..LHD..4F197802-197908

MIDDLE EAST SPEC.

17841GASKET, FILTER ELEMENT

main17841-33011i5R..RS80197410-197908

main17841-41040i4M..MS8#,95197410-197606

sub17841-41050

main17841-41050i4M..MS8#,95197606-197908

17845GASKET, AIR CLEANER CAP

main17845-33010i5R..RS80197410-197905

main17845-33011i5R..RS80197905-197908

sub17845-42010

main17845-41040i4M..MS83,85..ARL197410-197611

W/HOT AIR INTAKE

sub17845-61011

main17845-41040i4M..MS8#,95..LHD197410-197908

sub17845-61011

main17845-41050i4M..MS85,88,95..RHD;4M..MS83..RHD..4F..GEN;4M..MS83..RHD..(3FC,3H)197410-197611

L/HOT AIR INTAKE

17848GASKET, AIR CLEANER TO CARBURETOR

main90430-72003i4M..MS8#,95¥0197802-197908

main90430-72114i5R..RS80¥670197410-197908

9011608057

main90116-08057¥210

9017908123

main90179-08123¥160

12 parts on this diagram · 7 diagrams in section
