Toyota CROWN SPORT — METER

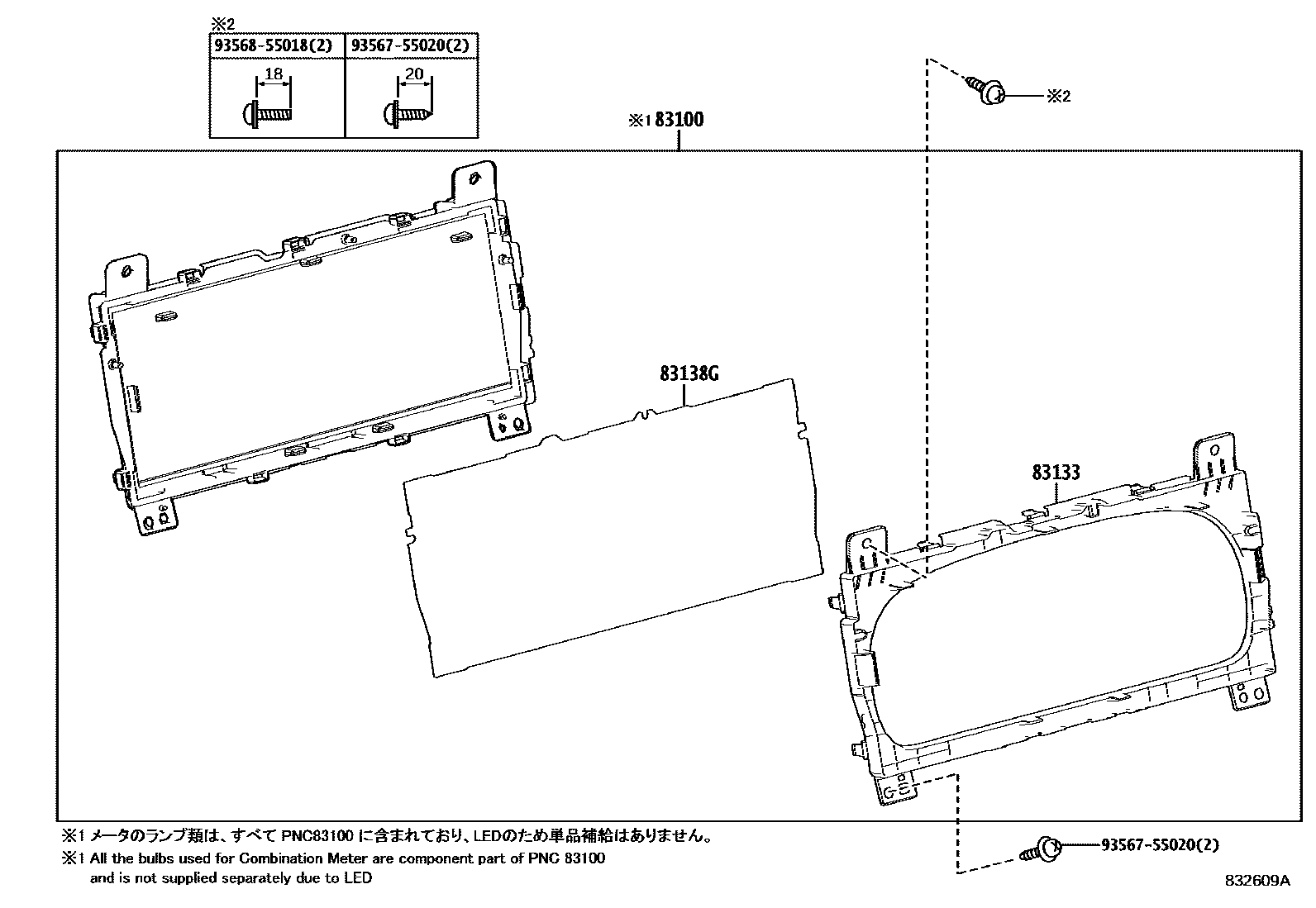

Parts diagram

83100METER ASSY, COMBINATION

main83800-3AQ70i¥109,000202308-202309

sub83800-3AQ71¥109,000

main83800-3AQ71i¥109,000202310-202401

sub83800-3AQ72¥110,000

main83800-3AQ72i¥110,000202402-202409

sub83800-3AQ73¥99,300

main83800-3AQ73i¥99,300202410

main83800-3AV60i¥137,000202312-202405

sub83800-3AV61¥137,000

main83800-3AV61i¥137,000202406-202408

sub83800-3AV62¥124,000

main83800-3AV62i¥124,000202409

83133PLATE, COMBINATION METER, NO.1

main83811-3AS10i202308

83138GGLASS, COMBINATION METER

main83852-3AS10i202308

9356755020

main93567-55020¥70

9356855018

main93568-55018¥120

5 parts on this diagram · 2 diagrams in section
