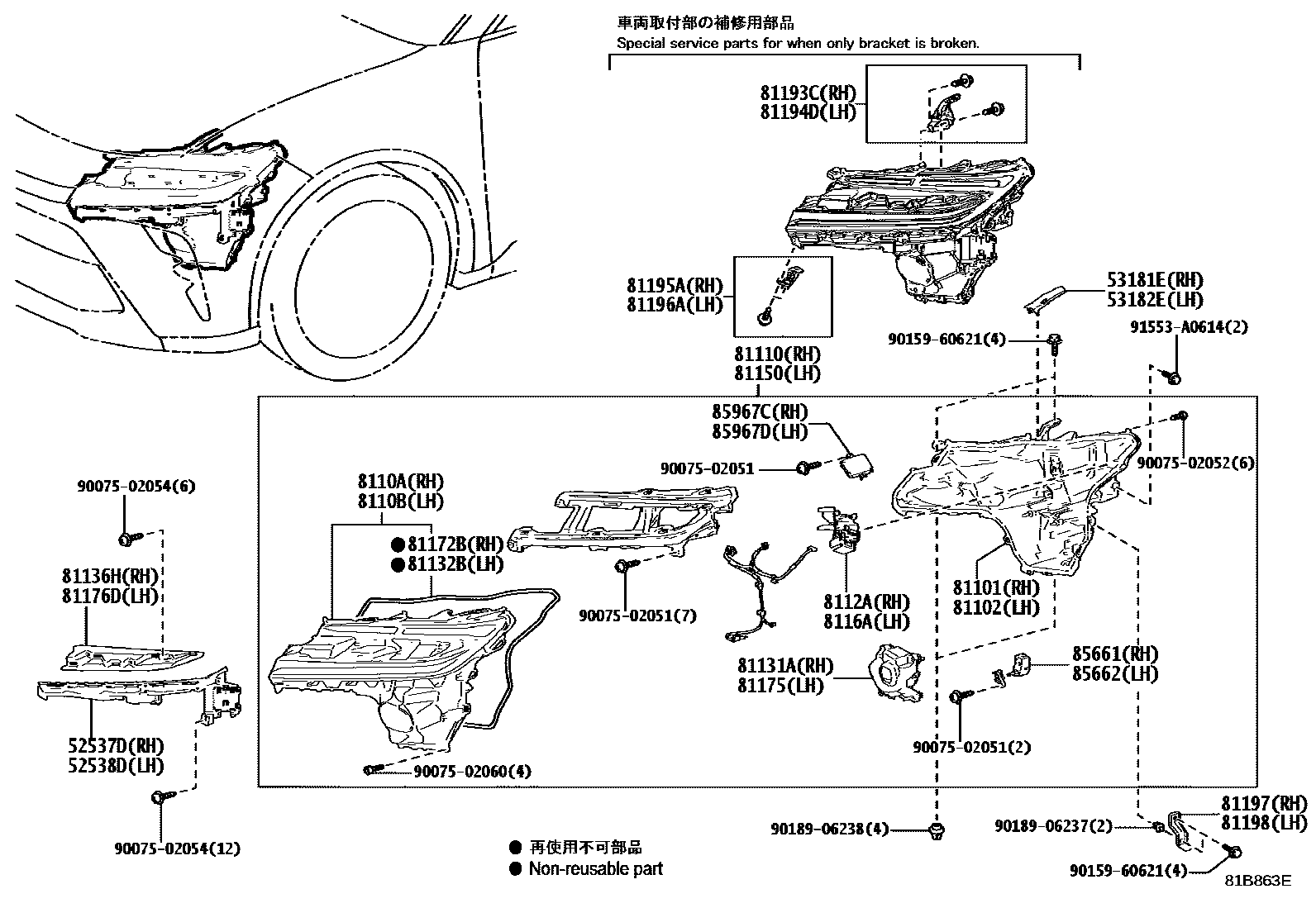

Toyota CROWN SPORT — HEADLAMP
52537DRETAINER, FRONT BUMPER END, RH
52538DRETAINER, FRONT BUMPER END, LH
53181ECOVER, HEADLAMP, RH
53182ECOVER, HEADLAMP, LH
81101HOUSING SUB-ASSY, HEADLAMP, RH
81102HOUSING SUB-ASSY, HEADLAMP, LH
8110ALENS SUB-ASSY, HEADLAMP, RH
8110BLENS SUB-ASSY, HEADLAMP, LH
81110HEADLAMP ASSY, RH
8112AUNIT, HEADLAMP CLEARANCE LED, NO.1 RH
81131AUNIT, HEADLAMP, RH
81132BGASKET, HEADLAMP LENS
81136HRIM, HEADLAMP FITTING, RH NO.1
81150HEADLAMP ASSY, LH
8116AUNIT, HEADLAMP CLEARANCE LED, NO.1 LH
81172BGASKET, HEADLAMP LENS
81175UNIT ASSY, HEADLAMP, LH
81176DRIM, HEADLAMP FITTING, LH NO.1
81193CRETAINER, RH HEADLAMP PROTECTOR, UPPER RH
81194DRETAINER, LH HEADLAMP PROTECTOR, UPPER LH
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
81197BRACKET, HEADLAMP, LOWER RH
81198BRACKET, HEADLAMP, LWR LH
85661MOTOR, HEADLAMP LEVELING, RH
85662MOTOR, HEADLAMP LEVELING, LH
85967CCOMPUTER, LIGHT CONTROL LED, RH
85967DCOMPUTER, LIGHT CONTROL LED, LH
9007502051
9007502052
9007502054
9007502060
9015960621
9018906237
9018906238
91553A0614
36 parts on this diagram · 2 diagrams in section
