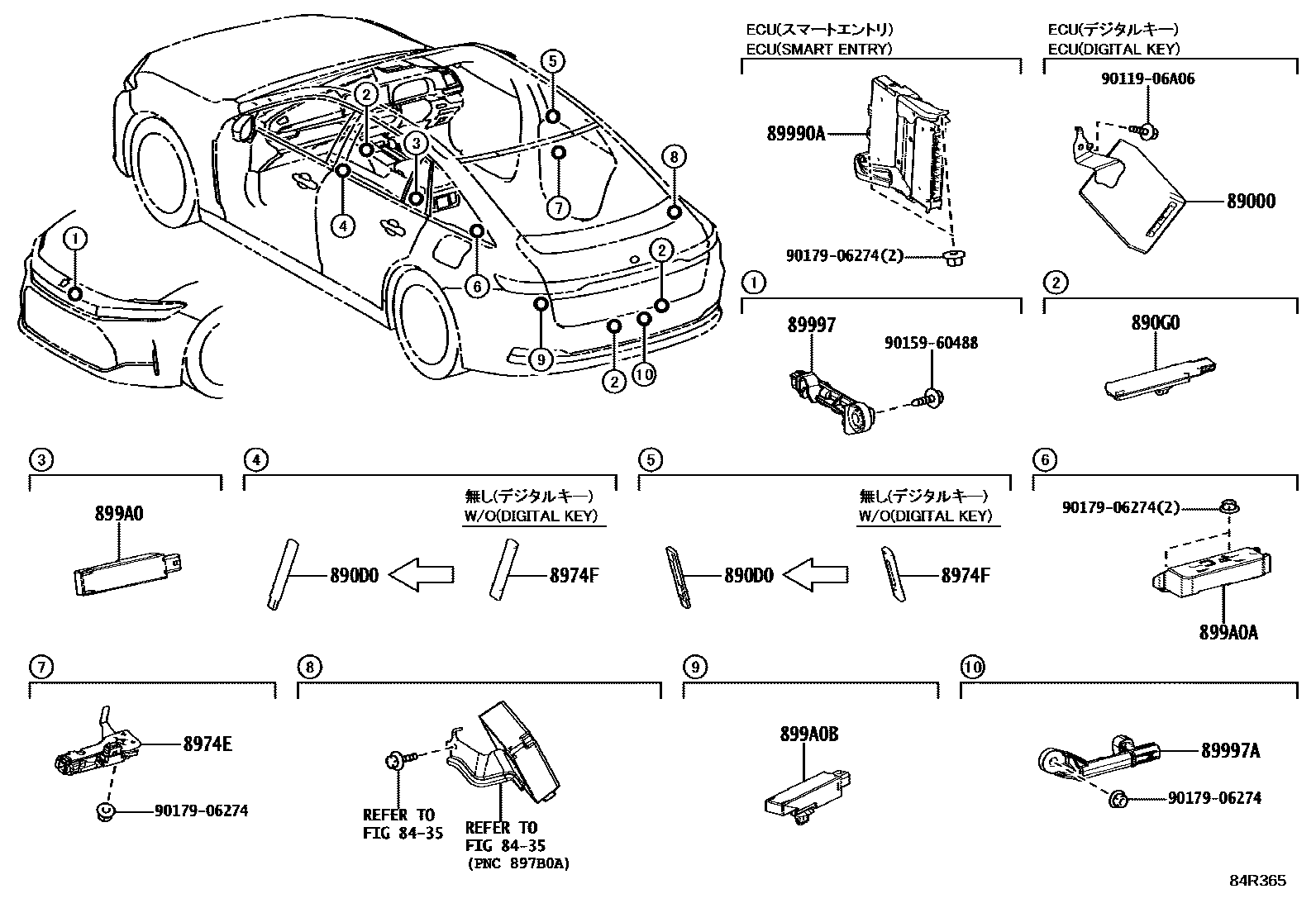

Toyota CROWN SEDAN — WIRELESS DOOR LOCK

0001 1 0002 1

8435

89000COMPUTER ASSY, DIGITAL KEY

main89000-30050iAZSH32,KZSM30¥21,600202311

890D0RECEIVER ASSY, BLE DOOR DIGITAL KEY

main890D0-78010iAZSH32,KZSM30¥7,100202311

890G0RECEIVER ASSY, BLE INDOOR DIGITAL KEY

main890G0-76010iAZSH32,KZSM30¥7,100202311

8974EANTENNA, ROOF HEADER ELECTRICAL KEY

main8974E-62010iAZSH32,KZSM30¥1,900202311

8974FCASE, W/O DIGITAL KEY

main8974F-78010¥360

89990ACOMPUTER ASSY, SMART KEY

main899H0-30170iAZSH32,KZSM30¥44,900202311

89997ANTENNA, ELECTRICAL KEY

main89997-30100iAZSH32,KZSM30..Z¥1,800202311

89997AANTENNA, ELECTRICAL KEY, NO.2

main89997-30100iAZSH32,KZSM30¥1,800202311

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-12130iAZSH32,KZSM30¥1,410202311

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-62010iAZSH32,KZSM30¥1,410202311

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-12130iAZSH32,KZSM30¥1,410202311

9011906A06

main90119-06A06¥60

9015960488

main90159-60488¥70

9017906274

main90179-06274¥70

15 parts on this diagram · 2 diagrams in section
