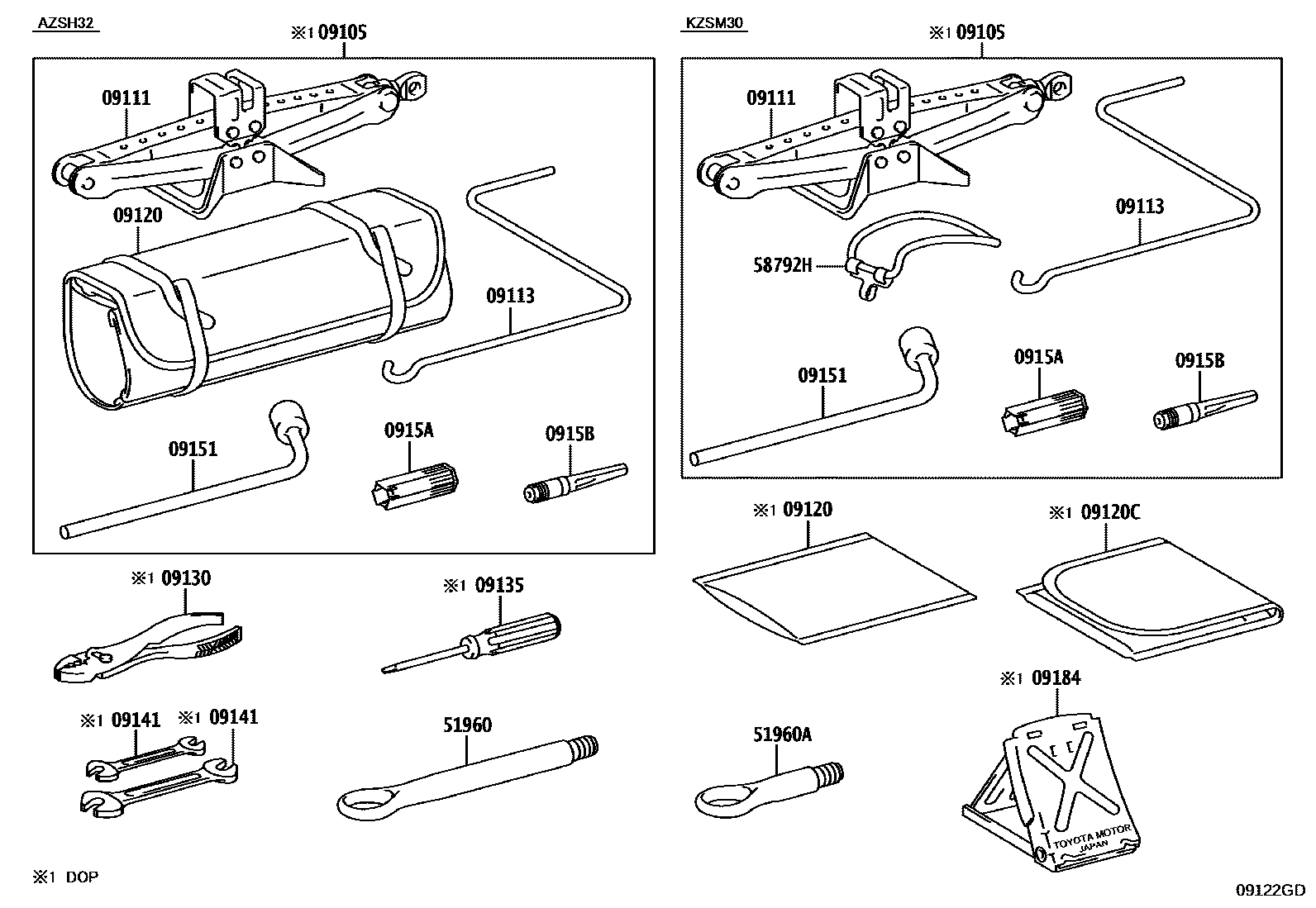

Toyota CROWN SEDAN — STANDARD TOOL

0001 1 0002 1

09105BOX SET, JACK

main09105-30070¥8,200

main09105-30080¥7,200

09111JACK SUB-ASSY

main09111-50141¥6,200

09113HANDLE, JACK

main09113-30060¥980

09120BAG, TOOL

main09120-48010¥400

main09120-76020¥4,090

main09120-28040¥250

09120CBAG,TOOL, NO.2

09130PLIERS

main99913-11500¥400

09135DRIVER, SCREW

main99915-10700¥460

09141SPANNER

main99914-11214¥400

main99914-10810¥240

09151WRENCH, HUB BOLT BOX

main09151-53010¥1,270

0915ASOCKET, HUB BOLT TEMPORARY SETTING

main0915A-53010¥1,000

0915BPIN, WHEEL GUIDE

main0915B-53010¥820

09184STOPPER, WHEEL

main09184-00010¥770

51960HOOK ASSY, FRONT

main51961-42060iAZSH32,KZSM30¥1,860202311

51960AHOOK ASSY, REAR

main51961-11020iAZSH32¥1,030202311

58792HSUPPORT, JACK CARRIER

15 parts on this diagram · 2 diagrams in section
