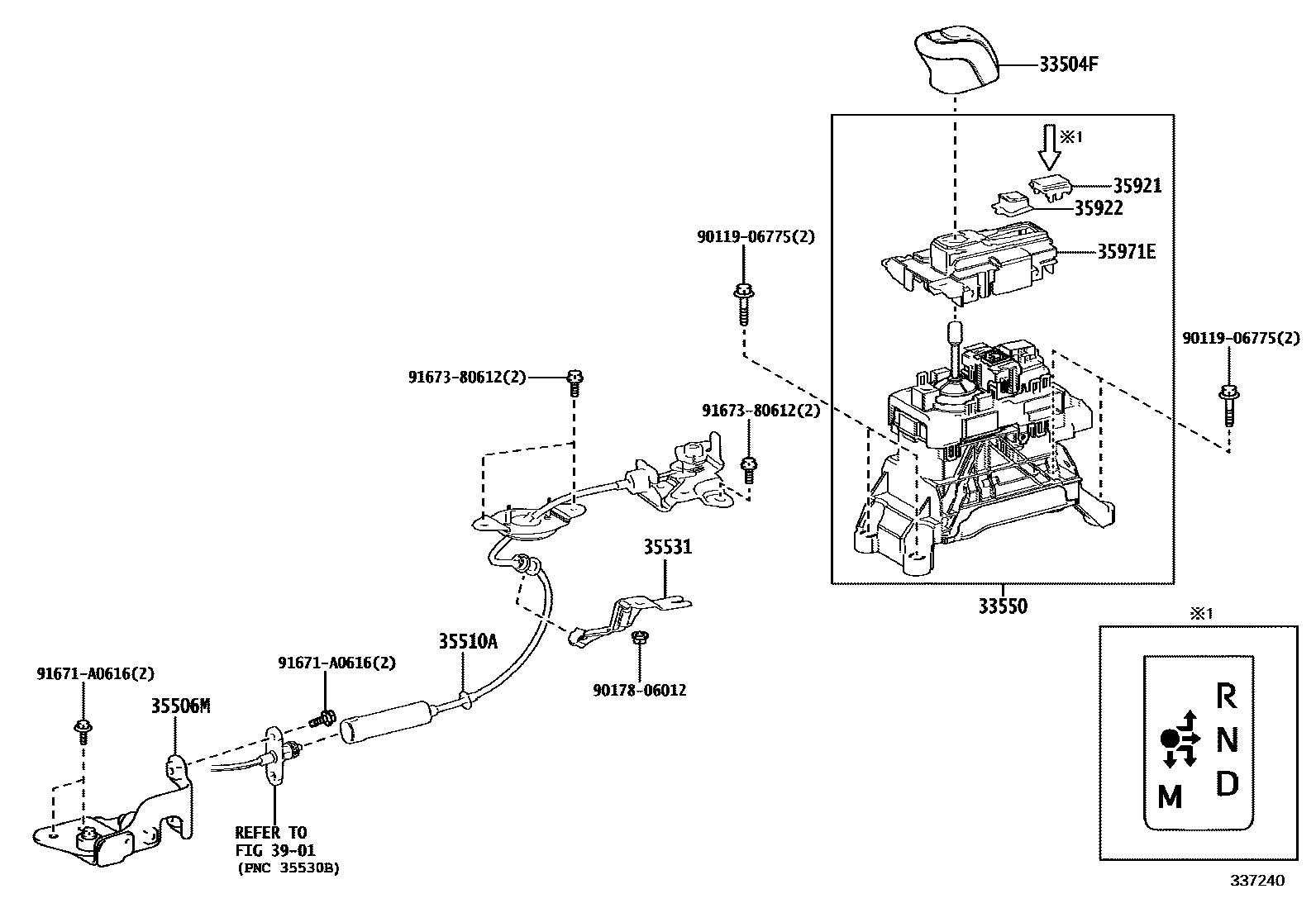

Toyota CROWN SEDAN — SHIFT LEVER & RETAINER

0001 1 0002 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-30640-C0iAZSH32,KZSM30..Z202311

BLACK,TRIM2#,4#

main33504-30640-C0iAZSH32,KZSM30..Z202311

BLACK,TRIM2#

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-30E50iKZSM30202311

main33550-30E60iAZSH32¥28,200202311

35506MBRACKET SUB-ASSY, PARKING RELEASE CABLE, NO.2

main35506-50040iAZSH32¥1,410202311

35510ALEVER ASSY, PARKING LOCK RELEASE

main35510-50090iAZSH32¥15,300202311

35531BRACKET, PARKING LOCK RELEASE CABLE CLAMP, NO.1

main35531-30020iAZSH32¥350202311

35921PLATE, CONTROL POSITION INDICATOR

main35921-30560iAZSH32¥1,270202311

main35921-30590iKZSM30202311

35922KNOB, TRANSMISSION PARKING SWITCH

main35922-30030iAZSH32,KZSM30¥460202311

35971EHOUSING, POSITION INDICATOR

main35971-30600iAZSH32,KZSM30¥1,200202311

3901

9011906775

main90119-06775¥130

9017806012

main90178-06012¥80

91671A0616

main91671-A0616¥60

9167380612

main91673-80612¥60

13 parts on this diagram · 2 diagrams in section
