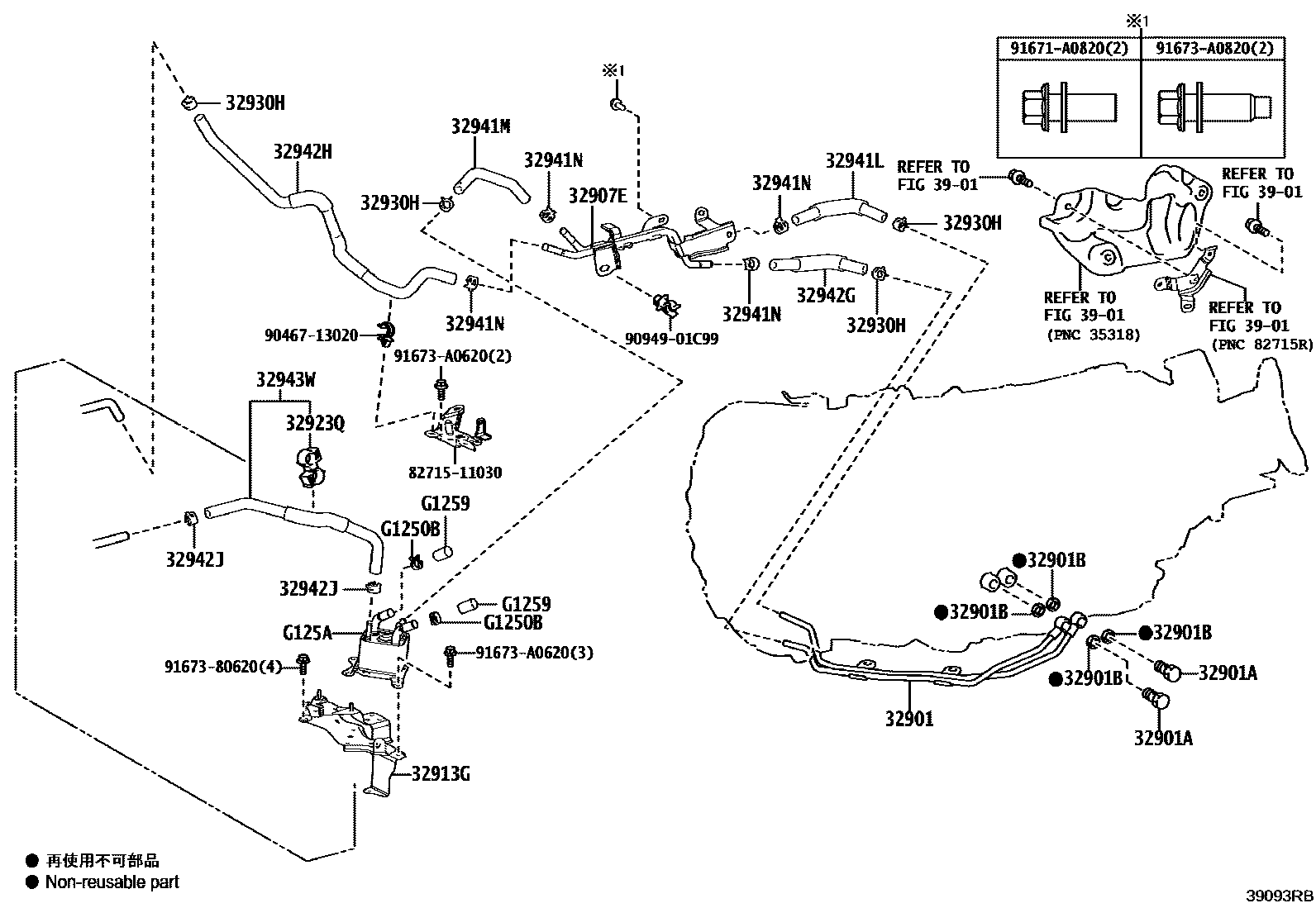

Toyota CROWN SEDAN — OIL COOLER & TUBE (HEV OR BEV OR FCEV)

0001 1 0002 1

32901UNION SUB-ASSY, OIL COOLER

main32901-30030iAZSH32202311

32901ABOLT, UNION(FOR OIL COOLER)

main90401-14003iAZSH32¥370202311

32901BGASKET(FOR OIL COOLER UNION)

main90430-14013iAZSH32¥80202311

32907ETUBE SUB-ASSY, OIL COOLER W/O HOSE

main32906-62030iKZSM30¥2,600202311

main32907-30150iAZSH32202311

32913GBRACKET, TRANSMISSION OIL COOLER

main32913-11010iAZSH32¥3,200202311

main32913-62020iKZSM30¥5,000202311

32923QCLAMP, OIL COOLER TUBE

main32923-50110iAZSH32¥410202311

32930HCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004iAZSH32¥180202311

32941LHOSE, OIL COOLER INLET, NO.1

main32941-11010iAZSH32¥1,080202311

main32941-62010iKZSM30¥1,160202311

32941MHOSE, OIL COOLER INLET, NO.2

main32941-11020iAZSH32¥980202311

main32941-62040iKZSM30¥620202311

32941NCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004iKZSM30¥180202311

32942GHOSE, OIL COOLER OUTLET, NO.1

main32942-11010iAZSH32¥1,140202311

main32942-62020iKZSM30¥850202311

32942HHOSE, OIL COOLER OUTLET, NO.2

main32942-30320iAZSH32¥2,330202311

main32942-62030iKZSM30¥850202311

32942JCLIP, NO.2(FOR OIL COOLER HOSE)

main90466-16004iAZSH32¥180202311

32943WHOSE, TRANSMISSION OIL COOLER

main32941-62030iKZSM30¥1,140202311

main32943-30330iAZSH32¥1,880202311

3901

G1250BCLIP, NO.1(FOR MOTOR COOLING PIPE)

main96138-42501iAZSH32¥180202311

G1259RUBBER, MOTOR COOLING PIPE

mainG125930020iAZSH32202311

G125ACOOLER, MOTOR COOLING

mainG125A30010iAZSH32202311

8271511030BRACKET,WIRING HARNESS CLAMP

main82715-11030¥910

9046713020

main90467-13020¥240

9094901C99

main90949-01C99¥100

91671A0820

main91671-A0820¥80

9167380620

main91673-80620¥60

91673A0620

main91673-A0620¥60

91673A0820

main91673-A0820¥80

25 parts on this diagram · 2 diagrams in section
