Toyota CROWN SEDAN — MIRROR

8106

82711TCLAMP, WIRING HARNESS

main82711-3A540iAZSH32,KZSM30¥90202311

8606

87810MIRROR ASSY, INNER REAR VIEW

main87810-VW010iAZSH32,KZSM30¥72,300202311

87908ACTUATOR ASSY, OUTER MIRROR, RH

main87908-30L30iAZSH32,KZSM30¥20,400202311

87909ACTUATOR ASSY, OUTER MIRROR, LH

main87909-30M40iAZSH32,KZSM30¥20,400202311

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-30L30iAZSH32,KZSM30¥74,200202311

87915COVER, OUTER MIRROR, RH

main87915-30060-A0iAZSH32,KZSM30202311

PRECIOUS WHITE PEARL,090

main87915-30060-B4iAZSH32,KZSM30202311

PRECIOUS SILVER,1J6

main87915-30060-C0iAZSH32,KZSM30..Z202311

BLACK,090 ,1J6 ,1L5 ,1L6 ,1M0 ,219 ,4Y6 ,M75 ,M77

main87915-30060-C0iAZSH32,KZSM30..Z202311

BLACK,090 ,1J6 ,1L5 ,1L6 ,1M0 ,219 ,4Y6

87917CSCREW, OUTER MIRROR

main87917-30K00iAZSH32,KZSM30¥180202311

8791ACOVER, OUTER MIRROR, RH NO.2

main8791A-30K90iAZSH32,KZSM30¥1,540202311

8791BACOVER, OUTER MIRROR, RH NO.3

main8791B-30L30iAZSH32,KZSM30¥800202311

87931OUTER MIRROR, RH

main87931-30K90iAZSH32,KZSM30¥6,300202311

87939ACOVER, OUTER MIRROR HOLE, RH

main87939-30K00iAZSH32,KZSM30¥750202311

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-30M40iAZSH32,KZSM30¥74,200202311

87945COVER, OUTER MIRROR, LH

main87945-30060-A0iAZSH32,KZSM30202311

PRECIOUS WHITE PEARL,090

main87945-30060-B4iAZSH32,KZSM30202311

PRECIOUS SILVER,1J6

main87945-30060-C0iAZSH32,KZSM30..Z202311

BLACK,090 ,1J6 ,1L5 ,1L6 ,1M0 ,219 ,4Y6 ,M75 ,M77

main87945-30060-C0iAZSH32,KZSM30..Z202311

BLACK,090 ,1J6 ,1L5 ,1L6 ,1M0 ,219 ,4Y6

87948ACOVER, OUTER MIRROR HOLE, LH

main87948-30K00iAZSH32,KZSM30¥750202311

8794ACOVER, OUTER MIRROR, LH NO.2

main8794A-30M00iAZSH32,KZSM30¥1,540202311

8794BACOVER, OUTER MIRROR, LH NO.3

main8794B-30M40iAZSH32,KZSM30¥850202311

87961MIRROR OUTER, LH

main87961-30M00iAZSH32,KZSM30¥6,300202311

9016440100

main90164-40100¥70

9017906274

main90179-06274¥70

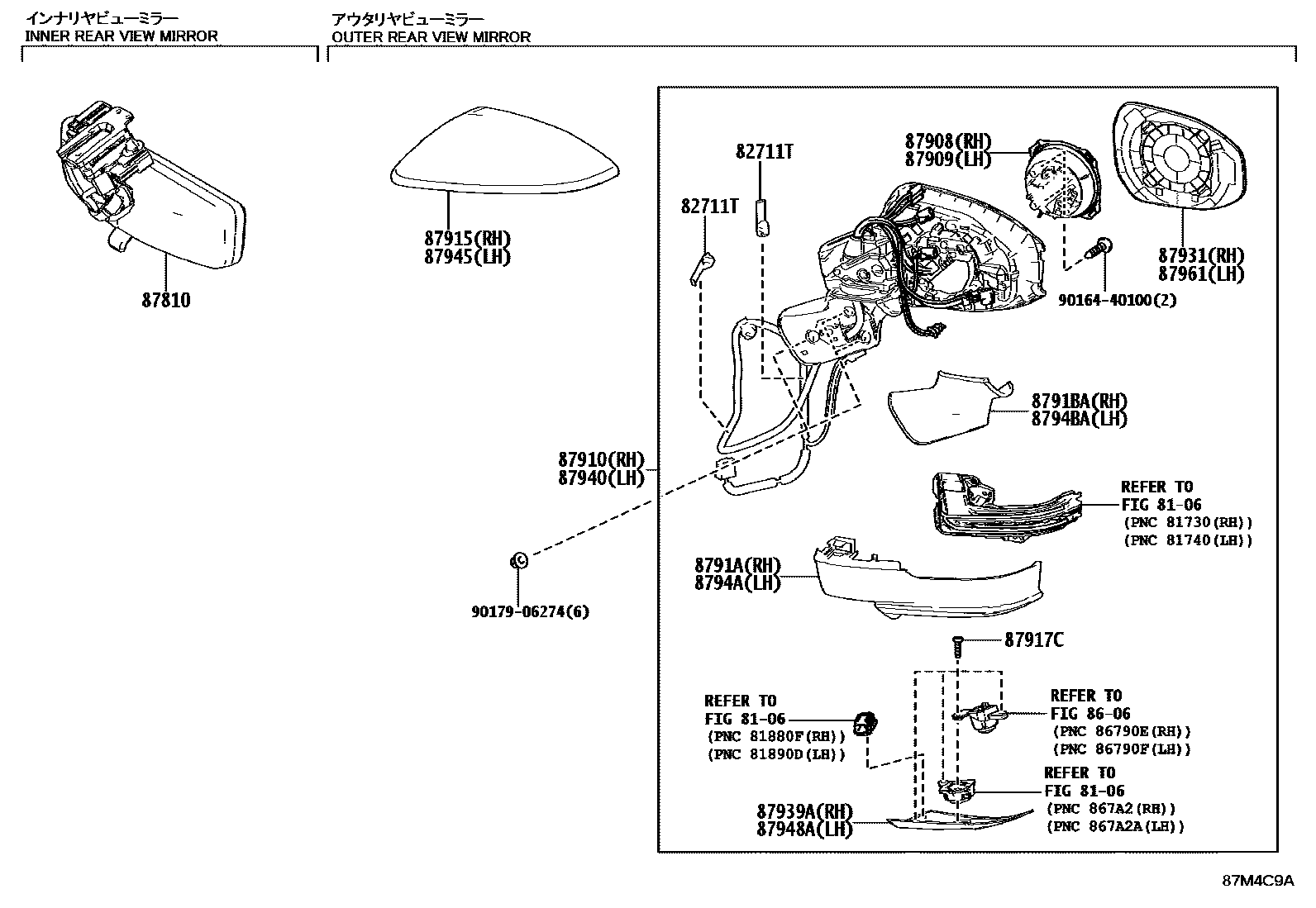

21 parts on this diagram · 1 diagram in section
