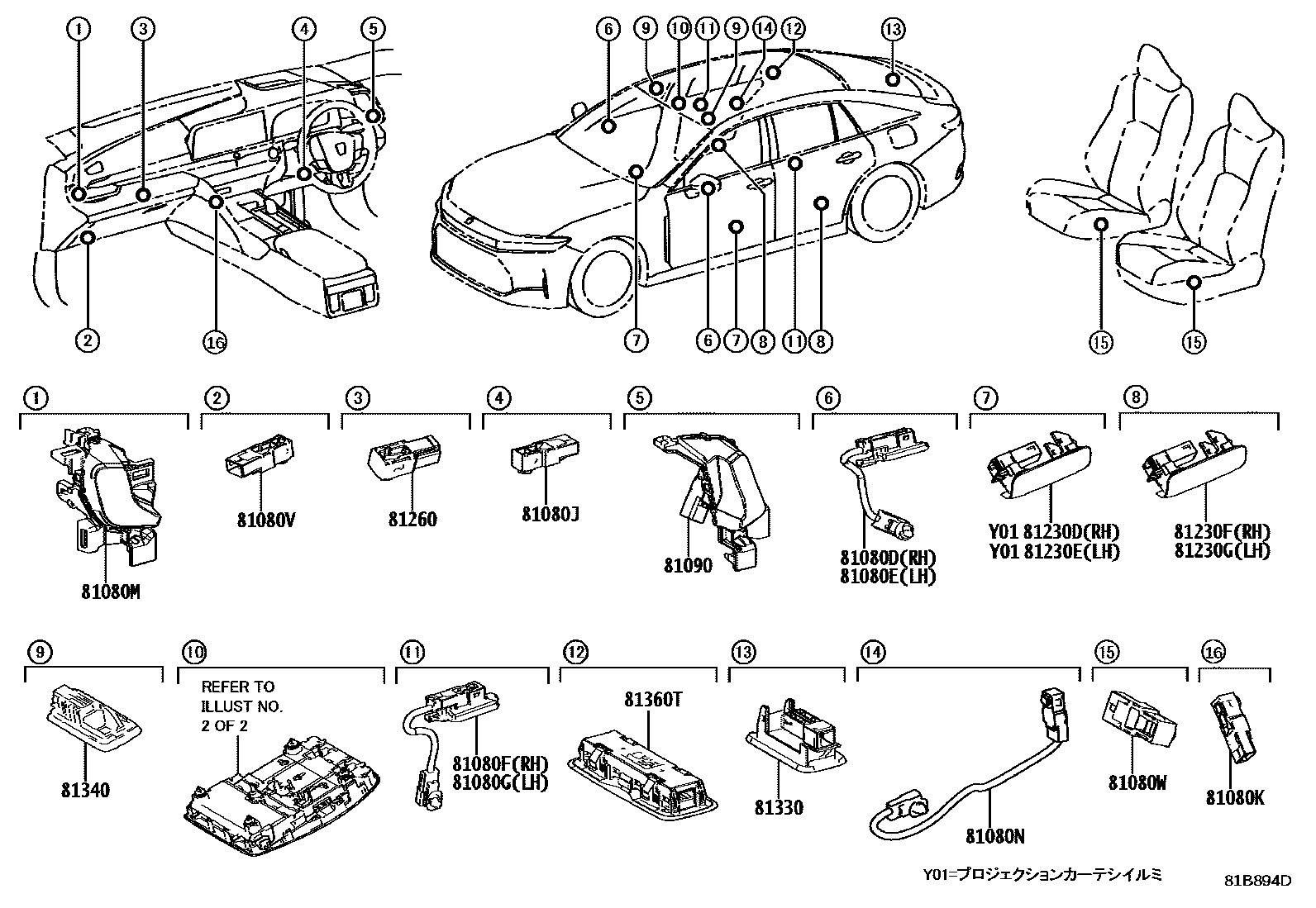

Toyota CROWN SEDAN — INTERIOR LAMP

0001 1 0002 1

81080DLAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, RH

main81080-60390iAZSH32,KZSM30¥3,230202311

81080ELAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, LH

main81080-60400iAZSH32,KZSM30¥3,230202311

81080FLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, RH

main81080-60390iAZSH32,KZSM30¥3,230202311

81080GLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, LH

main81080-60400iAZSH32,KZSM30¥3,230202311

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-78010iAZSH32,KZSM30¥1,470202311

81080KLAMP ASSY, CONSOLE BOX ILLUMINATION

main81080-30320iAZSH32,KZSM30¥1,470202311

81080MLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-30290iAZSH32,KZSM30¥2,930202311

81080NLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-30350iAZSH32,KZSM30¥2,290202311

81080VLAMP ASSY, INTERIOR ILLUMINATION, NO.2

main81080-78010iAZSH32,KZSM30¥1,470202311

81080WLAMP ASSY, INTERIOR ILLUMINATION, NO.3

main81080-78010iAZSH32,KZSM30..Z¥1,470202311

81090LAMP ASSY, INTERIOR ILLUMINATION, NO.2

main81080-30270iAZSH32,KZSM30¥2,930202311

81230DLAMP ASSY, FRONT DOOR COURTESY, RH

main81230-11030iAZSH32,KZSM30¥1,090202311

81230ELAMP ASSY, FRONT DOOR COURTESY, LH

main81230-11030iAZSH32,KZSM30¥1,090202311

81230FLAMP ASSY, REAR DOOR COURTESY, RH

main81230-11030iAZSH32,KZSM30¥1,090202311

81230GLAMP ASSY, REAR DOOR COURTESY, LH

main81230-11030iAZSH32,KZSM30¥1,090202311

81260LAMP ASSY, GLOVE BOX

main81080-33290iAZSH32,KZSM30¥920202311

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-11010iAZSH32,KZSM30¥1,090202311

81340LAMP ASSY, VANITY

main81340-33170iAZSH32,KZSM30¥990202311

81360TLAMP ASSY, SPOT

main81360-33070-C0iAZSH32,KZSM30..Z202311

BLACK,TRIM2#,4#

main81360-33070-C0iAZSH32,KZSM30..Z202311

BLACK,TRIM2#

19 parts on this diagram · 2 diagrams in section
