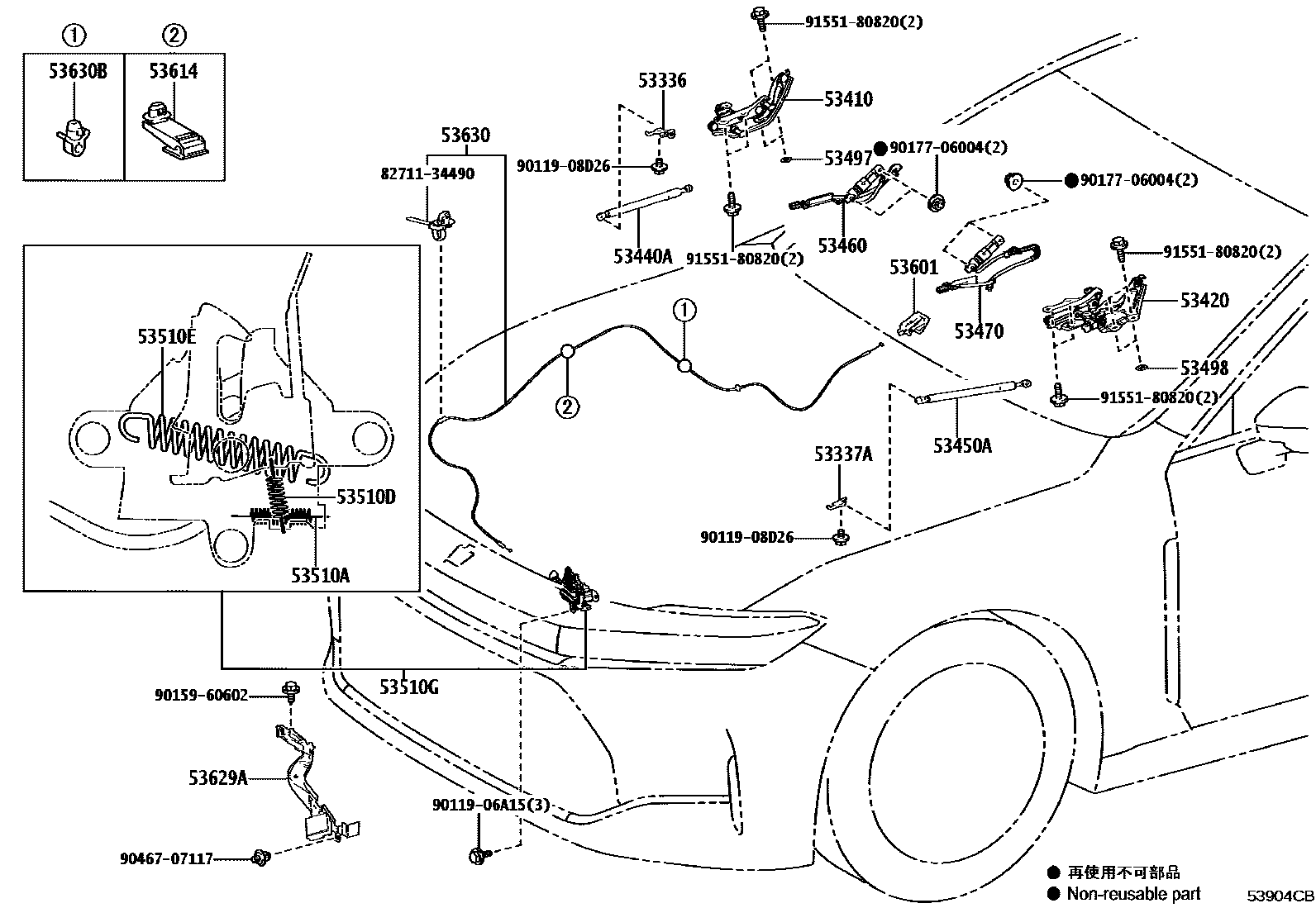

Toyota CROWN SEDAN — HOOD LOCK & HINGE

53336BRACKET, HOOD STAY, RH

main53336-50020iAZSH32,KZSM30¥260202311

53337ABRACKET, HOOD STAY, LH

main53337-50020iAZSH32,KZSM30¥260202311

53410HINGE ASSY, HOOD, RH

main53410-62070iAZSH32,KZSM30¥2,740202311

53420HINGE ASSY, HOOD, LH

main53420-62060iAZSH32,KZSM30¥2,740202311

53440ASUPPORT ASSY, HOOD, RH

main53440-0W500iAZSH32,KZSM30¥5,600202311

53450ASUPPORT ASSY, HOOD, LH

main53440-0W500iAZSH32,KZSM30¥5,600202311

53460LIFTER ASSY, POP UP HOOD, RH

main53460-62031iAZSH32,KZSM30¥45,100202311

53470LIFTER ASSY, POP UP HOOD, LH

main53470-62031iAZSH32,KZSM30¥45,100202311

53497PAD, HOOD HINGE, NO.1

main53497-50020iAZSH32,KZSM30¥140202311

53498PAD, HOOD HINGE, NO.2

main53497-50020iAZSH32,KZSM30¥140202311

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iAZSH32,KZSM30¥90202311

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iAZSH32,KZSM30¥90202311

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-16077iAZSH32,KZSM30¥120202311

53510GLOCK ASSY, HOOD, W/COURTESY LAMP SWITCH

main53510-30470iAZSH32,KZSM30¥2,930202311

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-62010-C0iAZSH32,KZSM30..Z202311

BLACK,TRIM2#,4#

main53601-62010-C0iAZSH32,KZSM30..Z202311

BLACK,TRIM2#

53614CLAMP, HOOD LOCK CONTROL CABLE

main53614-50010iAZSH32,KZSM30¥190202311

53629ACOVER, HOOD LOCK CONTROL CABLE

main53629-30110iAZSH32,KZSM30¥1,550202311

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-62030iAZSH32,KZSM30¥990202311

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90959-01369iAZSH32,KZSM30¥100202311

8271134490WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-34490¥110

9011906A15

main90119-06A15¥60

9011908D26

main90119-08D26¥80

9015960602

main90159-60602¥60

9017706004

main90177-06004¥60

9046707117

main90467-07117¥90

9155180820

main91551-80820¥80

26 parts on this diagram · 1 diagram in section
