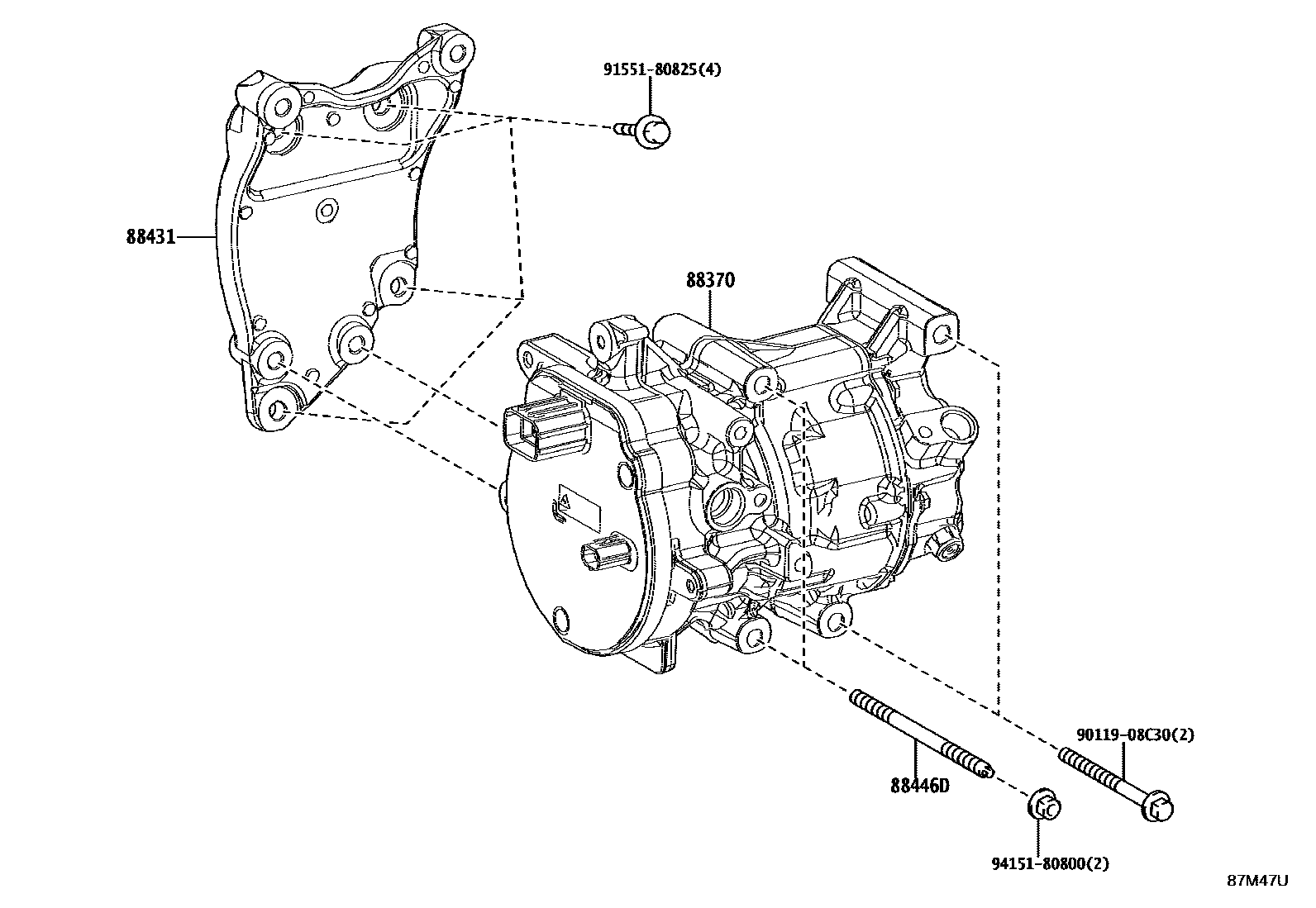

Toyota CROWN SEDAN — HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88370COMPRESSOR ASSY, W/MOTOR

main88370-30080iAZSH32202311

main88370-62021iKZSM30202311

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-30640iAZSH32202311

main88431-62030iKZSM30202311

88446DBOLT, COOLER

main88899-44010iAZSH32,KZSM30202311

9011908C30

main90119-08C30¥210

9155180825

main91551-80825¥80

9415180800

main94151-80800¥80

6 parts on this diagram · 2 diagrams in section
