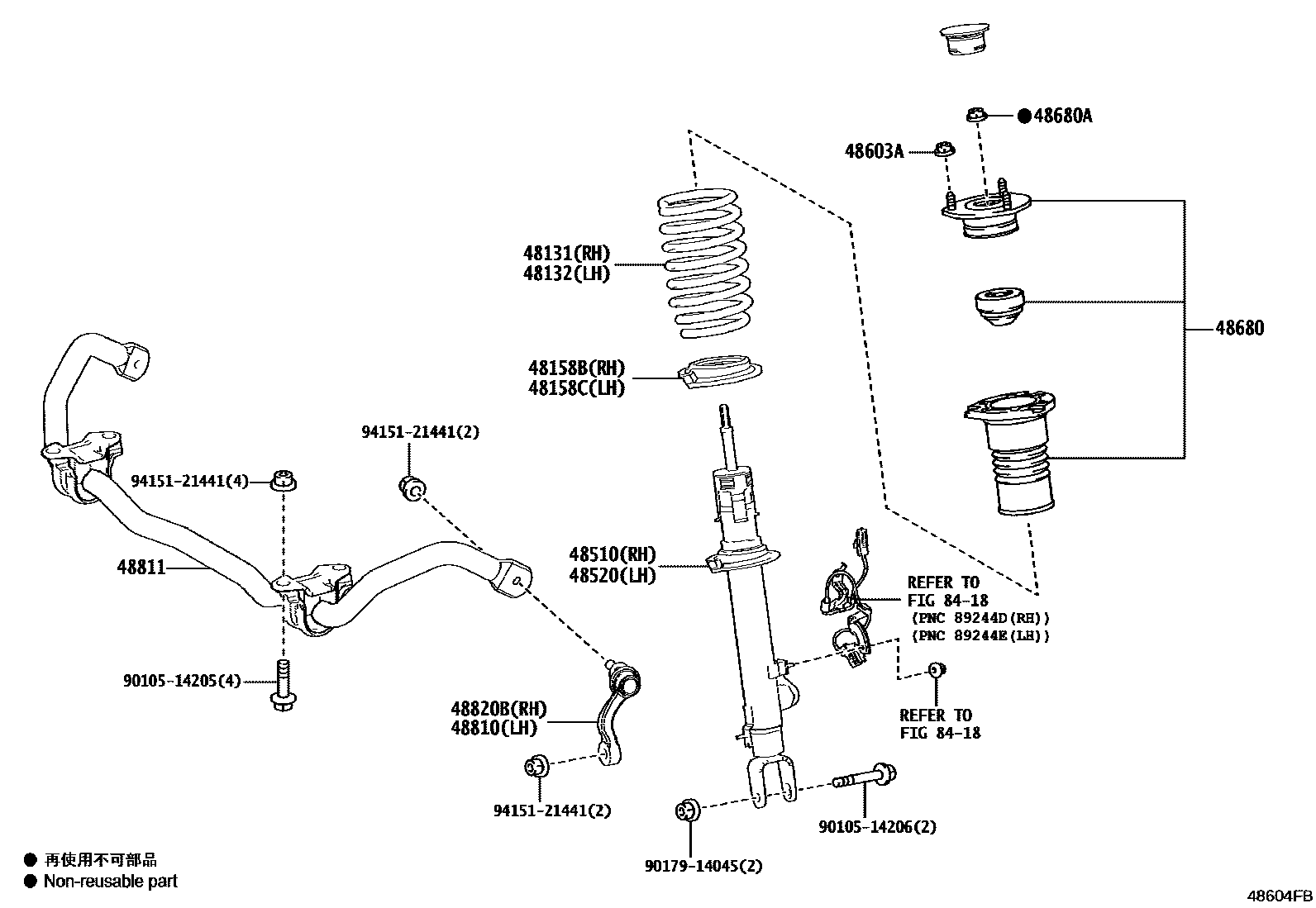

Toyota CROWN SEDAN — FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48131SPRING, FRONT COIL, RH

main48131-30G70iAZSH32¥5,700202311

main48131-30G80iKZSM30¥5,700202311

48132SPRING, FRONT COIL, LH

main48131-30G70iAZSH32¥5,700202311

main48131-30G80iKZSM30¥5,700202311

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-30020iAZSH32,KZSM30¥300202311

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-30020iAZSH32,KZSM30¥300202311

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-80C40iKZSM30¥56,300202311

main48510-80C43iAZSH32¥59,900202311

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-80792iKZSM30¥56,300202311

main48520-80794iAZSH32¥59,900202311

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10039iAZSH32,KZSM30¥100202311

48680SUPPORT ASSY, FRONT SUSPENSION

main48680-30600iAZSH32¥4,730202311

main48680-62010iKZSM30¥5,100202311

main48680-62020iKZSM30¥5,100202311

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main90177-12002iAZSH32,KZSM30¥90202311

48810LINK ASSY, FRONT STABILIZER, LH

main48810-11010iAZSH32¥5,100202311

main48810-50040iKZSM30¥5,100202311

48811BAR, STABILIZER, FRONT

main48804-11040iAZSH32¥9,900202311

main48804-50010iKZSM30¥12,400202311

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-11010iAZSH32¥5,100202311

main48820-50050iKZSM30¥5,100202311

8418

9010514205

main90105-14205¥240

9010514206

main90105-14206¥310

9017914045

main90179-14045¥120

9415121441

main94151-21441¥120

17 parts on this diagram · 2 diagrams in section
