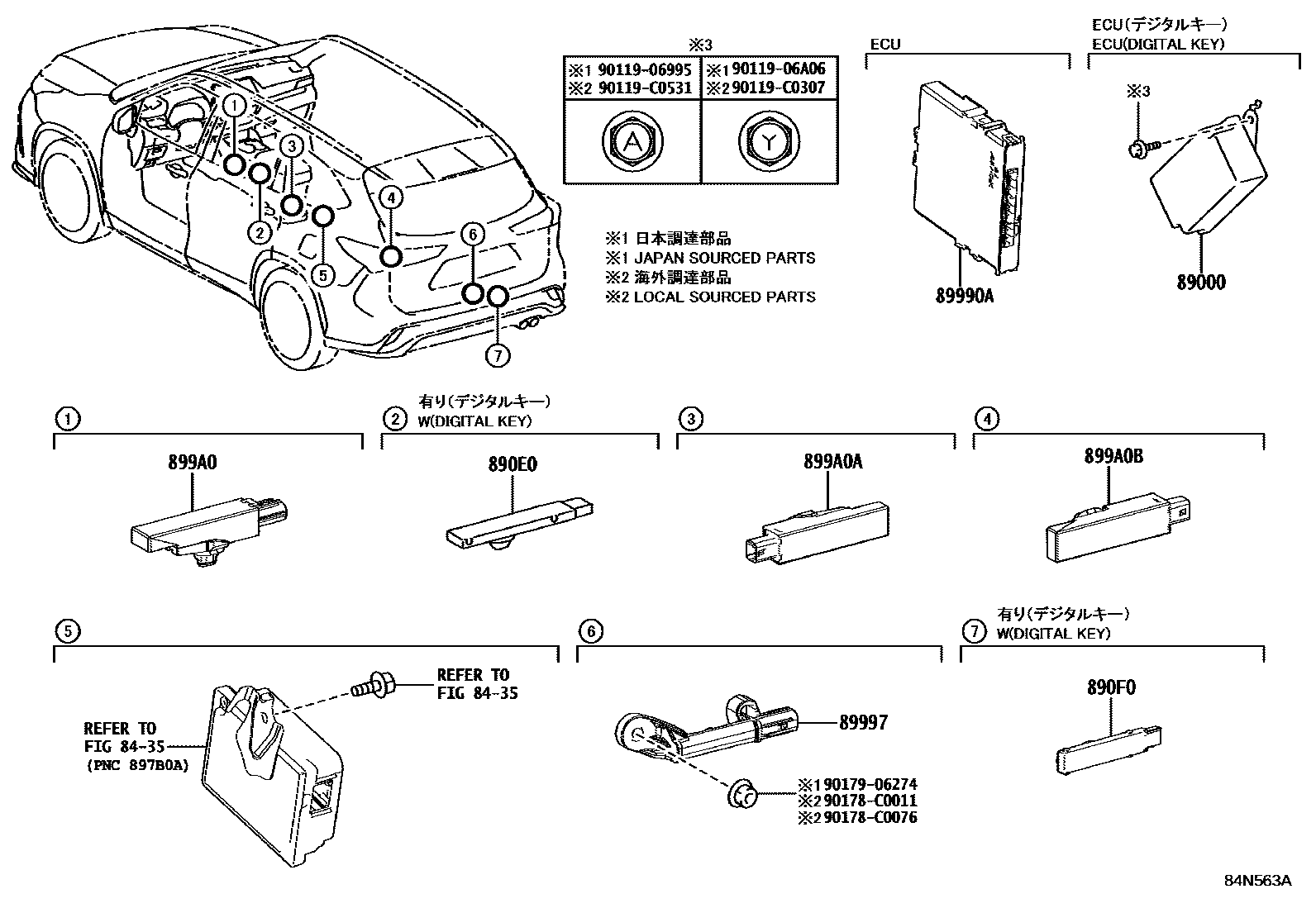

Toyota CROWN KLUGER — WIRELESS DOOR LOCK

8435

89000COMPUTER ASSY, DIGITAL KEY

main89000-0E060iAXUH7#202405

890E0RECEIVER ASSY, BLE DIGITAL KEY

main890E0-02010iAXUH7#202405

890F0RECEIVER ASSY, BLE LUGGAGE DIGITAL KEY

main890E0-0E040iAXUH7#202405

89990ACOMPUTER ASSY, SMART KEY

main899H0-0E040iAXUH7#202108-202405

main899H0-0E130iSXUA75202209-202405

main899H0-0E320iAXUH7#202405-202509

main899H0-0E330iSXUA75202405-202509

89997ANTENNA, ELECTRICAL KEY

main89997-0E060iAXUH7#,SXUA75202108-202309

sub89997-0E061

main89997-0E061iAXUH7#,SXUA75202310-202405

main89997-0E061iAXUH7#,SXUA75202405

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-0E080iAXUH7#,SXUA75202108-202405

main899A0-0E130iAXUH7#,SXUA75202405

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-0E140iAXUH7#,SXUA75202405

main899A0-0N010iAXUH7#,SXUA75202108-202405

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-0D070iAXUH7#,SXUA75202108-202405

main899A0-0R160iAXUH7#,SXUA75202405

9011906995

main90119-06995¥60

9011906A06

main90119-06A06¥60

90119C0307

main90119-C0307

90119C0531

main90119-C0531

90178C0011

main90178-C0011

90178C0076

main90178-C0076

9017906274

main90179-06274¥70

16 parts on this diagram · 1 diagram in section
