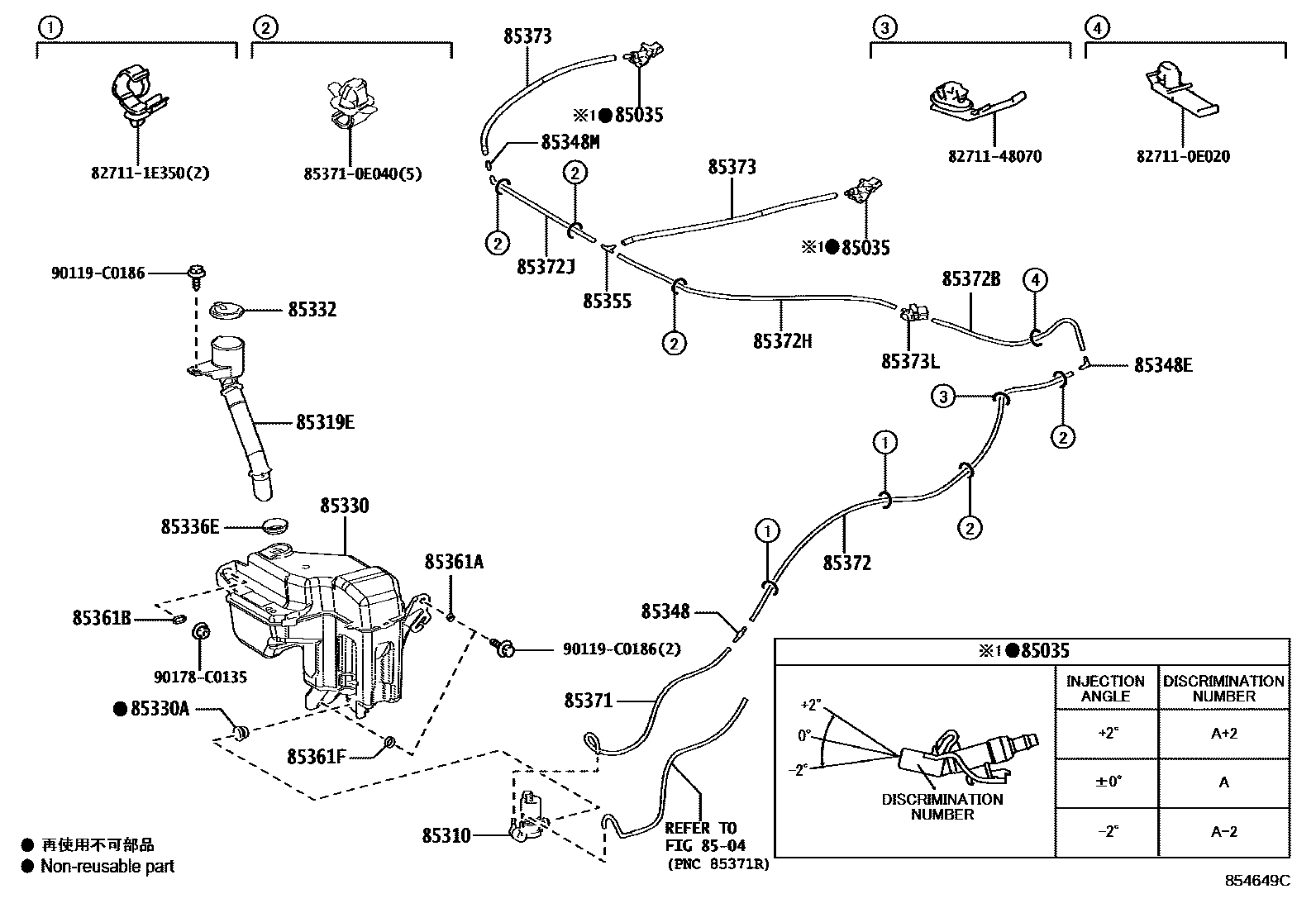

Toyota CROWN KLUGER — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
ANGLE 0
ANGLE +2
ANGLE -2
8504
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85319EINLET WASHER
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85336EPACKING, WINDSHIELD WASHER INLET HOSE
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
85355VALVE, WINDSHIELD WASHER HOSE
85361ABRACKET, WINDSHIELD WASHER, NO.1
85361BBRACKET, WINDSHIELD WASHER, NO.2
85361FBRACKET, WINDSHIELD WASHER, NO.3
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=445
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=900
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=340
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
L=600
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
L=340
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=310,ANGLE -2,ANGLE 0 OR +2
85373LGROMMET, WASHER
827110E020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-0E020
827111E350WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
8271148070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
853710E040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-0E040
90119C0186
main90119-C0186
90178C0135
main90178-C0135
28 parts on this diagram · 1 diagram in section
