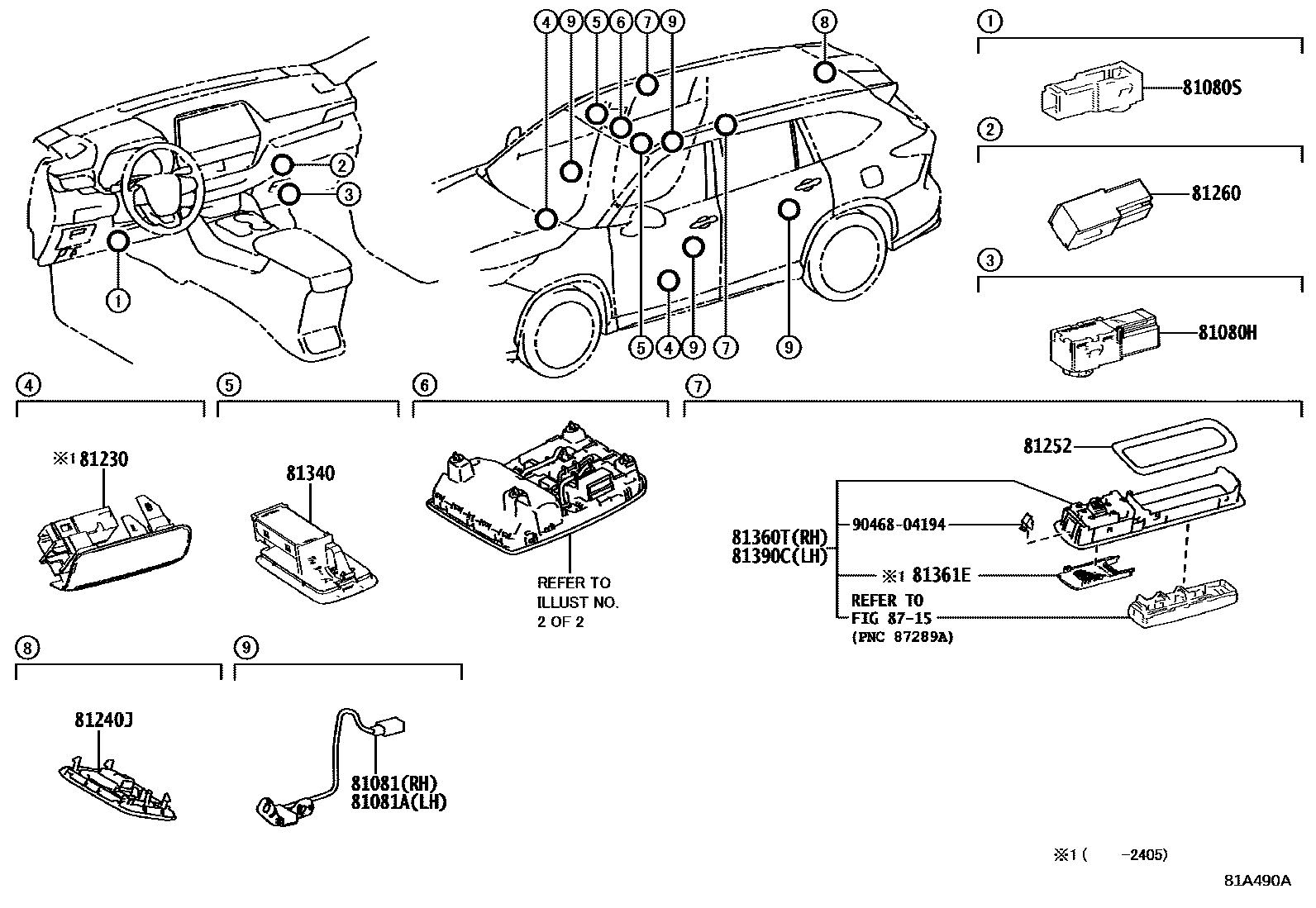

Toyota CROWN KLUGER — INTERIOR LAMP

0001 1 0002 1 0003 1

81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81080-0E060iAXUH7#,SXUA75202405-202509

main81080-0E060iSXUA75;AXUH79..G,M202108-202405

BASE+

81080SLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81080-0E060iAXUH7#,SXUA75202405-202509

main81080-0E060iAXUH79..N202108-202405

BASE+

81081LAMP SUB-ASSY, INTERIOR ILLUMINATION

main81081-0E070iAXUH7#,SXUA75202405-202509

main81081-0E070iAXUH79..N202108-202405

BASE+

81081ALAMP SUB-ASSY, INTERIOR ILLUMINATION, NO.2

main81081-0E130iAXUH79..N202108-202405

BASE+

main81081-0E130iAXUH7#,SXUA75202405-202509

81230LAMP ASSY, COURTESY

main81230-0E040iAXUH7#,SXUA75202108-202309

81240JLAMP ASSY, ROOM

main81240-0E030-C0iAXUH7#,SXUA75..M,N202108-202405

BLACK,TRIM2#

main81240-0E030-C0iAXUH7#,SXUA75..M,N202108-202405

BLACK,TRIM2#,3#

81252PACKING, ROOM LAMP

main55871-0E040iAXUH7#,SXUA75202108-202405

81260LAMP ASSY, GLOVE BOX

main81080-0E060iAXUH7#,SXUA75202108-202405

81340LAMP ASSY, VANITY

main81340-0E020iAXUH7#,SXUA75202108-202405

81360TLAMP ASSY, SPOT

main81360-0E090-C0iAXUH79,SXUA75..G202108-202405

BLACK,TRIM2#,3#

main81360-0E090-C0iAXUH79,SXUA75..G202108-202405

BLACK,TRIM2#

main81360-0E200-C0iAXUH7#,SXUA75..M,N202405

BLACK,TRIM2#

main81360-0E200-C0iAXUH79,SXUA75..G202405

BLACK,TRIM2#,3#

81361ELENS, SPOT LAMP, NO.2

main81361-0E030iAXUH7#,SXUA75202108-202405

81390CLAMP ASSY, SPOT, LH

main81390-0E050-C0iAXUH79,SXUA75..G202108-202405

BLACK,TRIM2#,3#

main81390-0E050-C0iAXUH79,SXUA75..G202108-202405

BLACK,TRIM2#

main81390-0E110-C0iAXUH79,SXUA75..G202405

BLACK,TRIM2#,3#

main81390-0E110-C0iAXUH79,SXUA75..G202405

BLACK,TRIM2#

8715

9046804194

main90468-04194¥180

14 parts on this diagram · 3 diagrams in section
