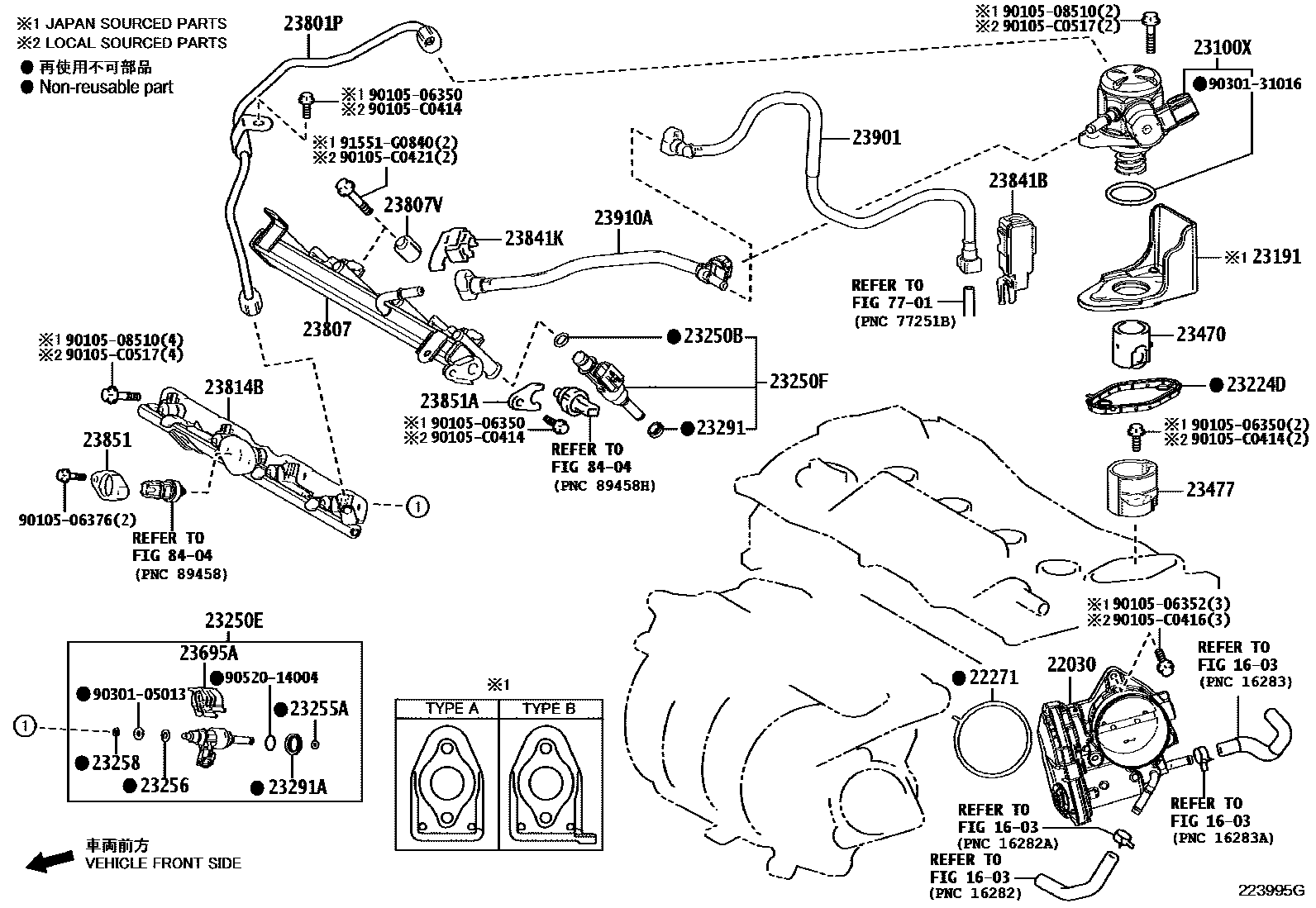

Toyota CROWN KLUGER — FUEL INJECTION SYSTEM
1603
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
(J),*667
*625,(L),*667
22271GASKET, THROTTLE BODY
(J),*667
*625,(L),*667
23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)
*625,*667
23191FLANGE, FUEL PUMP
*625T/P A:REF.ILLUST,*667T/P A:REF.ILLUST
*667T/P B:REF.ILLUST,*625T/P B:REF.ILLUST
*625,*667
23224DGASKET, FUEL PUMP SPACER
*625,*667
23250BRING, O(FOR FUEL INJECTOR)
*625,(J),*667
(L),*667
23250EINJECTOR ASSY, FUEL(FOR DIRECT)
MARK 1,(J),*667:REFER R/M
MARK 2,(J),*667:REFER R/M
MARK 3,(J),*667:REFER R/M
MARK 4,(J),*667:REFER R/M
MARK 5,(J),*667:REFER R/M
MARK 6,(J),*667:REFER R/M
MARK 7,(J),*667:REFER R/M
MARK 8,(J),*667:REFER R/M
MARK 9,(J),*667:REFER R/M
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
MARK 5,REFER REPAIR MANUAL
MARK 6,REFER REPAIR MANUAL
MARK 7,REFER REPAIR MANUAL
MARK 8,REFER REPAIR MANUAL
MARK 9,REFER REPAIR MANUAL
MARK 1,*625:REFER R/M,(L),*667:REFER R/M
MARK 2,*625:REFER R/M,(L),*667:REFER R/M
MARK 3,*625:REFER R/M,(L),*667:REFER R/M
MARK 4,*625:REFER R/M,(L),*667:REFER R/M
MARK 5,*625:REFER R/M,(L),*667:REFER R/M
MARK 6,*625:REFER R/M,(L),*667:REFER R/M
MARK 7,*625:REFER R/M,(L),*667:REFER R/M
MARK 8,*625:REFER R/M,(L),*667:REFER R/M
MARK 9,*625:REFER R/M,(L),*667:REFER R/M
23250FINJECTOR ASSY, FUEL(FOR PORT)
(J),*667
*625,(L),*667
23255ASEAL, FUEL INJECTOR
*625,*667
23256RING, FUEL INJECTOR BACK-UP, NO.1
*625,*667
23258RING, FUEL INJECTOR BACK-UP, NO.3
*667,BLACK
*625,*667,ORANGE
23291INSULATOR, INJECTOR VIBRATION
*625,*667
23291AINSULATOR, INJECTOR VIBRATION
*625,*667
23470LIFTER ASSY, FUEL PUMP
*625,*667
23477GUIDE, FUEL PUMP LIFTER
*625,*667
23695ACLAMP, NOZZLE HOLDER
*625,*667
23801PPIPE SUB-ASSY, FUEL, NO.1
(J),*667
*625,(L),*667
23807PIPE SUB-ASSY, FUEL DELIVERY
*625,*667
(J),*667,(J),*625
(L),*667,(L),*625
23807VSPACER, NO.1(FOR DELIVERY PIPE)
*625,*667
23814BPIPE, FUEL DELIVERY
*625,*667
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23841KCLAMP, FUEL PIPE
(J)
(L)
23851HOLDER, FUEL PRESSURE SENSOR, NO.1
*625,*667
23851AHOLDER, FUEL PRESSURE SENSOR, NO.2
*625,*667
23901TUBE SUB-ASSY, FUEL
23910ATUBE SUB-ASSY, FUEL
7701
8404
9010506350
9010506352
9010506376
9010508510
90105C0414
main90105-C0414
90105C0416
main90105-C0416
90105C0421
main90105-C0421
90105C0517
main90105-C0517
9030105013
9030131016
9052014004
91551G0840
41 parts on this diagram · 2 diagrams in section
