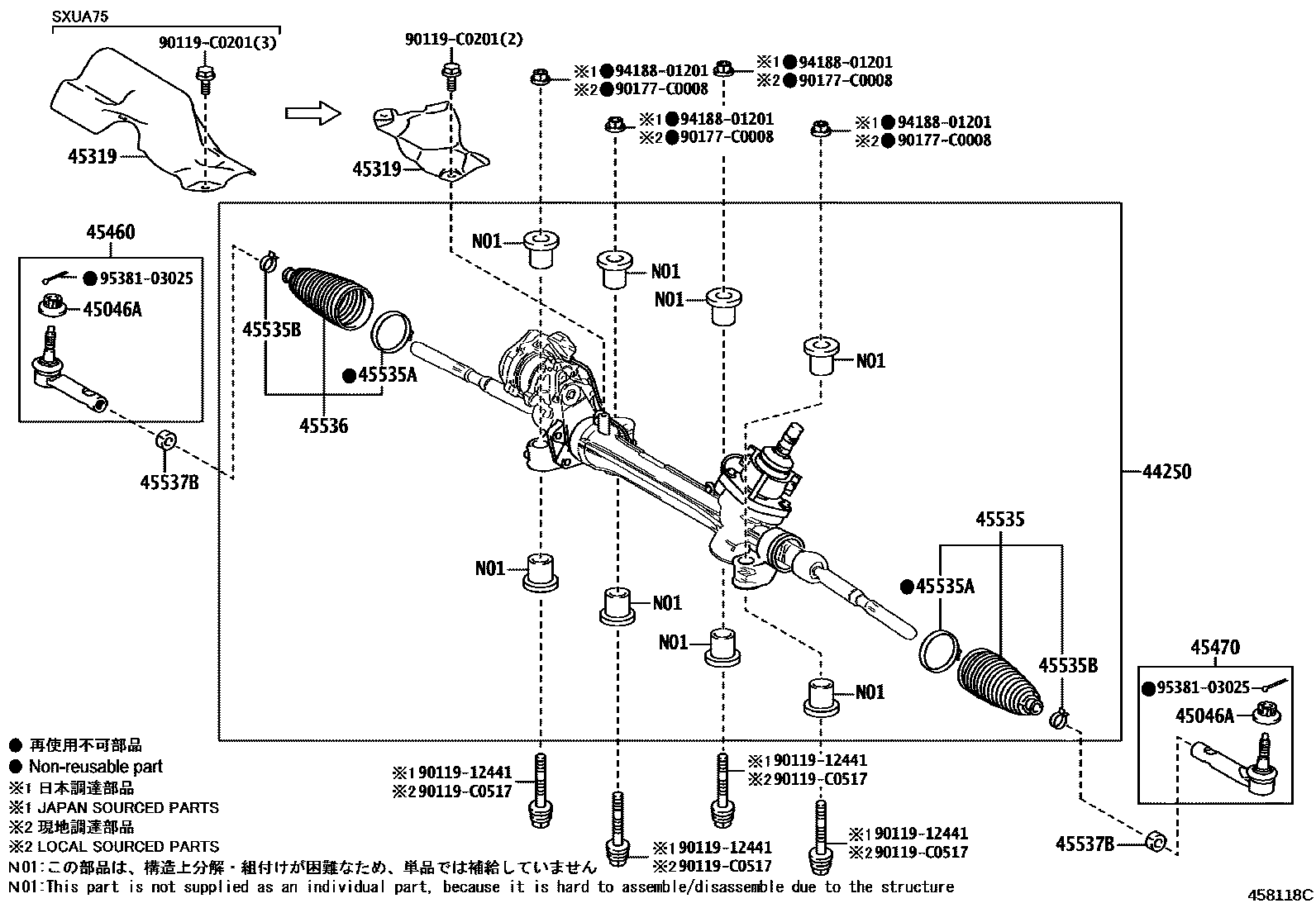

Toyota CROWN KLUGER — FRONT STEERING GEAR & LINK

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-0E210iAXUH7#202108-202208

sub44250-0E211

main44250-0E211iAXUH7#,SXUA75202209-202405

main44250-0E300iAXUH7#202405

main44250-0E310iSXUA75202405

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12015iAXUH7#,SXUA75¥190202108-202411

main90171-12015iAXUH7#,SXUA75¥190202411

(J)

main90171-C0014iAXUH7#,SXUA75202411

(L)

45319INSULATOR, STEERING GEAR HEAT

main45319-0E060iSXUA75202209-202405

main45319-0R020iAXUH7#202108-202405

45460ROD ASSY, TIE, RH

main45460-09410iAXUH7#,SXUA75202108-202405

45470ROD ASSY, TIE, LH

main45460-09410iAXUH7#,SXUA75202108-202405

45535BOOT, STEERING RACK, NO.1

main45535-09640iAXUH7#,SXUA75202108-202405

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-06040iAXUH7#,SXUA75202108-202405

45535BCLIP(FOR STEERING RACK BOOT)

main45537-0D030iAXUH7#,SXUA75202108-202405

45536BOOT, STEERING RACK, NO.2

main45535-09640iAXUH7#,SXUA75202108-202405

45537BNUT, RACK END LOCK

main90178-16001iAXUH7#¥120202108-202405

(J)

main90178-C0015iAXUH7#202108-202405

(L)

main90178-C0015iSXUA75202209-202405

9011912441

main90119-12441¥360

90119C0201

main90119-C0201

90119C0517

main90119-C0517

90177C0008

main90177-C0008

9418801201

main94188-01201¥160

9538103025

main95381-03025¥130

16 parts on this diagram · 1 diagram in section
