Toyota CROWN KLUGER — FRONT FENDER APRON & DASH PANEL

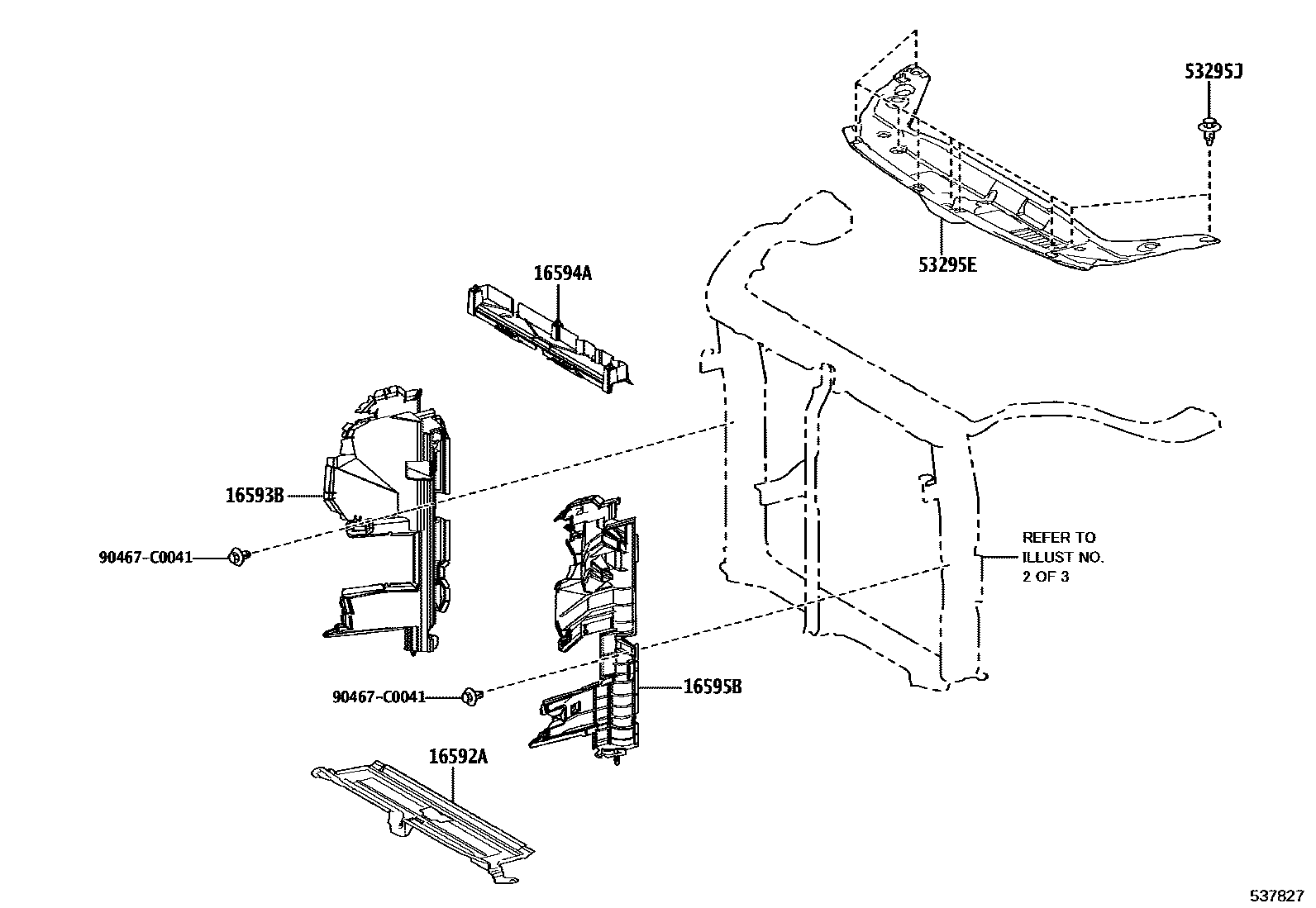

0001 1AIRGUIDE & RADIATOR SUPPORT C0002 1RADIATOR SUPPORT & FENDER APR0003 1DASH PANEL

16592AGUIDE, RADIATOR AIR, NO.3

main16592-F0060iA25,S20..AXUH7#,SXUA75202405

main16592-F0060iA25,S20..AXUH7#,SXUA75202108-202405

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-F0310iA25..AXUH7#202405

main16593-F0310iA25..AXUH7#202108-202405

main16593-F0570iS20..SXUA75202209-202405

main16593-F0570iS20..SXUA75202405

16594AGUIDE, RADIATOR AIR, NO.2

main16594-F0060iA25,S20..AXUH7#,SXUA75202108-202405

main16594-F0060iA25,S20..AXUH7#,SXUA75202405

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-F0330iA25..AXUH7#202108-202405

main16595-F0330iA25..AXUH7#202405

main16595-F0590iS20..SXUA75202405

main16595-F0590iS20..SXUA75202209-202405

53295ESEAL, COOL AIR INTAKE DUCT

main53295-0E150iAXUH7#,SXUA75202108-202405

main53295-0E150iAXUH7#,SXUA75202405

53295JCLIP, COOL AIR INTAKE DUCT SEAL

main90467-C0051iAXUH7#,SXUA75202108-202405

main90467-C0051iAXUH7#,SXUA75202405

90467C0041

main90467-C0041

7 parts on this diagram · 3 diagrams in section
