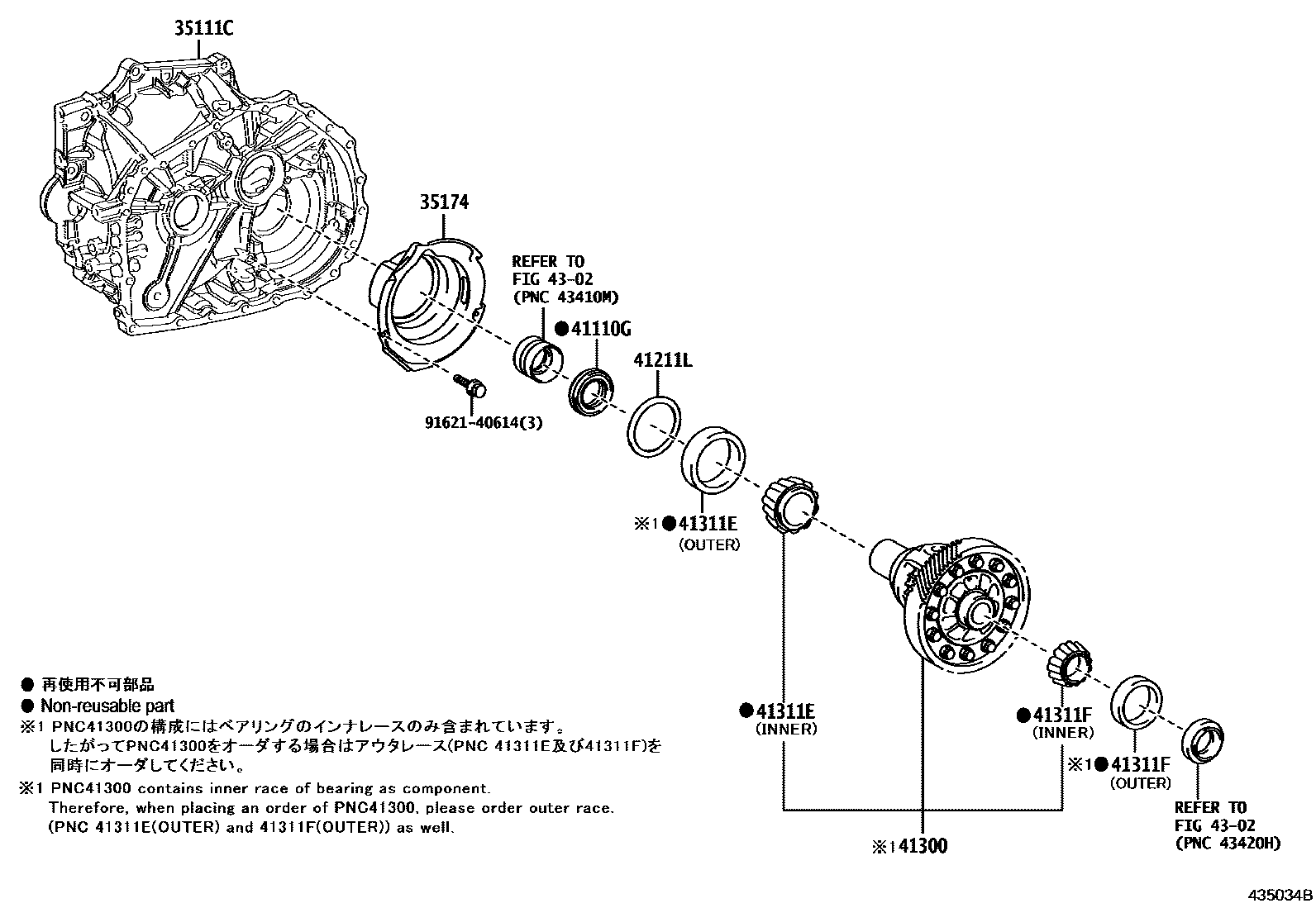

Toyota CROWN KLUGER — FRONT AXLE HOUSING & DIFFERENTIAL
35111CHOUSING, TRANSAXLE
35174SEPARATOR, TRANSAXLE HOUSING OIL
41110GSEAL, OIL (FOR DIFFERENTIAL SIDE)
41211LSHIM (FOR DIFFERENTIAL DRIVE PINION)
T=1.10,MARK 50
T=1.10,MARK 50
T=1.13,MARK 51
T=1.13,MARK 51
T=1.16,MARK 52
T=1.16,MARK 52
T=1.19,MARK 53
T=1.19,MARK 53
T=1.22,MARK 54
T=1.22,MARK 54
T=1.25,MARK 55
T=1.25,MARK 55
T=1.28,MARK 56
T=1.28,MARK 56
T=1.31,MARK 57
T=1.31,MARK 57
T=1.34,MARK 58
T=1.34,MARK 58
T=1.37,MARK 59
T=1.37,MARK 59
T=1.40,MARK 60
T=1.40,MARK 60
T=1.43,MARK 61
T=1.43,MARK 61
T=1.46,MARK 62
T=1.46,MARK 62
T=1.49,MARK 63
T=1.49,MARK 63
T=1.52,MARK 64
T=1.52,MARK 64
T=1.55,MARK 65
T=1.55,MARK 65
T=1.58,MARK 66
T=1.58,MARK 66
T=1.61,MARK 67
T=1.61,MARK 67
T=1.64,MARK 68
T=1.64,MARK 68
T=1.67,MARK 69
T=1.67,MARK 69
T=1.70,MARK 70
T=1.70,MARK 70
T=1.73,MARK 71
T=1.73,MARK 71
T=1.76,MARK 72
T=1.76,MARK 72
T=1.79,MARK 73
T=1.79,MARK 73
T=1.82,MARK 74
T=1.82,MARK 74
T=1.85,MARK 75
T=1.85,MARK 75
T=1.88,MARK 76
T=1.88,MARK 76
T=1.91,MARK 77
T=1.91,MARK 77
T=1.94,MARK 78
T=1.94,MARK 78
T=1.97,MARK 79
T=1.97,MARK 79
T=2.00,MARK 80
T=2.00,MARK 80
41300CASE ASSY, FRONT DIFFERENTIAL, W/RING GEAR
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
OUTER
OUTER
INNER
INNER
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
INNER
OUTER
OUTER
4302
9162140614
9 parts on this diagram · 1 diagram in section
