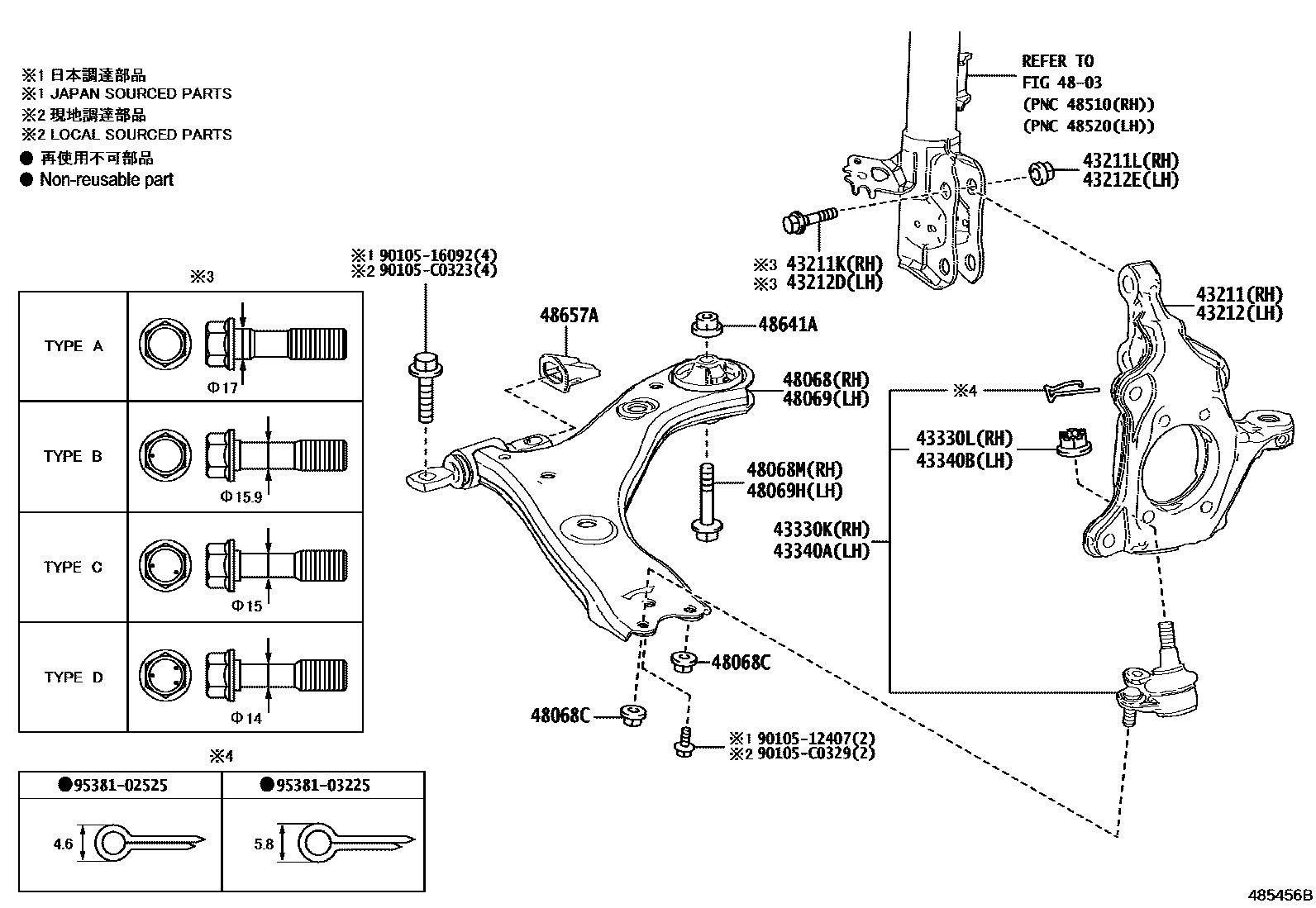

Toyota CROWN KLUGER — FRONT AXLE ARM & STEERING KNUCKLE
43211KBOLT (FOR STEERING KNUCKLE RH)
OD=15.9,TYPE B:REFER ILLUST.
OD=15.9,TYPE B:REFER ILLUST.
OD=15,TYPE C:REFER ILLUST.
OD=15,TYPE C:REFER ILLUST.
OD=14,TYPE D:REFER ILLUST.
OD=14,TYPE D:REFER ILLUST.
OD=17,(J),TYPE A:REF ILL.
OD=17,(J),TYPE A:REF ILL.
OD=17,(L),TYPE A:REF ILL.
OD=17,(L),TYPE A:REF ILL.
43211LNUT (FOR STEERING KNUCKLE RH)
(J)
(J)
(L)
(L)
43212DBOLT (FOR STEERING KNUCKLE LH)
OD=15.9,TYPE B:REFER ILLUST.
OD=15.9,TYPE B:REFER ILLUST.
OD=15,TYPE C:REFER ILLUST.
OD=15,TYPE C:REFER ILLUST.
OD=14,TYPE D:REFER ILLUST.
OD=14,TYPE D:REFER ILLUST.
OD=17,(J),TYPE A:REF ILL.
OD=17,(J),TYPE A:REF ILL.
OD=17,(L),TYPE A:REF ILL.
OD=17,(L),TYPE A:REF ILL.
43212ENUT (FOR STEERING KNUCKLE LH)
(J)
(J)
(L)
(L)
43330KJOINT ASSY, LOWER BALL, FRONT RH
43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
43340AJOINT ASSY, LOWER BALL, FRONT LH
43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
4803
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068CNUT(FOR FRONT SUSPENSION LOWER ARM)
(J)
(J)
(L)
(L)
48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
(J)
(J)
(L)
(L)
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
(J)
(J)
(L)
(L)
48641ANUT(FOR SUSPENSION LOWER ARM SHAFT)
(L)
(L)
(J)
(J)
48657ASTOPPER, FRONT LOWER ARM BUSH
9010512407
9010516092
90105C0323
main90105-C0323
90105C0329
main90105-C0329
9538102525
9538103225
24 parts on this diagram · 1 diagram in section
