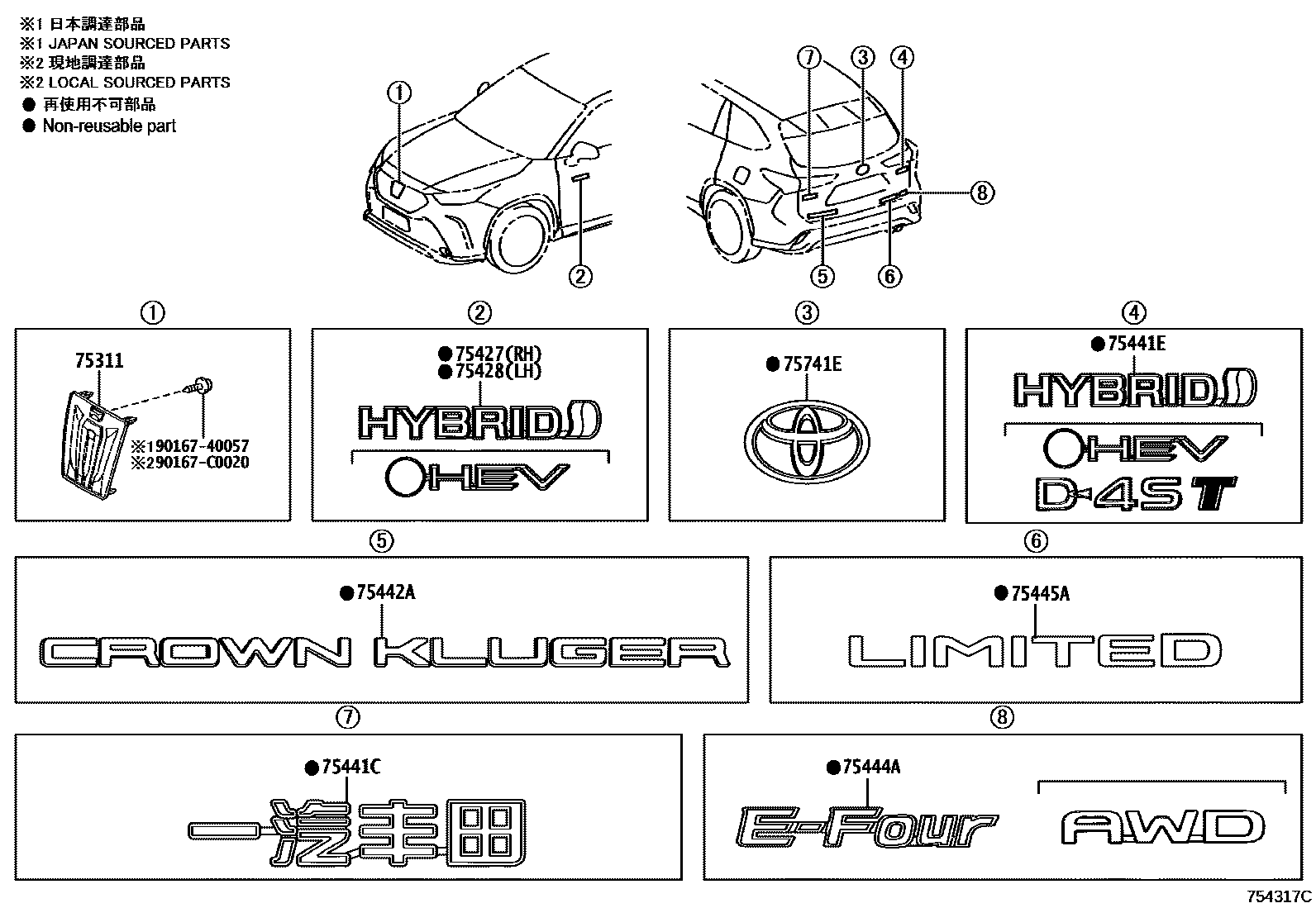

Toyota CROWN KLUGER — EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main53141-0E140iAXUH7#202108-202405

(L)

main53141-0E150iSXUA75202209-202405

(L)

main53141-0E210iSXUA75;AXUH7#..G,M202405

(L)

main53141-30210iSXUA75¥27,600202209-202405

(J)

main53141-30220iAXUH7#¥30,400202108-202405

(J)

75427PLATE, FRONT DOOR NAME

main75427-0E060iAXUH7#202108-202405

main75440-0E040iAXUH7#202405

RH

75428PLATE, FRONT DOOR NAME, NO.2

main75428-0E010iAXUH7#202108-202405

main75440-0E040iAXUH7#202405

LH

75441CPLATE, BACK DOOR NAME

main75441-0E120iAXUH7#,SXUA75202108-202302

main75441-0E121iAXUH7#,SXUA75202303-202405

main75441-0E121iAXUH7#,SXUA75202405

75441EPLATE, BACK DOOR NAME, NO.1

main75440-0E050iAXUH7#202405

HEV

main75441-0E070iAXUH7#202108-202405

HYBRID

main75441-0E150iSXUA75202405

D-4ST

main75441-0E150iSXUA75202209-202405

D-4ST

75442APLATE, BACK DOOR NAME, NO.2

main75442-0E130iAXUH7#,SXUA75202108-202405

CROWN KLUGER

main75442-0E130iAXUH7#,SXUA75202405

CROWN KLUGER

75444APLATE, BACK DOOR NAME, NO.4

main75444-0E130iAXUH79202405

E-FOUR

main75444-0E130iAXUH79202108-202405

E-FOUR

main75444-0E260iSXUA75202209-202405

AWD

main75444-0E260iSXUA75202405

AWD

75445APLATE, BACK DOOR NAME, NO.5

main75445-0E160iAXUH79,SXUA75..G202108-202405

LIMITED

main75445-0E160iAXUH79,SXUA75..G202405

LIMITED

75741EEMBLEM, SYMBOL

main75403-0E040iAXUH7#202108-202405

main90975-02071iSXUA75¥1,750202209-202405

main90975-02071iAXUH7#,SXUA75¥1,750202405

9016740057

main90167-40057¥60

90167C0020

main90167-C0020

11 parts on this diagram · 1 diagram in section
