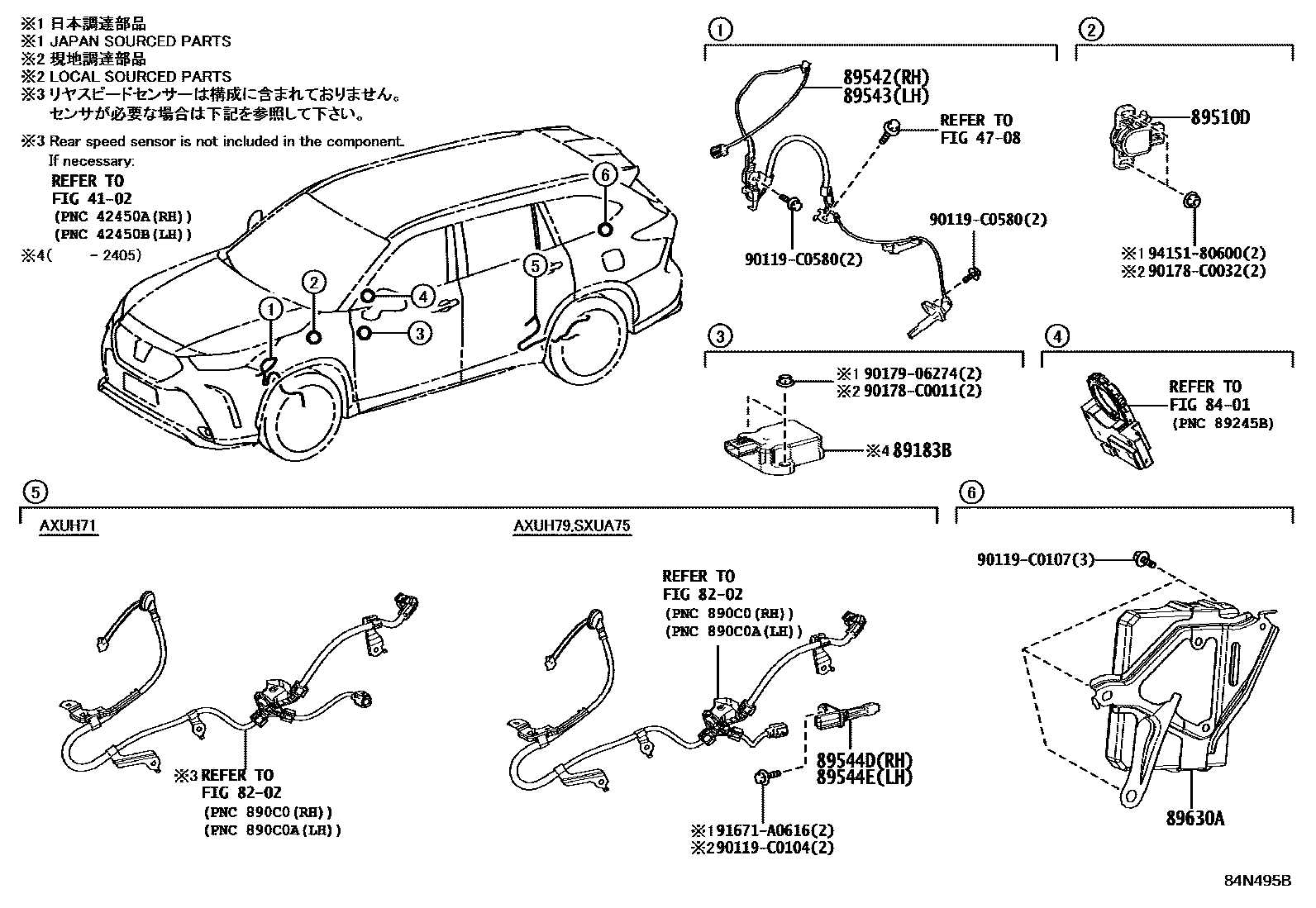

Toyota CROWN KLUGER — ABS & VSC

4102

4708

8202

8401

89183BSENSOR, YAWRATE

main89183-50040iAXUH7#¥75,300202108-202405

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-02020iAXUH7#202108-202405

main89510-0R040iAXUH7#202405

89542SENSOR, SPEED, FRONT RH

main89542-0E100iAXUH7#,SXUA75202108-202405

main89542-0E100iAXUH7#,SXUA75202405

89543SENSOR, SPEED, FRONT LH

main89543-0E100iAXUH7#,SXUA75202108-202405

main89543-0E100iAXUH7#,SXUA75202405

89544DSENSOR, SKID CONTROL, REAR RH

main89544-0E060iAXUH79,SXUA75202108-202405

main89544-0E060iAXUH79,SXUA75202405

89544ESENSOR, SKID CONTROL, REAR LH

main89544-0E060iAXUH79,SXUA75202108-202405

main89544-0E060iAXUH79,SXUA75202405

89630ACOMPUTER ASSY, 4WD

main89630-48180iSXUA75202209-202405

main89630-48200iSXUA75202405

90119C0104

main90119-C0104

90119C0107

main90119-C0107

90119C0580

main90119-C0580

90178C0011

main90178-C0011

90178C0032

main90178-C0032

9017906274

main90179-06274¥70

91671A0616

main91671-A0616¥60

9415180600

main94151-80600¥60

19 parts on this diagram · 1 diagram in section
