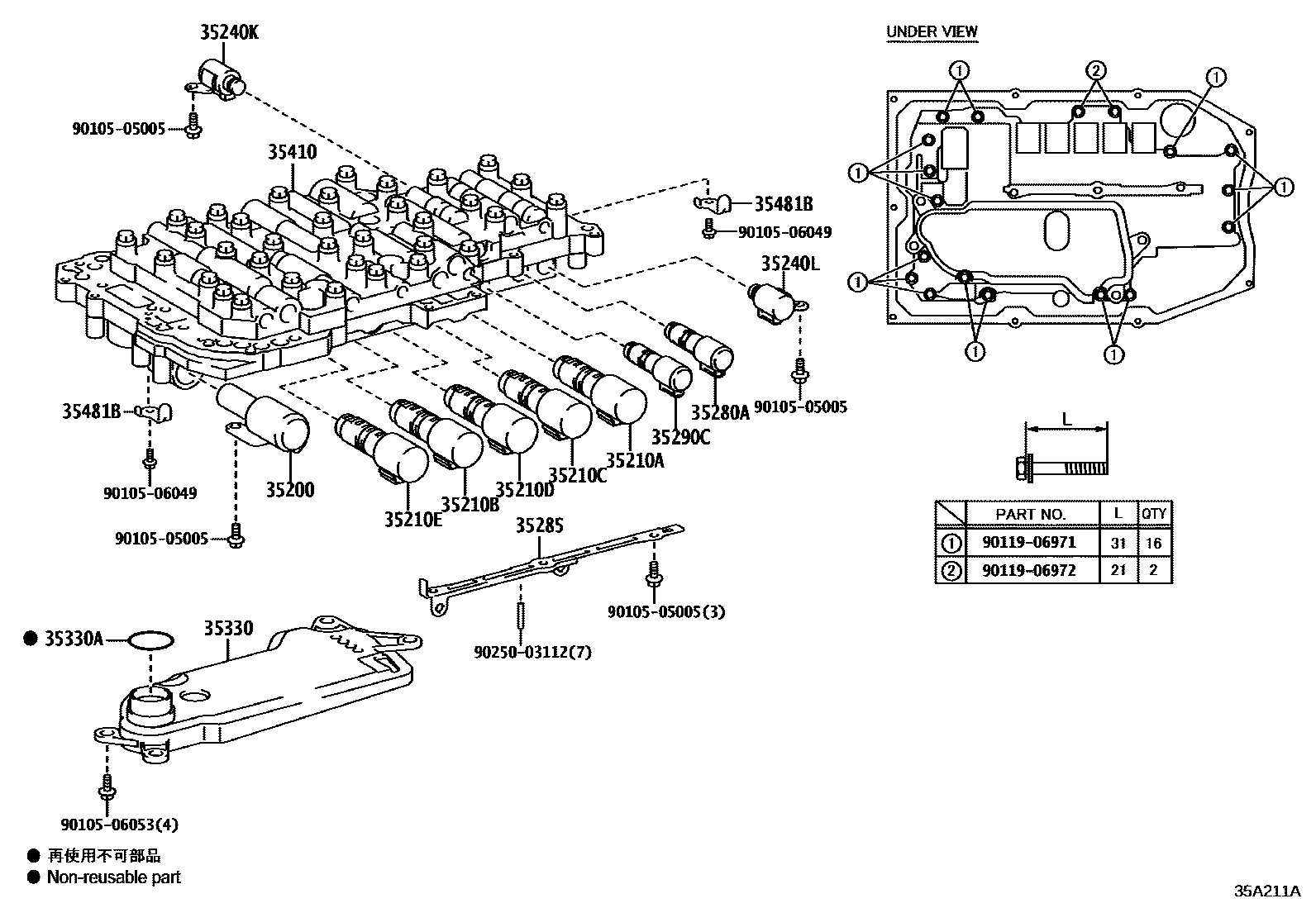

Toyota CROWN/HYBRID — VALVE BODY & OIL STRAINER (ATM)
35200PUMP ASSY, OIL, W/SOLENOID
35210AVALVE, SOLENOID(SL1)
35210BVALVE, SOLENOID(SL3)
35210CVALVE, SOLENOID(SL2)
35210DVALVE, SOLENOID(SL4)
35210EVALVE, SOLENOID(SL5)
35240KSOLENOID ASSY, TRANSMISSION 3WAY(SC1)
35240LSOLENOID ASSY, TRANSMISSION 3WAY(SC2)
35280AVALVE, SOLENOID(SLU)
35285PLATE, SOLENOID LOCK
35290CVALVE, SOLENOID(SLT)
35330STRAINER ASSY, VALVE BODY OIL
35330ARING, O (FOR OIL STRAINER)
35410BODY ASSY, TRANSMISSION VALVE
35481BCLAMP, VALVE BODY WIRE HARNESS
9010505005
9010506049
9010506053
9011906971
9011906972
9025003112
21 parts on this diagram · 2 diagrams in section
