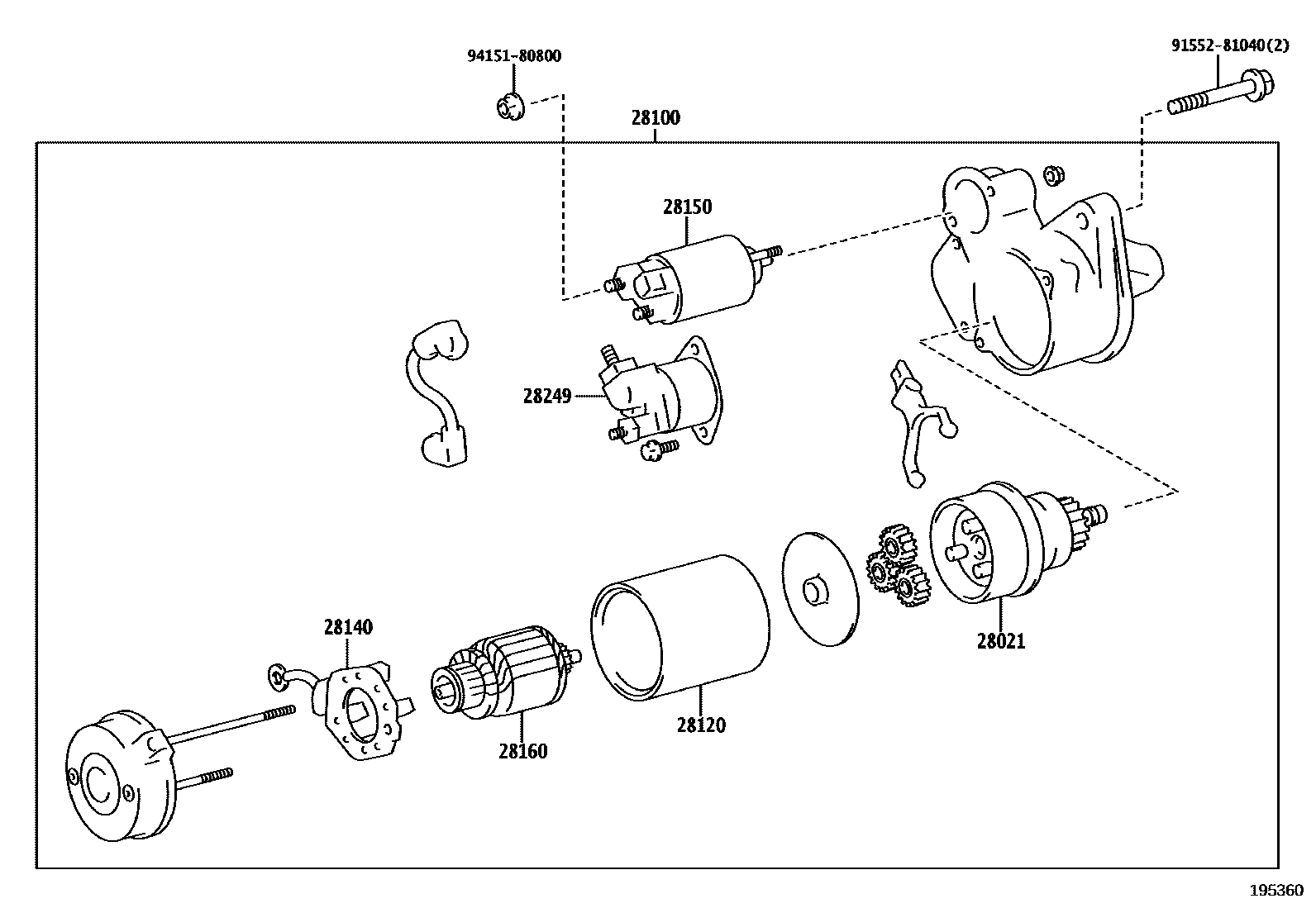

Toyota CROWN/HYBRID — STARTER

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-36140i8ARFTS..ARS220¥5,800201806-202204

28100STARTER ASSY

main28100-36200i8ARFTS..ARS220¥86,800201806-201903

sub28100-36201¥65,700

main28100-36201i8ARFTS..ARS220¥65,700201904-202204

28120YOKE ASSY, STARTER

main28120-36200i8ARFTS..ARS220201806-202204

28140HOLDER ASSY, STARTER BRUSH

main28140-21100i8ARFTS..ARS220201806-202204

28150SWITCH ASSY, MAGNET STARTER

main28150-26190i8ARFTS..ARS220¥10,900201806-202204

28160ARMATURE ASSY, STARTER

main28160-36110i8ARFTS..ARS220¥13,100201806-202204

28249RELAY, STARTER INRUSH CURRENT REDUCTION

main28249-36200i8ARFTS..ARS220¥7,500201806-202204

9155281040

main91552-81040¥120

9415180800

main94151-80800¥80

9 parts on this diagram · 1 diagram in section
