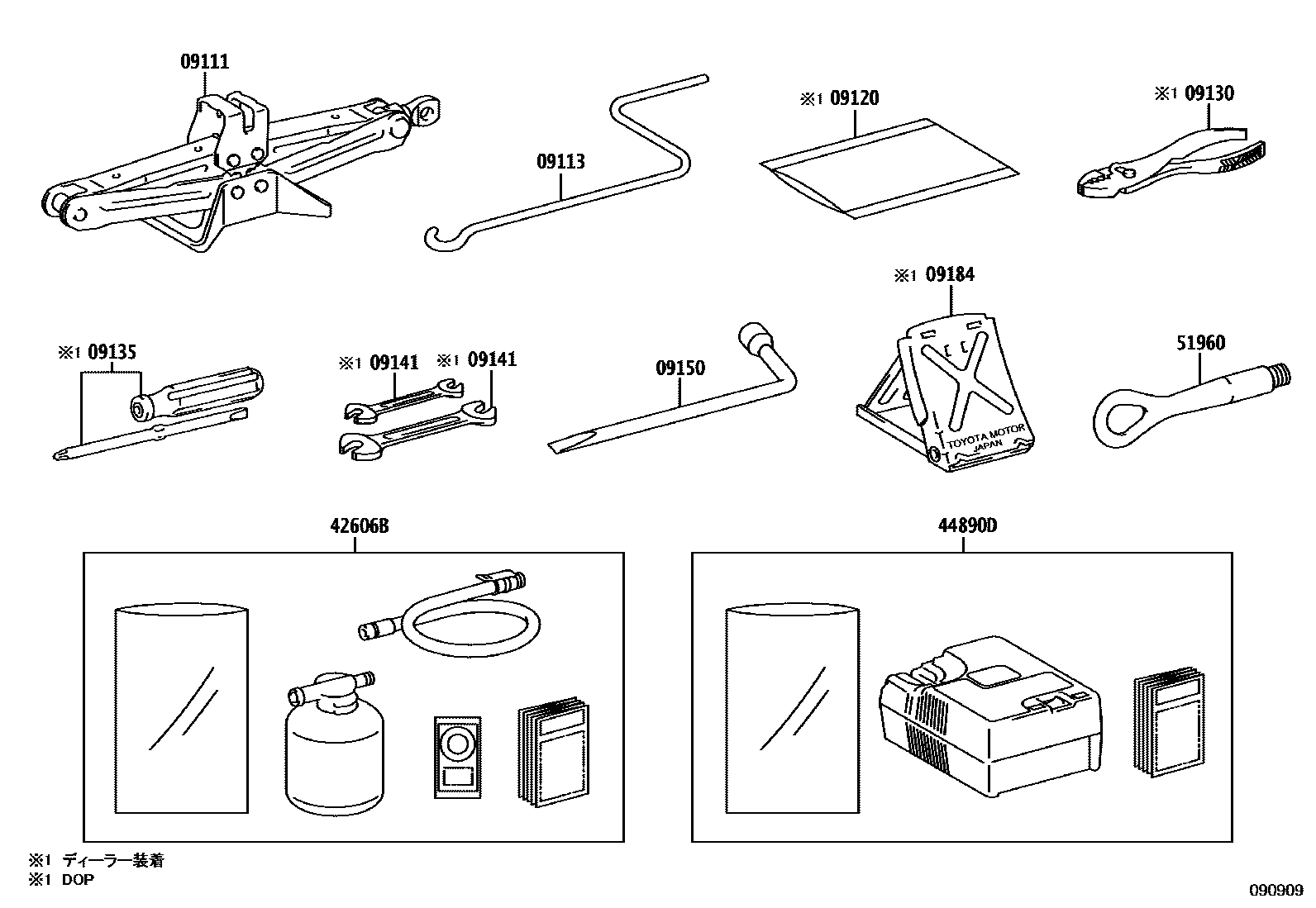

Toyota CROWN/HYBRID — STANDARD TOOL

0001 1 0002 1 0003 1DOP

09111JACK SUB-ASSY

main09111-50140iARS220,AZSH2#,GWS224¥6,200201806-202010

sub09111-50141¥6,200

09113HANDLE, JACK

main09113-30060iARS220,AZSH2#,GWS224¥980201806-202010

09120BAG, TOOL

main09120-28040¥250

09130PLIERS

main99913-11500¥400

09135DRIVER, SCREW

main99915-10700¥460

09141SPANNER

main99914-11214¥400

main99914-10810¥240

09150WRENCH, HUB NUT BOX

main09150-40010iARS220,AZSH2#,GWS224¥1,150201806-202010

09184STOPPER, WHEEL

main09184-00010¥770

42606BREPAIR KIT, TUBELESS TIRE

main42606-30010iARS220,AZSH2#,GWS224¥3,600201806-201811

sub42606-30011¥3,600

main42606-30011iARS220,AZSH2#,GWS224¥3,600201812-202010

sub42606-42080¥3,600

main42606-30011iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF¥3,600202011-202212

sub42606-42080¥3,600

main42606-42080iARS220,AZSH21..RS,RSB¥3,600202301

44890DCOMPRESSOR ASSY, AIR

main44890-12011iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF¥7,500202108-202212

sub44890-42050¥7,500

main44890-30030iARS220,AZSH2#,GWS224¥7,500201806-202107

sub44890-30031¥7,500

main44890-42050iARS220,AZSH21..RS,RSB¥7,500202301

51960HOOK ASSY, FRONT

main51961-11030iARS220,AZSH2#,GWS224¥1,860201806-202204

11 parts on this diagram · 3 diagrams in section
