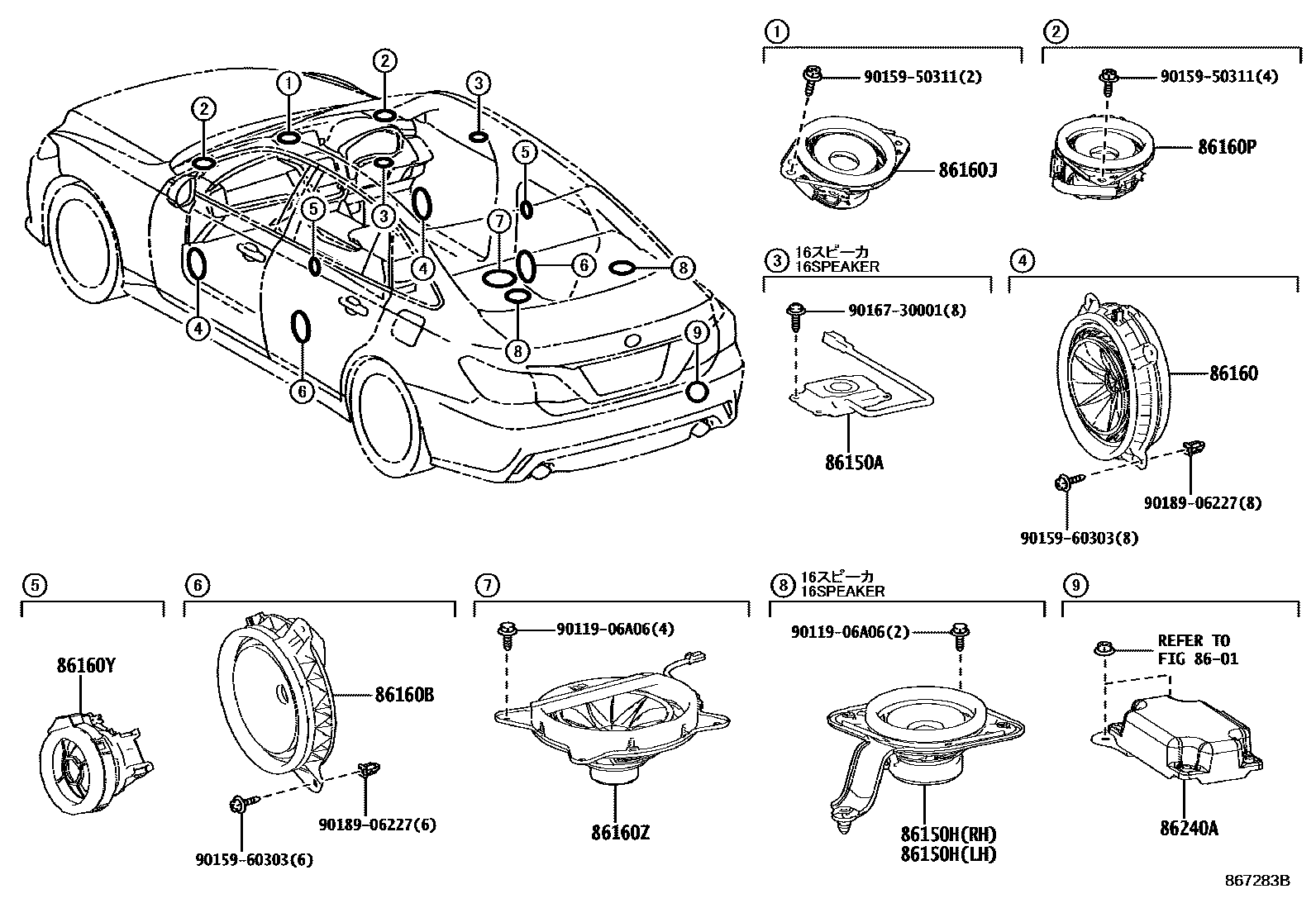

Toyota CROWN/HYBRID — SPEAKER

0001 1 0002 1

8601

86150ASPEAKER ASSY, W/BRACKET, NO.2

86150HSPEAKER ASSY, W/BRACKET

86160SPEAKER ASSY, FRONT NO.1

main86160-30E70iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF¥6,300202011-202204

main86160-30E70iARS220,AZSH21..RS,RSB¥6,300202011

main86160-30E70iARS220,AZSH2#,GWS224¥6,300201806-202010

86160BSPEAKER ASSY, REAR

main86160-30E00iARS220,AZSH2#,GWS224¥6,300201806-202010

main86160-30E00iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF¥6,300202011-202204

main86160-30E00iARS220,AZSH21..RS,RSB¥6,300202011

86160JSPEAKER ASSY, FRONT NO.3

main86160-30E80iARS220,AZSH2#,GWS224¥9,500201806-202010

main86160-30E80iAZSH20..G,RS,RSADV,S;ARS220,AZSH21,GWS224..GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF¥9,500202011-202204

main86160-30E80iARS220..RS¥9,500202011

86160PSPEAKER ASSY, FRONT NO.2

main86160-30E80iARS220,AZSH21..RS,RSB¥9,500202011

main86160-30E80iARS220,AZSH2#,GWS224¥9,500201806-202010

main86160-30E80iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF¥9,500202011-202204

86160YSPEAKER ASSY, REAR NO.2

main86160-30F00iAZSH20..G,RS,RSADV,S;ARS220,AZSH21,GWS224..GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF¥5,800202011-202204

main86160-30F00iARS220..RS¥5,800202011

main86160-30F00iARS220,AZSH2#,GWS224¥5,800201806-202010

86160ZSPEAKER ASSY, REAR NO.3

main86150-30600iARS220..RS¥11,700202011

main86150-30600iARS220,AZSH2#,GWS224¥11,700201806-202010

main86150-30600iAZSH20..G,RS,RSADV,S;ARS220,AZSH21,GWS224..GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF¥11,700202011-202204

86240AEQUALIZER ASSY,STEREO COMPONENT

main86240-30050iAZSH21..B;AZSH20..B,RSB¥31,500202011-202204

�^�C�v�@�`

main86240-30050iAZSH21..RSB¥31,500202011

�^�C�v�@�`

main86240-30100iARS220,AZSH2#,GWS224¥20,800201806-202010

main86240-30100iAZSH20..G,RS,RSADV,S;ARS220,AZSH21,GWS224..GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF¥20,800202011-202204

�^�C�v�@�`

main86240-30100iARS220..RS¥20,800202011

�^�C�v�@�`

9011906A06

main90119-06A06¥60

9015950311

main90159-50311¥70

9015960303

main90159-60303¥70

9016730001

main90167-30001¥60

9018906227

main90189-06227¥70

15 parts on this diagram · 2 diagrams in section
