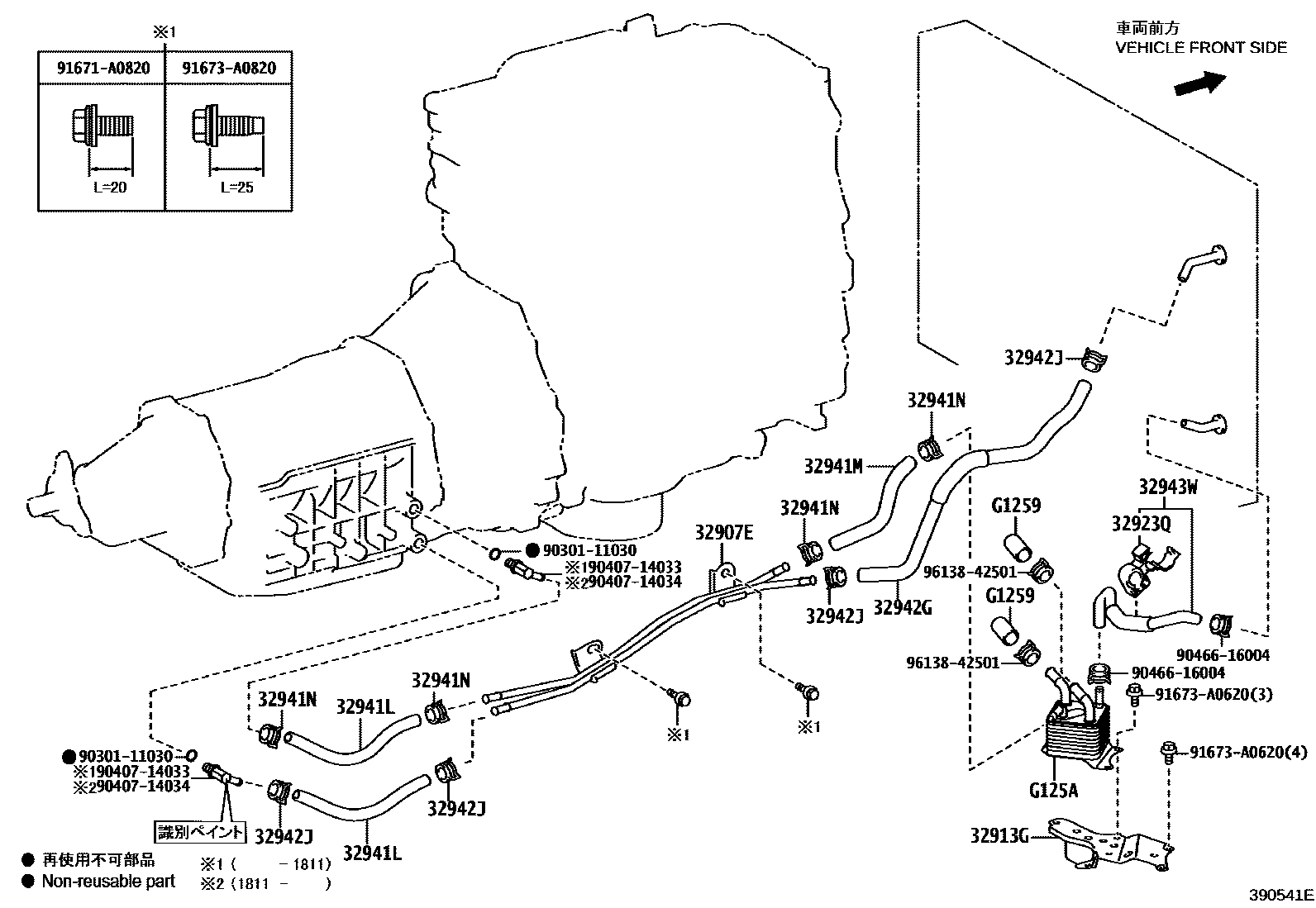

Toyota CROWN/HYBRID — OIL COOLER & TUBE (HEV OR BEV OR FCEV)

0001 1 0002 1 0003 1 0004 1 0005 1

32907ETUBE SUB-ASSY, OIL COOLER W/O HOSE

main32907-11010iGWS224¥2,670201806-202010

main32907-11010iGWS224¥2,670202011-202204

main32907-30100iAZSH2#¥3,230201806-202007

main32907-30140iAZSH2#¥2,090202007-202010

main32907-30140iAZSH20;AZSH21..B,GEXEF,GF,RSADF,RSF,SF¥2,090202011-202204

main32907-30140iAZSH21..RSB¥2,090202011

32913GBRACKET, TRANSMISSION OIL COOLER

main32913-11010iGWS224¥3,200201806-202010

main32913-11010iGWS224¥3,200202011-202204

main32913-30060iAZSH20¥2,880201806-202006

main32913-30070iAZSH21¥2,340201806-202006

32923QCLAMP, OIL COOLER TUBE

main32923-50110iAZSH2#,GWS224¥410201806-202010

main32923-50110iAZSH20,GWS224;AZSH21..B,GEXEF,GF,RSADF,RSF,SF¥410202011-202204

main32923-50110iAZSH21..RSB¥410202011

32941LHOSE, OIL COOLER INLET, NO.1

main32941-11010iGWS224¥1,080202011-202204

main32941-11010iGWS224¥1,080201806-202010

main32941-30420iAZSH2#¥820201806-202010

main32941-30420iAZSH20;AZSH21..B,GEXEF,GF,RSADF,RSF,SF¥820202011-202204

main32941-30420iAZSH21..RSB¥820202011

32941MHOSE, OIL COOLER INLET, NO.2

main32941-11020iGWS224¥980202011-202204

main32941-11020iGWS224¥980201806-202010

main32941-30430iAZSH21¥1,220202006-202007

main32941-30430iAZSH20¥1,220201806-202007

main32941-30440iAZSH21¥1,350201806-202006

main32941-30460iAZSH2#¥2,130202007-202010

main32941-30460iAZSH20;AZSH21..B,GEXEF,GF,RSADF,RSF,SF¥2,130202011-202204

main32941-30460iAZSH21..RSB¥2,130202011

32941NCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004iAZSH20;AZSH21..B,GEXEF,GF,RSADF,RSF,SF¥180202011-202204

main90466-16004iAZSH2#¥180201806-202010

main90466-16004iAZSH21..RSB¥180202011

32942GHOSE, OIL COOLER OUTLET, NO.1

main32942-11010iGWS224¥1,140202011-202204

main32942-11010iGWS224¥1,140201806-202010

main32942-30300iAZSH21¥2,110202006-202010

main32942-30300iAZSH20¥2,110201806-202010

main32942-30300iAZSH20;AZSH21..B,GEXEF,GF,RSADF,RSF,SF¥2,110202011-202204

main32942-30300iAZSH21..RSB¥2,110202011

main32942-30310iAZSH21¥2,800201806-202006

32942JCLIP, NO.2(FOR OIL COOLER HOSE)

main90466-16004iAZSH2#¥180201806-202010

main90466-16004iAZSH20;AZSH21..B,GEXEF,GF,RSADF,RSF,SF¥180202011-202204

main90466-16004iAZSH21..RSB¥180202011

32943WHOSE, TRANSMISSION OIL COOLER

main32943-30300iGWS224¥1,720201806-202010

main32943-30300iGWS224¥1,720202011-202204

main32943-30310iAZSH20¥2,070201806-202007

main32943-30310iAZSH21¥2,070202006-202007

main32943-30320iAZSH21¥2,070201806-202006

G1259RUBBER, MOTOR COOLING PIPE

mainG125930020iAZSH2#201806-202006

G125ACOOLER, MOTOR COOLING

mainG125A11010iGWS224201806-202010

mainG125A11010iGWS224202011-202204

mainG125A30010iAZSH20201806-202006

mainG125A30020iAZSH21201806-202006

9030111030

main90301-11030¥140

9040714033

main90407-14033¥570

9040714034

main90407-14034¥430

9046616004

main90466-16004¥180

91671A0820

main91671-A0820¥80

91673A0620

main91673-A0620¥60

91673A0820

main91673-A0820¥80

9613842501

main96138-42501¥180

19 parts on this diagram · 5 diagrams in section
