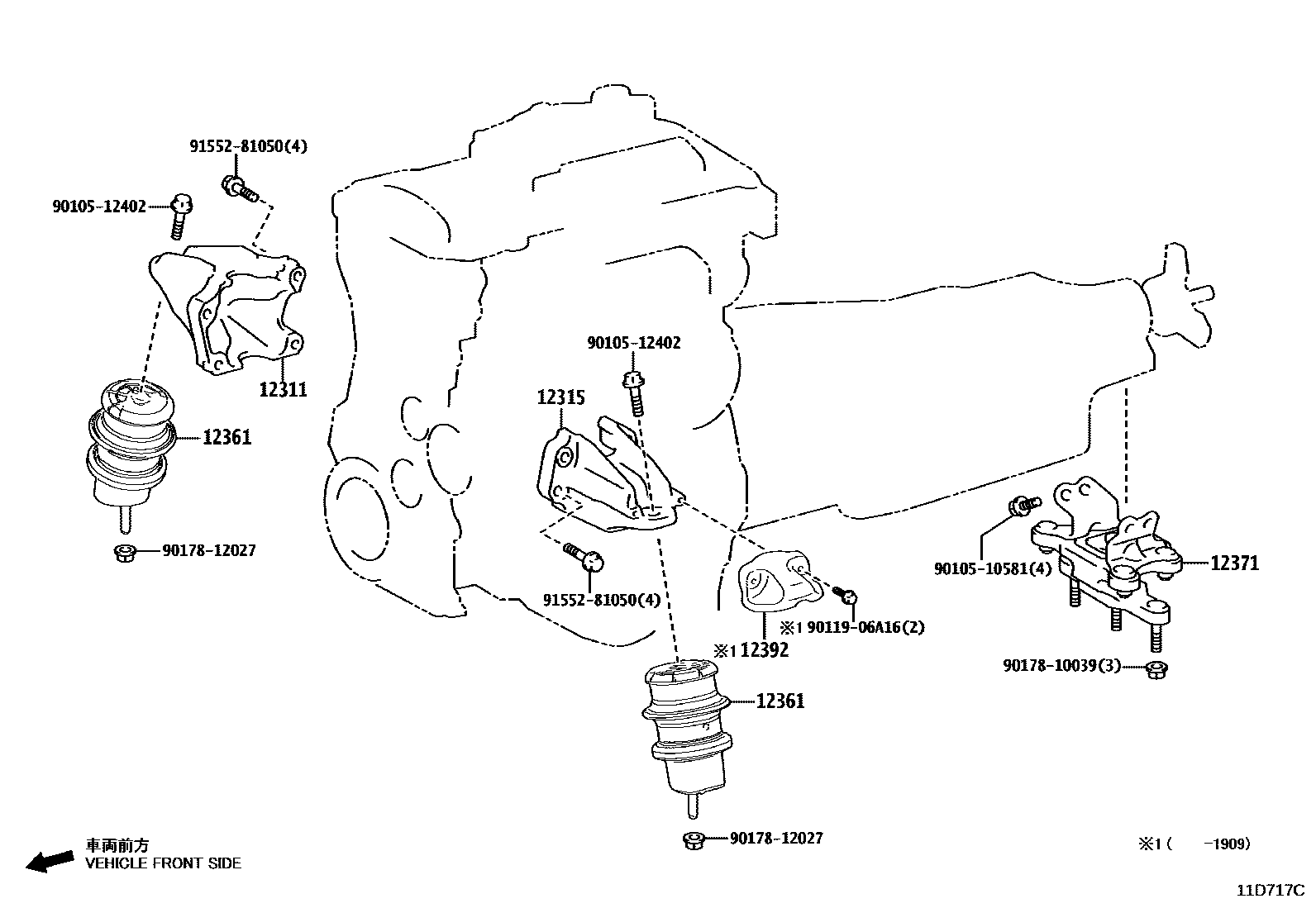

Toyota CROWN/HYBRID — MOUNTING

0001 1 0002 1 0003 1 0004 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-31230i8GRFXS..GWS224¥4,780201806-202204

main12311-36180i8ARFTS..ARS220..RS¥5,800201806-202204

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-31220i8GRFXS..GWS224¥3,820201806-202204

main12315-36060i8ARFTS..ARS220..RSADV¥5,800201806-202204

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-25060iA25AFXS..AZSH20¥8,700201806-202103

sub12361-36240¥7,800

main12361-25070iA25AFXS..AZSH21..B,GEXEF,GF,RSADF,RSF,SF¥8,400201806-202204

main12361-31500i8GRFXS..GWS224¥7,800201806-202204

main12361-36240i8ARFTS..ARS220..RSADV¥7,800201806-202204

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-25030iA25AFXS..AZSH20¥3,750201806-202204

main12371-25040iA25AFXS..AZSH21¥3,410201806-202204

main12371-36230i8ARFTS..ARS220..RSADV¥4,460201806-202204

12392INSULATOR, ENGINE MOUNTING HEAT, FRONT LH

main12391-36020i8ARFTS..ARS220¥490201806-201909

9010510581

main90105-10581¥100

9010512402

main90105-12402¥190

9011906A16

main90119-06A16¥60

9017810039

main90178-10039¥100

9017812027

main90178-12027¥100

9155281050

main91552-81050¥120

11 parts on this diagram · 4 diagrams in section
