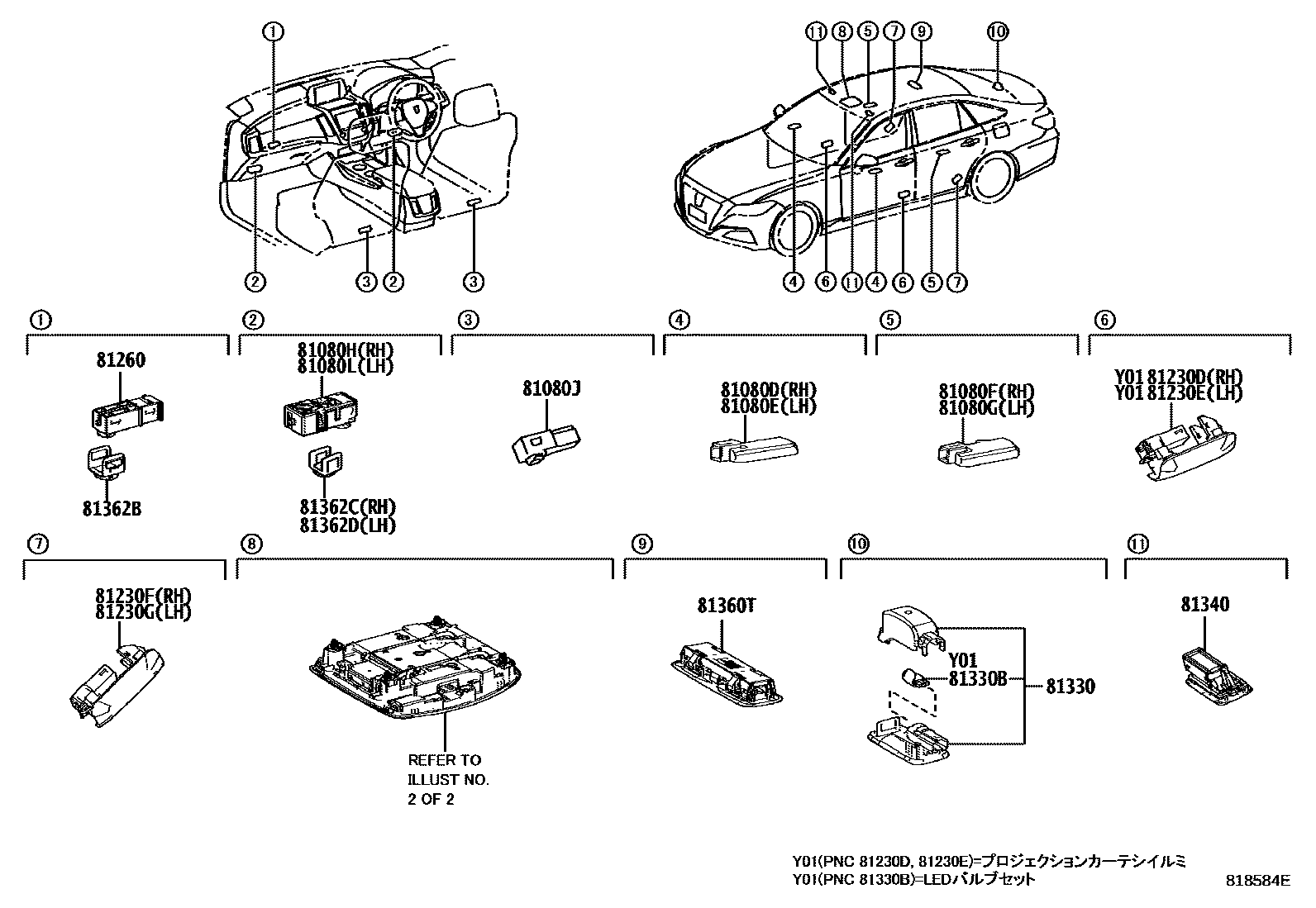

Toyota CROWN/HYBRID — INTERIOR LAMP

0001 1 0002 1

81080DLAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, RH

main81080-30140iARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RSADF,RSADV¥1,410201806-202010

main81080-30140iARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RSADF,RSADV¥1,410202011-202204

81080ELAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, LH

main81080-30150iARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RSADF,RSADV¥1,410201806-202010

main81080-30150iARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RSADF,RSADV¥1,410202011-202204

81080FLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, RH

main81080-30140iARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RSADF,RSADV¥1,410201806-202010

main81080-30140iARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RSADF,RSADV¥1,410202011-202204

81080GLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, LH

main81080-30150iARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RSADF,RSADV¥1,410201806-202010

main81080-30150iARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RSADF,RSADV¥1,410202011-202204

81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81081-60050iARS220,AZSH2#,GWS224¥520201806-202204

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-62010iAZSH21,GWS224..GEXEC,GEXEF¥1,020201806-202204

81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81081-60050iARS220,AZSH2#,GWS224¥520201806-202204

81230DLAMP ASSY, FRONT DOOR COURTESY, RH

main81230-11030iARS220,AZSH2#,GWS224¥1,090201806-202204

81230ELAMP ASSY, FRONT DOOR COURTESY, LH

main81230-11030iARS220,AZSH2#,GWS224¥1,090201806-202204

81230FLAMP ASSY, REAR DOOR COURTESY, RH

main81230-11030iARS220,AZSH2#,GWS224¥1,090201806-202204

81230GLAMP ASSY, REAR DOOR COURTESY, LH

main81230-11030iARS220,AZSH2#,GWS224¥1,090201806-202204

81260LAMP ASSY, GLOVE BOX

main81081-60050iARS220,AZSH2#,GWS224¥520201806-202204

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81250-30210iARS220,AZSH21..RS,RSB¥1,250201806-202204

81330BBULB, LUGGAGE COMPARTMENT LAMP

main99132-12050iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF¥110201806-202204

81340LAMP ASSY, VANITY

main81340-50260iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF¥1,670201806-202204

81360TLAMP ASSY, SPOT

main81360-33070-B3iAZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF202011-202204

LT.GRAY,TRIM1#

main81360-33070-C0iARS220,AZSH2#,GWS224..RSADF,RSADV201806-202204

BLACK,TRIM2#

main81360-33070-C0iAZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF202011-202204

BLACK,TRIM2#,4#

main81360-33070-C0iAZSH21..B,RSF;AZSH20..B,RS,RSB202011-202204

BLACK,TRIM0#,2#

main81360-33070-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM1#,2#,3#,41

main81360-33070-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM2#,3#

main81360-33070-C0iARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF201806-202010

BLACK,TRIM0#,2#,3#,4#,8#

main81360-33070-E0iGWS224..GEXEC,S;ARS220,AZSH2#..B,G,GEXEF,GF201806-202010

NEUTRAL BEIGE,TRIM40

main81360-33070-E0iARS220,AZSH2#..S,SF201806-202010

NEUTRAL BEIGE,TRIM4#

81362BLENS, INTERIOR ILLUMINATION LAMP

main81362-60030iARS220,AZSH2#,GWS224¥140201806-202204

81362CLENS, INTERIOR ILLUMINATION LAMP, RH

main81362-60030iARS220,AZSH2#,GWS224¥140201806-202204

81362DLENS, INTERIOR ILLUMINATION LAMP, LH

main81362-60030iARS220,AZSH21..RS,RSB¥140201806-202204

19 parts on this diagram · 2 diagrams in section
