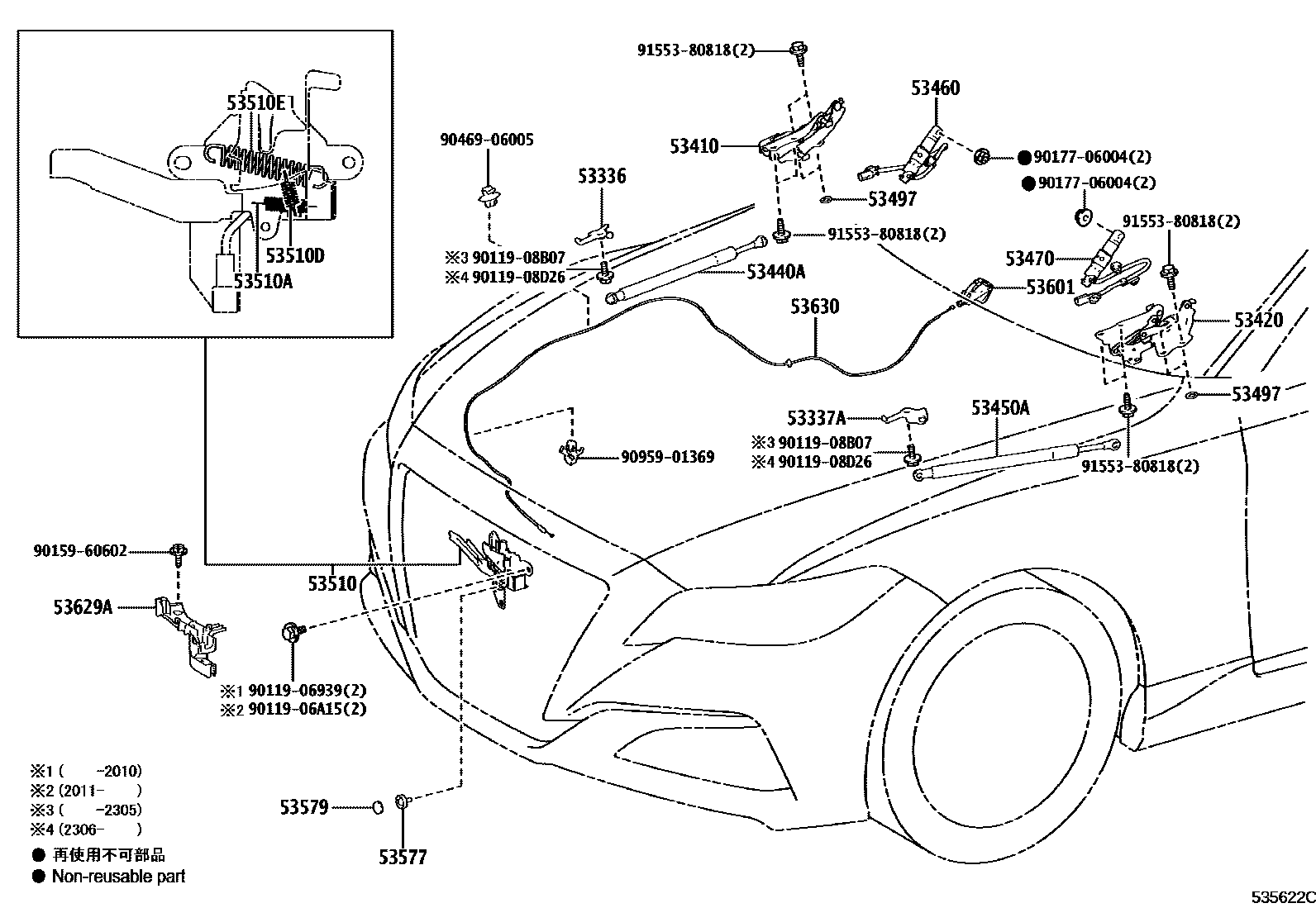

Toyota CROWN/HYBRID — HOOD LOCK & HINGE
53336BRACKET, HOOD STAY, RH
53337ABRACKET, HOOD STAY, LH
53410HINGE ASSY, HOOD, RH
53420HINGE ASSY, HOOD, LH
53440ASUPPORT ASSY, HOOD, RH
53450ASUPPORT ASSY, HOOD, LH
53460LIFTER ASSY, POP UP HOOD, RH
53470LIFTER ASSY, POP UP HOOD, LH
53497PAD, HOOD HINGE, NO.1
53510LOCK ASSY, HOOD
53510ASPRING, TENSION(FOR HOOD LOCK)
53510DSPRING, TENSION(FOR HOOD LOCK)
53510ESPRING, TENSION(FOR HOOD LOCK)
53577BOLT, HOOD LOCK
53579CAP, HOOD LOCK NUT
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
BLACK,TRIM0#,2#,3#,4#,8#
BLACK,TRIM0#,2#
BLACK,TRIM1#,2#,4#
53629ACOVER, HOOD LOCK CONTROL CABLE
53630CABLE ASSY, HOOD LOCK CONTROL
9011906939
9011906A15
9011908B07
9011908D26
9015960602
9017706004
9046906005
9095901369
9155380818
27 parts on this diagram · 1 diagram in section
