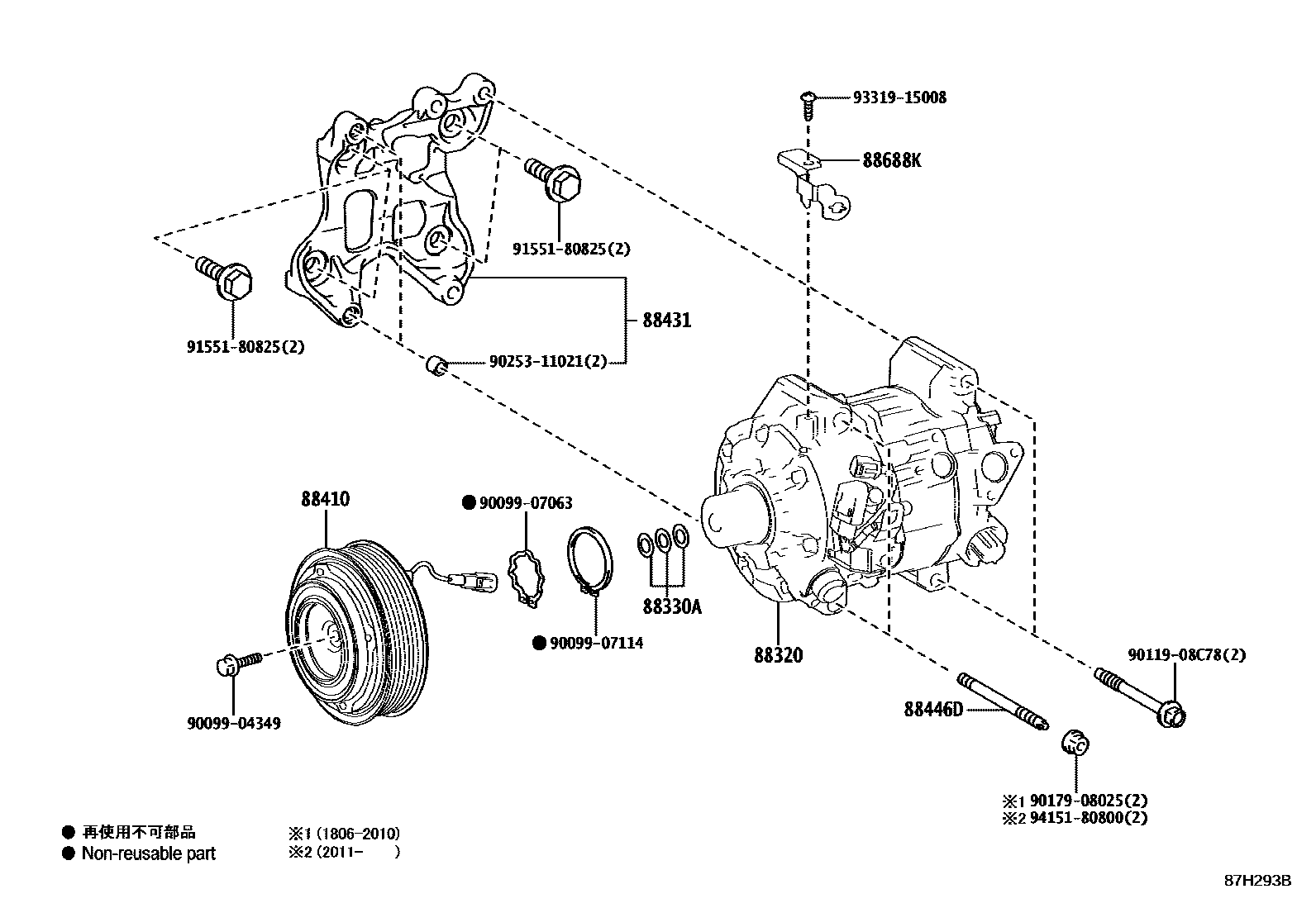

Toyota CROWN/HYBRID — HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0003 1 0005 1

88320COMPRESSOR ASSY, COOLER

main88320-50130iARS220..RSADV201806-202204

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iARS220..RSADV201806-202204

88410CLUTCH ASSY, MAGNET

main88410-0N010iARS220¥27,300201806-202204

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main12502-36031iARS220..RS¥4,760201806-202204

main88431-11010iGWS224201806-202204

main88431-30640iAZSH20;AZSH21..B,GEXEF,GF,RSADF,RSF,SF201806-202204

88446DBOLT, COOLER

main88446-60050iARS220..RS¥0201806-202204

main88899-44010iAZSH20,GWS224;AZSH21..B,GEXEF,GF,RSADF,RSF,SF201806-202204

88688KBRACKET, COOLER COMPRESSOR

main88688-33570iARS220¥0201806-202204

9009904349

main90099-04349

9009907063

main90099-07063

9009907114

main90099-07114

9011908C78

main90119-08C78¥0

9017908025

main90179-08025¥80

9025311021

main90253-11021¥120

9155180825

main91551-80825¥80

9331915008

main93319-15008¥170

9415180800

main94151-80800¥80

15 parts on this diagram · 3 diagrams in section
