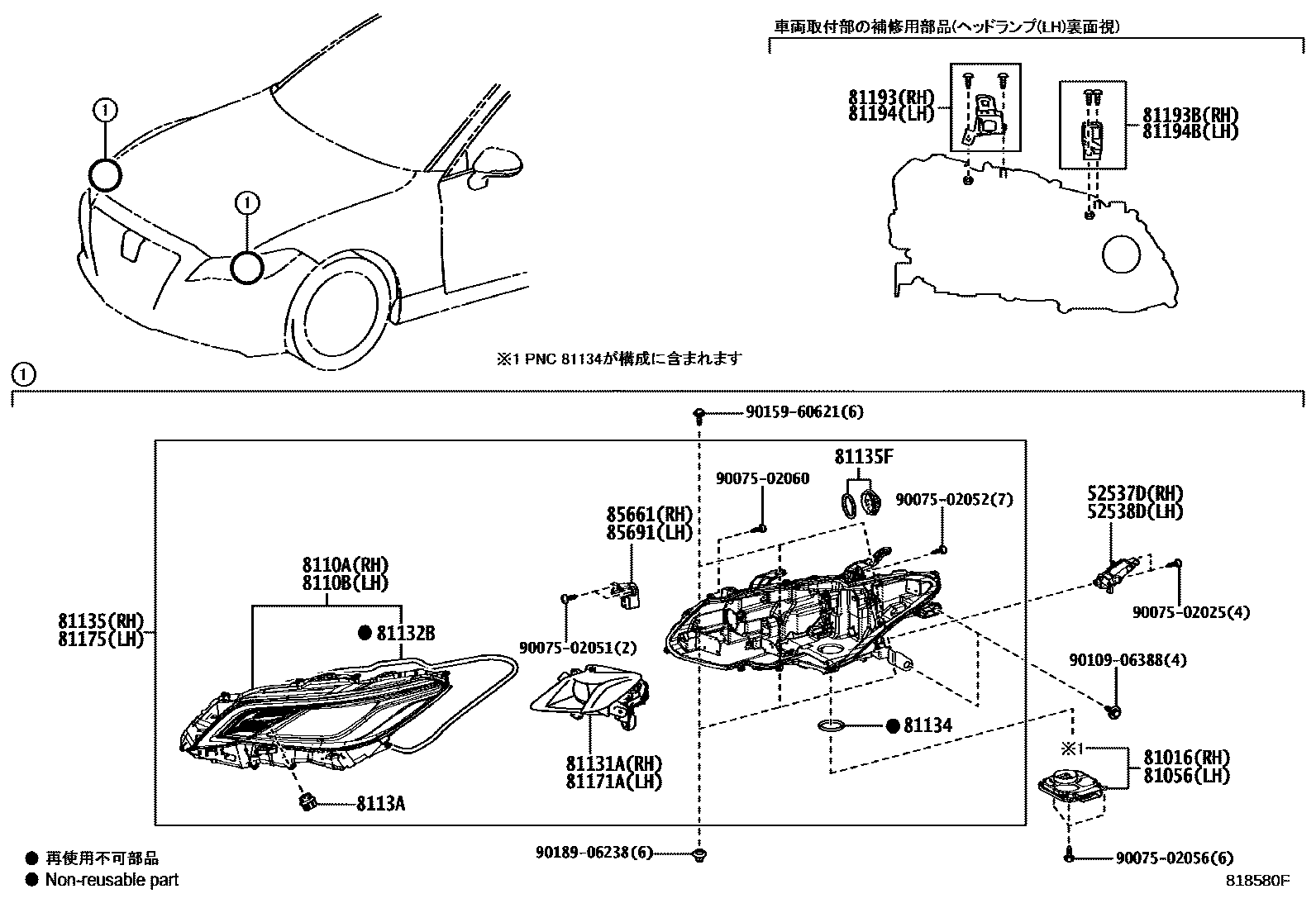

Toyota CROWN/HYBRID — HEADLAMP

0001 1 0002 1

52537DRETAINER, FRONT BUMPER END, RH

main52537-30050iARS220,AZSH2#,GWS224¥1,410201806-202204

52538DRETAINER, FRONT BUMPER END, LH

main52538-30020iARS220,AZSH2#,GWS224¥1,410201806-202204

81016COMPUTER SUB-ASSY, HEADLAMP, RH NO.1

main81016-30K50iARS220,AZSH2#,GWS224..B,RSB,S,SF¥14,400201806-202204

main81016-30M50iARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF¥29,800201806-202010

main81016-30P10iAZSH20..G,RS,RSADV;ARS220,AZSH21,GWS224..GEXEC,GEXEF,GF,RSADF,RSADV,RSF¥24,800202011-202204

81056COMPUTER SUB-ASSY, HEADLAMP, LH NO.1

main81056-30K50iAZSH21..B,SF;AZSH20..B,RSB,S¥14,400201806-202204

main81056-30M50iARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF¥29,800201806-202010

main81056-30P10iAZSH20..G,RS,RSADV;ARS220,AZSH21,GWS224..GEXEC,GEXEF,GF,RSADF,RSADV,RSF¥24,800202011-202204

8110ALENS SUB-ASSY, HEADLAMP, RH

main8110A-30K50iAZSH21..RSB¥33,200201806-202204

main8110A-30M50iARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF¥99,400201806-202010

main8110A-30M60iARS220..RS¥89,000201806-202204

8110BLENS SUB-ASSY, HEADLAMP, LH

main8110B-30K50iARS220,AZSH2#,GWS224..B,RSB,S,SF¥33,200201806-202204

main8110B-30M50iARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF¥99,400201806-202010

main8110B-30M60iARS220..RS¥89,000201806-202204

81131AUNIT, HEADLAMP, RH

main81130-30K50iAZSH21..B,SF;AZSH20..B,RSB,S¥27,900201806-202204

main81130-30M50iAZSH20..G,RS,RSADV;ARS220,AZSH21,GWS224..GEXEC,GEXEF,GF,RSADF,RSADV,RSF¥124,000201806-202204

81132BGASKET, HEADLAMP LENS

main81132-50590iARS220,AZSH2#,GWS224¥2,230201806-202204

81134GASKET, HEADLAMP

main90075-23003iARS220,AZSH2#,GWS224¥200201806-202204

81135UNIT ASSY, HEADLAMP, RH

main81145-30K50iARS220,AZSH2#,GWS224..B,RSB,S,SF¥104,000201806-202204

main81145-30M50iARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF¥315,000201806-202010

main81145-30M60iARS220..RS¥274,000201806-202204

81135FCOVER, HEADLAMP BACK

main90075-66016iARS220,AZSH2#,GWS224¥610201806-202204

8113ALED, HEADLAMP FRONT TURN SIGNAL

main81536-12D30iAZSH2#..B,RSB,S,SF¥3,670202011

81171AUNIT, HEADLAMP, LH

main81170-30K50iAZSH21..RSB¥27,900201806-202204

main81170-30M50iARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF¥124,000201806-202204

81175UNIT ASSY, HEADLAMP, LH

main81185-30K50iAZSH21..B,SF;AZSH20..B,RSB,S¥104,000201806-202204

main81185-30M50iARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF¥315,000201806-202010

main81185-30M60iAZSH20..G,RS,RSADV;ARS220,AZSH21,GWS224..GEXEC,GEXEF,GF,RSADF,RSADV,RSF¥274,000201806-202204

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-30130iARS220,AZSH2#,GWS224¥750201806-202204

81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

main81195-30090iARS220,AZSH21..RS,RSB¥700201806-202204

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-30130iARS220,AZSH2#,GWS224¥750201806-202204

81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

main81196-30090iARS220,AZSH2#,GWS224¥700201806-202204

85661MOTOR, HEADLAMP LEVELING, RH

main85661-48050iARS220,AZSH2#,GWS224..B,RSB,S,SF¥3,710201806-202204

main85661-48060iAZSH20..G,RS,RSADV;ARS220,AZSH21,GWS224..GEXEC,GEXEF,GF,RSADF,RSADV,RSF¥10,500201806-202204

85691MOTOR, HEADLAMP LEVELING, LH

main85661-48050iARS220,AZSH2#,GWS224..B,RSB,S,SF¥3,710201806-202204

main85691-48010iARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF¥10,500201806-202204

9007502025

main90075-02025¥70

9007502051

main90075-02051¥60

9007502052

main90075-02052¥60

9007502056

main90075-02056¥60

9007502060

main90075-02060¥60

9010906388

main90109-06388¥70

9015960621

main90159-60621¥60

9018906238

main90189-06238¥100

28 parts on this diagram · 2 diagrams in section
